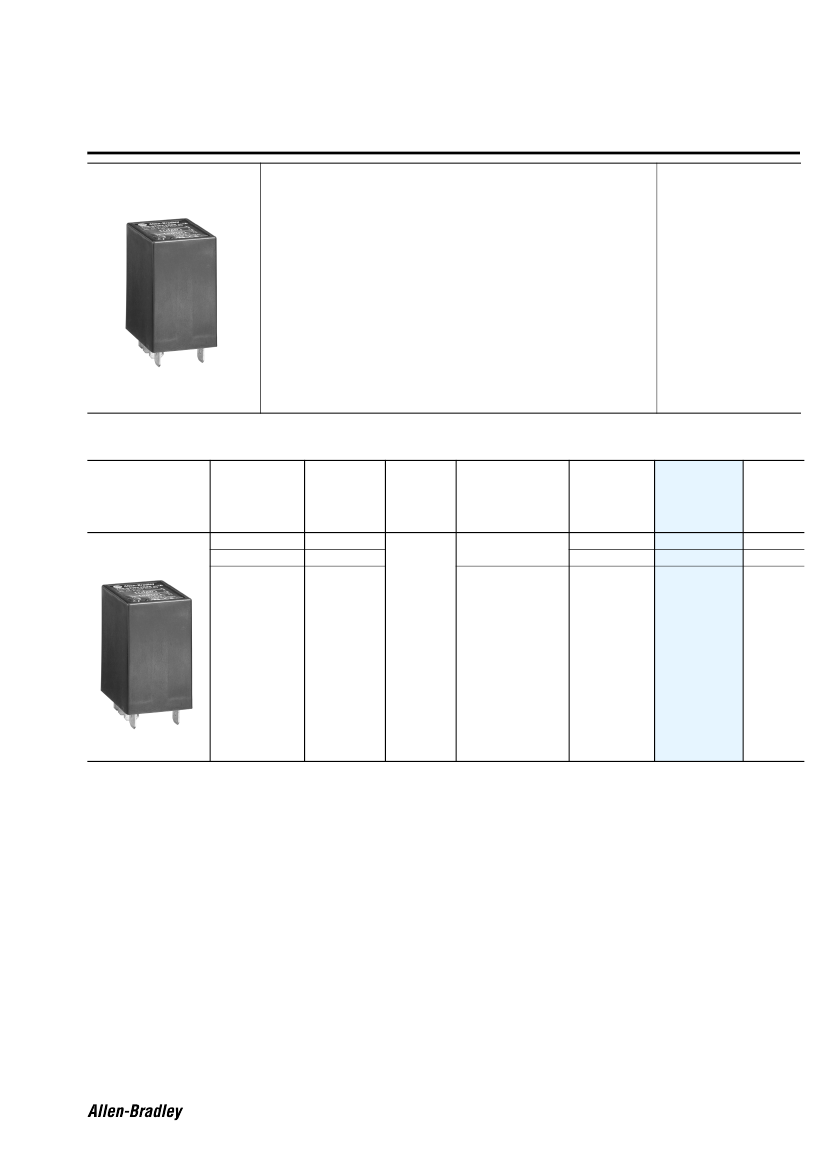

3 A (resistive) Max. Continuous Load (Output) Current
264V AC or 52.8V DC Max. Load Voltage Range
4…24V DC Control/Input Voltage
Photocoupler or Phototriac Isolation Option Between Control and Output Voltage
LED Indicator for Input/Logic ON/OFF Status Monitoring
700-HN116 Socket Compatible
Table Of Contents
Product Selection . . . . . . . 47
Accessories . . . . . . . . . . . . 48
Specifications . . . . . . . . . . 49
Approximate
Dimensions . . . . . . . . . . . . 50
Input-to-Output
Isolation Method
Photocoupler
Phototriac
Zero Cross
Function
Yes
No
LED
Indicator
Rated Output (Load)
Max. Current and
Voltage Range
Rated
Input Control
Voltage
5…24V DC
24V DC
Cat. No.
Factory-
stocked
Item
(Single
Pack)
✔
✔
3 A at 100…240V AC
700-SFZY3Z25
700-SFTY3Z24
Photocoupler
N/A
Yes
3 A at 4…48V DC
4…24V DC
700-SFNY3Z25
✔
47
Bulletin 700-SF
Solid-State Relays

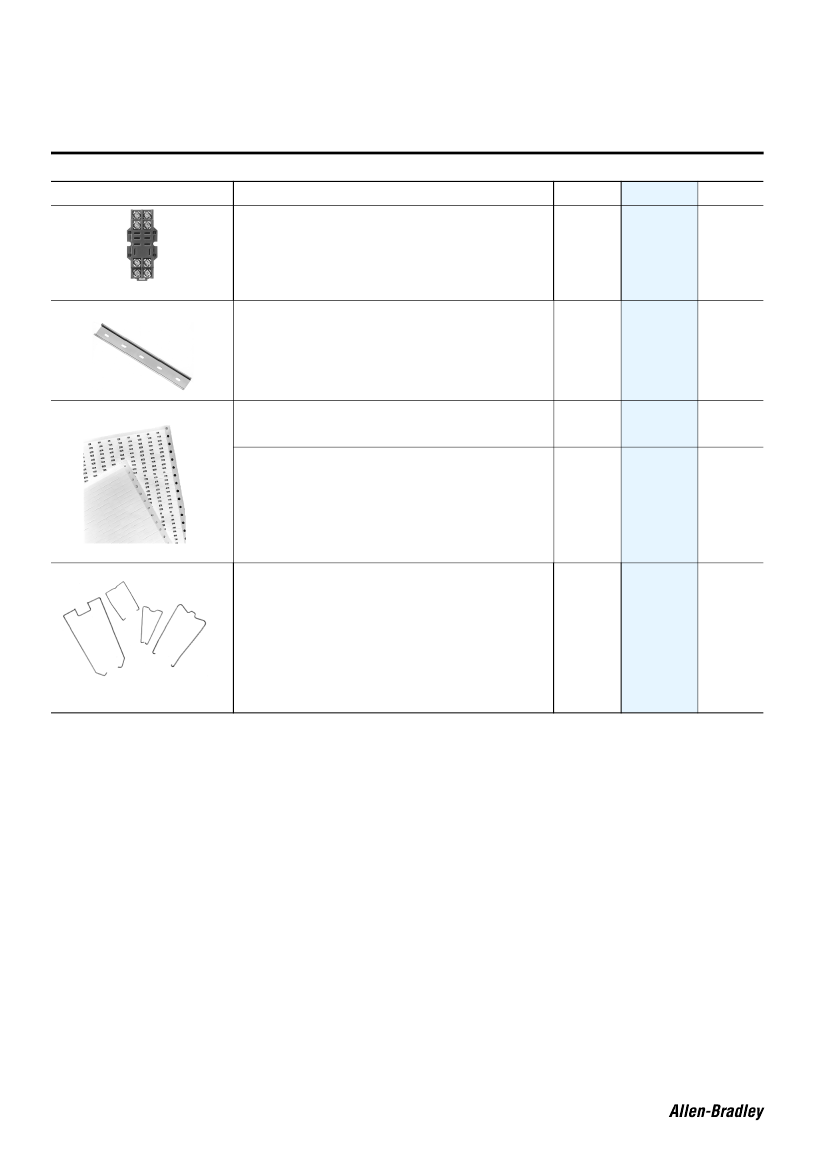

Accessories
Description
Pkg. Qty.
Cat. No.
Factory-
stocked Item
Screw Terminal Socket — Panel or DIN Rail Mounting
8-blade miniature socket for use with DPDT HF relays. Order must be for
10 sockets or multiples of 10.
Cat. No 700-HN116
10
700-HN116
✔
DIN Rail Mounting Pack
Standard 35 x 7.5 mm DIN Rail, 1 meter long, 10 rails per package. Order
must be for 10 rails or multiples of 10.
Cat No. 199-DR1
10
199-DR1
✔
Pre-printed identification tags —
contains 10 sheets of pre-printed and
blank tags. Each sheet contains 13 sets of the markings CR…9CR,
TR…9TR, M…9M, F, R, 1S, and 117 blank tags. Tags are peel-off with
sticky backing for easy placement on relays.
10
700-N40
✔
Blank identification tags —
contains 10 sheets of blank identification
tags for customer specialized printing. Each sheet contains 546 blank
tags. Tags are peel-off with sticky backing for easy placement on relays.
10
700-N41
✔
Retainer Clip for Cat. No. 700-HN103 and -HN128 Sockets with
700-SF Relays and Cat. No. 700-HN116 Sockets
Secures relay in socket. Order must be for 10 clips or multiples of 10.
10
700-HN114B➊
✔
Sample Retainer Clips
➊
Bulletin 700-SF must use 700-HN114 series B retainer clip.
48
Bulletin 700-SF
Solid-State Relays
Specifications
Control/Input Ratings
Cat. No.
700-SFZY3Z25
700-SFTY3Z24
700-SFNY3Z25
Rated
Control
Voltage
5…24V DC
24V DC
5…24V DC
Operating
Control Voltage Range
4…28V DC
19.2…28.8V DC
4…28V DC
Control Voltage Levels
Impedance
15 mA max.
➊
2 kΩ
±
20%
1.5 kΩ + 20%/–10%
➋
Pick-up Voltage
4V DC max.
19.2V DC max.
4V DC max.
Drop-out
Voltage
1V DC min.
1V DC min.
1V DC min.
Load/Output Ratings
Applicable Load
Cat. No.
—
700-SFZY3Z25
700-SFTY3Z24
700-SFNY3Z25
Cat. No.
Load Switching Method/Device
Pick-up time
Drop-out time
Output ON voltage drop
Output Leakage current
Output
V
DRM
V
CEO
(V)
Output
di/dt (A/uS)
Output
dv/dt (V/uS)
Output
I
2
t (A
2
S)
Output
Tj (°C) (max.)
Insulation resistance
Dielectric strength
Vibration resistance (max.)
Shock resistance (max.)
Ambient
temperature
Ambient humidity
Standards
Weight
➊
➋
➌
➍
Rated Load
Voltage
—
100…240V AC
4…48V DC
700-SFZY3Z25
Triac
Load Voltage
Range
—
75…264V AC
3…52.8V DC
Characteristics
Continuous Load
Current (Resistive)
Min.
0.1 A
0.1 A
0.1 A
700-SFTY32...
Transistor
1 ms max.
Max.➍
3A
3A
3A
Max. Inrush
Current
➌
—
45 A @50/60 Hz, 1 cycle
18 A (10 ms)
700-SFNY3Z25
1/2 cycle of load power source +
1 ms max.
1.6V (RMS) max.
5 mA max. (at 100V AC);
10 mA max. (at 200V AC)
600
50
250
18
125
0.5 ms max.
2 ms max.
1.5V max.
5 mA max. (at 50V DC)
80
—
—
—
150
1/2 of output switching element cycle of load power source + 1 ms max.
2.5 mA max. (at 100V AC);
5 mA max. (at 200V AC)
600
50
250
18
125
100 MΩ min. (at 500V DC)
1,500V AC, 50/60 Hz for 1 min.
10…55 Hz, 1.5 mm double amplitude (10 G)
1,000 m/s
2
(100 G)
Operating: –30…80°C (–22…176°F) with no icing or condensation
Storage: –30…100°C (–22…212°F) with no icing or condensation
45…85% (no condensation)
UL508, CSA C22.2, CE
Approx. 50 g
With constant current input circuit system, SSR impedance varies with a change in input voltage.
Input impedance reaches its maximum at the operating voltage.
If the SSR operation is continuous ON/OFF, this value should be reduced by 50%. Refer to the “Inrush Current Resistivity” graphs on page 50 for more details.
Refer to "Load Current vs. Ambient Temperature Characteristics" on page 50 for additional load current details.
49
Bulletin 700-SF
Solid-State Relays
Specifications, Continued/Approximate Dimensions
Note: These data are non-repetitive. Keep the inrush current to half the rated value if it occurs repetitively. Inrush current resistivity is the ability of an SSR to
withstand a large surge current for a short period of time. Surges are considered non-repetitive (max. repeatability once every 2…5 seconds). Keep the inrush
current to half the rated value if it occurs repetitively. Exceeding the non-repetitive inrush current will damage the SSR.
Load Current vs. Ambient
Temperature Characteristics
Inrush Current Resistivity
➊
Inrush Current Resistivity
➊
700-SF
700-SFZ… 700-SFT…
700-SFN…
Inrush current (A, Peak)
Load current (A)
Ambient temperature (°C)
Energizing time (ms)
Inrush current (A)
Energizing time (ms)
➊
Inrush current resistivity is the ability of an SSR to withstand a large surge current for a short period of time. Surges are considered non-repetitive (max.
repeatability once every 2…5 seconds). Keep the inrush current to half the rated value if it occurs repetitively. Exceeding the non-repetitive inrush current will
damage the SSR.
Approximate Dimensions
All units are in millimeters unless otherwise indicated. Dimensions are not intended for manufacturing purposes.
Terminal Arrangement/
Internal Connections
(Bottom View)
1
28 max.
3
5
21.5 max.
36.5 max.
42.5 max.
–
Input voltage
7
–
Load
2
4(+)
6(–)
(–)
Input
8
+
+
Load
(+)
Note:
1. The plus and minus symbols
shown in the parentheses
are for DC loads.
2. The coil has no polarity.
Note: The 700-SF is compatible with the 700-HN116 socket.
Basic Application Considerations of Bulletin 700-SF
High Density Mounting of Multiple SSRs
If multiple SSRs are mounted side by side be aware that the outer case wall of the SSR acts as a radiator. The SSR case serves to dissipate heat. Install the
relays so that they are adequately ventilated. If poor ventilation is unavoidable, reduce the load current by half.
Connection
For DC load switching, the 700-SF SSR will operate properly if the load is connected to either the positive or negative load terminals.
Protective Component To Extend SSR Life
When controlling AC inductive loads, connect an inrush/surge absorbing device (varistor) across the SSR load terminals. If the SSR has built-in surge
suppression (Bulletins 700-SE and 700-SH) and additional surge suppression is required, connect the varistor across the terminals of the load device . Select
a varistor that meets the conditions of the load voltage outlined in the table below.
Load Voltage
100…120V AC
200…240V AC
380…480V AC
Varistor Voltage
240…270 V
440…470 V
820…1000 V
1000 A min.
Varistor Surge Resistance
Note: For additional details applying solid-state relays, refer to pub. number 700-AT001A-EN-E, Solid-State Relay Application Guide. Document available at
