Type 7P
55 °C Photoflash, High-Energy, Long Life, Aluminum
High Energy, Long-Life
Snapmount or Solder-Lug Terminals
Rugged Type 7P capacitors can withstand more
than 100,000 full discharges in typical photoflash
applications—that’s more than ten times the life of
ordinary photoflash capacitors. And thanks to special,
high-energy anode foil, the Type 7P has industry-
leading energy densities of more than 1 joule per cc.
Highlights
•
•
100,000 flash capability
1 joule per cc energy density
Specifications
Operating Temperature Range:
–20 °C to +55 °C
Rated Voltage:
330 or 360 Vdc
Capacitance:
300 to 2700 µF –10% +20%
Leakage Current:
1 times C in µA maximum at 5 min.
Dissipation Factor (Tanδ):
15% max. @ 25 °C & 120 Hz
Discharge Life:
100,000 minimum at 30 s interval
∆
Capacitance ±10%
ESR 150% of limit
DCL 150% of limit
Shelf Life:
500 h @ +70 °C
∆
Capacitance ±10%
ESR 150% of limit
DCL 150% of limit

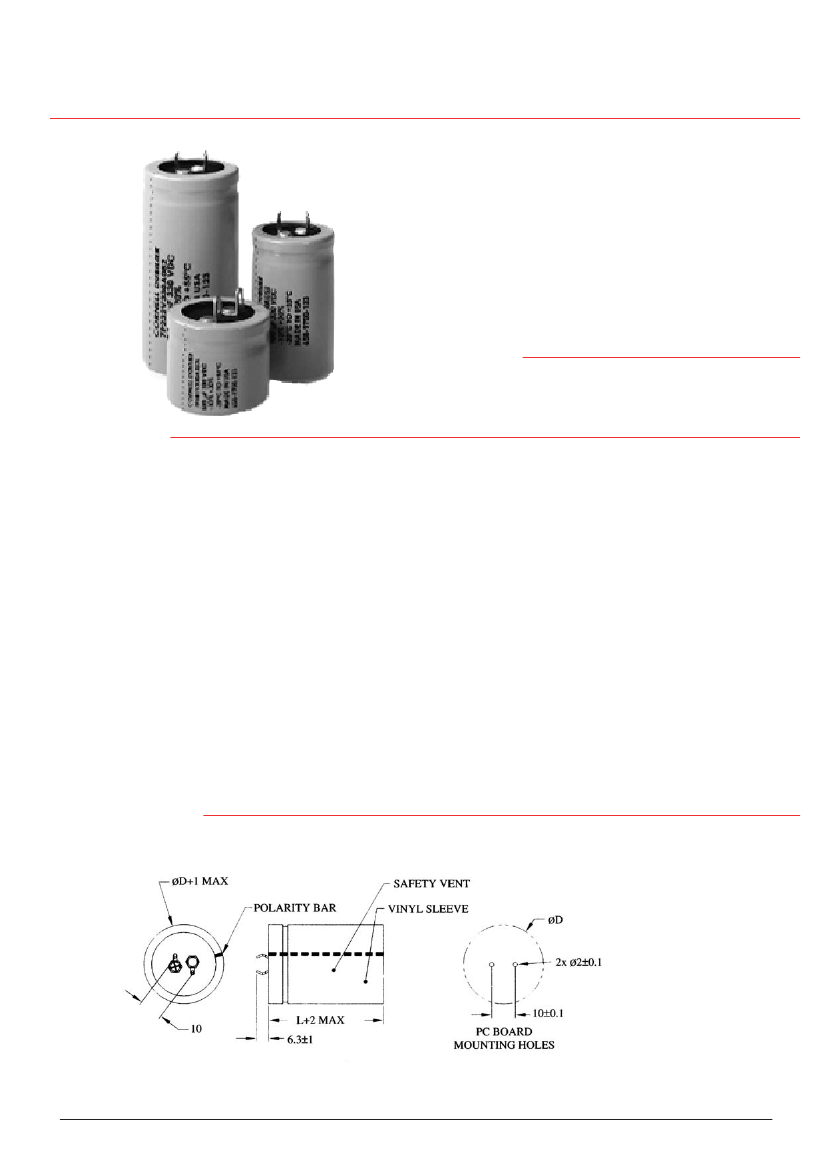

Outline Drawings
Vibration:
10 to 55 Hz; 0.06” and 10 g max, 6 h vertical, 2 h. ea. 2 other planes
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 7P
55 °C Photoflash, High-Energy, Long Life, Aluminum

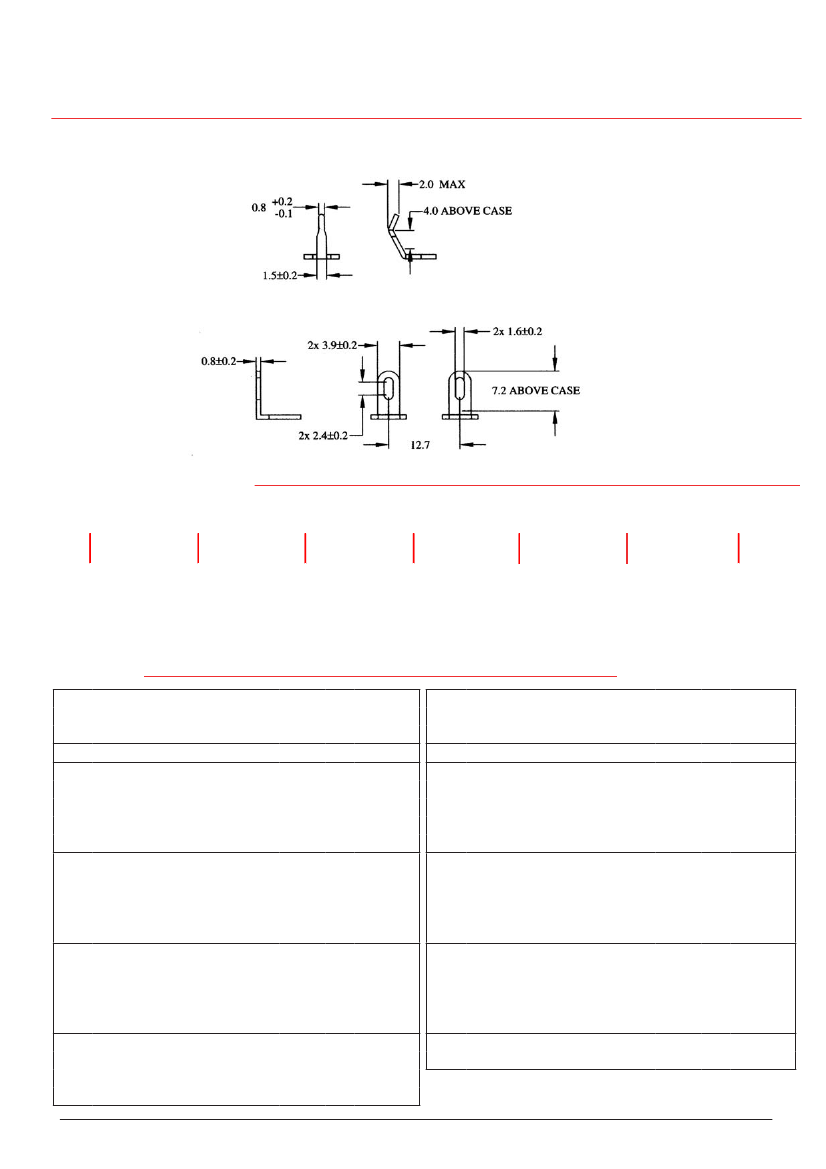

Terminal Drawings
Snap-In Terminals
Solder-Lug Terminals
Part Numbering System
7P
122
V
330
N05
2
L
Type
Capacitance
301
= 300 µF
122
= 1200 µF
Tolerance
10 + 20%
Rated
Voltage
Case
Code
Insulation
2
= PVC
Terminals
(blank)
= snap-in
L
= solder lugs
Ratings
Cap. Catalog Part
Diameter
Length
(µF) Number
(mm) (in) (mm) (in)
(Ω)
330 Vdc (360 Vdc Surge)
300 7P301V330J032
0.663
25 0.98 35 1.38
300 7P301V330K012
0.663
30 1.18 25 0.98
350 7P351V330J042
0.568
25 0.98 40 1.57
350 7P351V330K022
0.568
30 1.18 30 1.18
400 7P401V330J042
0.497
25 0.98 40 1.57
400 7P401V330K022
0.497
30 1.18 30 1.18
500 7P501V330J052
0.398
25 0.98 50 1.97
500 7P501V330K032
0.398
30 1.18 35 1.38
600 7P601V330K042
0.332
30 1.18 40 1.57
700 7P701V330A042
0.284
35 1.38 40 1.57
800 7P801V330A042
0.249
35 1.38 40 1.57
900 7P901V330A052
0.221
35 1.38 50 1.97
900 7P901V330A452
0.221
35 1.38 45 1.77
1000 7P102V330A052
0.199
35 1.38 50 1.97
1000 7P102V330N042
0.199
40 1.57 40 1.57
1200 7P122V330A052
0.166
35 1.38 50 1.97
1500 7P152V330A062
0.133
35 1.38 63 2.48
2000 7P202V330A082
0.099
35 1.38 80 3.15
2700 7P272V330N082
0.074
40 1.57 80 3.15
ESR Maximum
@ +25 °C, 120
Cap.
(µF)
300
350
350
400
400
450
450
500
600
700
800
900
1000
1200
1500
2000
2500
RoHS Compliant
ESR Maximum
Catalog Part
@ +25 °C, 120 Diameter
Length
Number
(mm) (in) (mm) (in)
(Ω)
360 Vdc (390 Vdc Surge)
7P301V360J042
0.663
25 0.98 40 1.57
7P351V360K022
0.568
30 1.18 30 1.18
7P351V360A012
0.568
35 1.38 25 0.98
7P401V360J052
0.497
25 0.98 50 1.97
7P401V360K032
0.497
30 1.18 35 1.38
7P451V360K032
0.442
30 1.18 35 1.38
7P451V360A022
0.442
35 1.38 30 1.18
7P501V360K042
0.398
30 1.18 40 1.57
7P601V360A032
0.332
35 1.38 35 1.38
7P701V360A042
0.284
35 1.38 40 1.57
7P801V360A452
0.249
35 1.38 45 1.77
7P901V360N042
0.221
40 1.57 40 1.57
7P102V360A052
0.199
35 1.38 50 1.97
7P122V360A062
0.166
35 1.38 63 2.48
7P152V360A072
0.133
35 1.38 70 2.76
7P202V360N082
0.099
40 1.57 80 3.15
7P252V360N082
0.080
40 1.57 80 3.15
