MC74ACT08DT datasheet, PDF - EEWORLD Datasheet

MC74ACT08DT: DescriptionACT SERIES, QUAD 2-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14; Categorylogic logic; File Size77KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

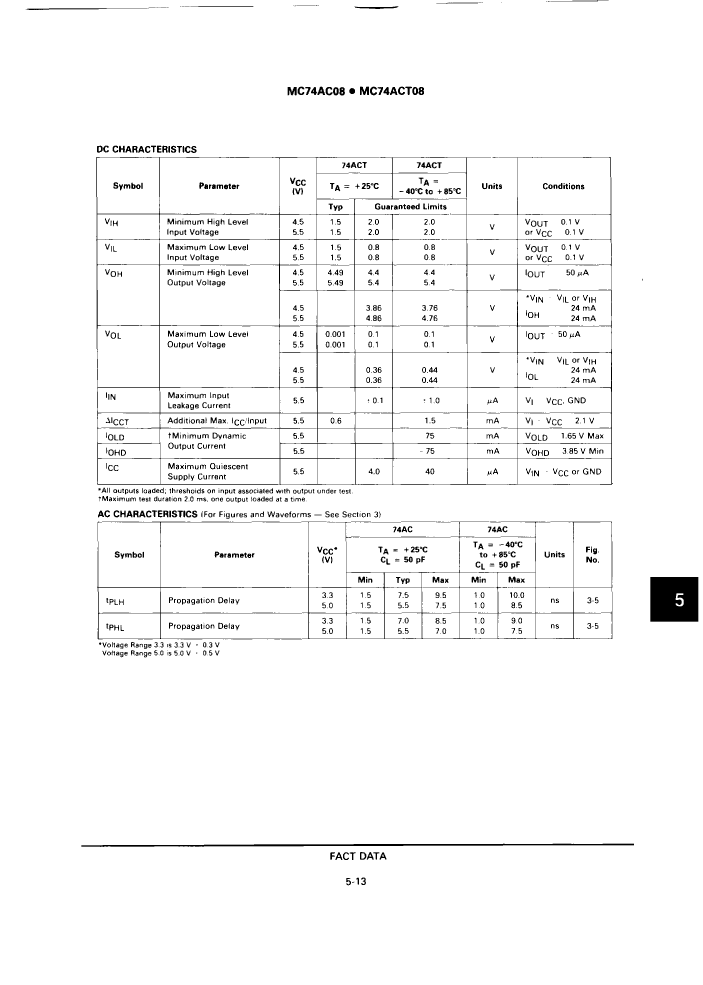

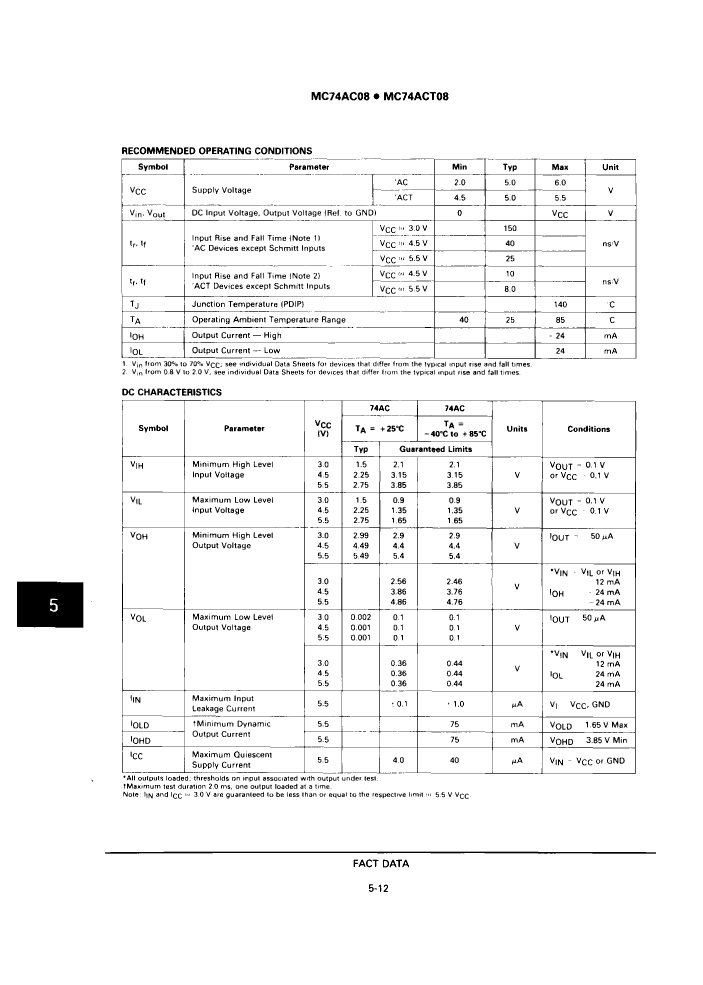

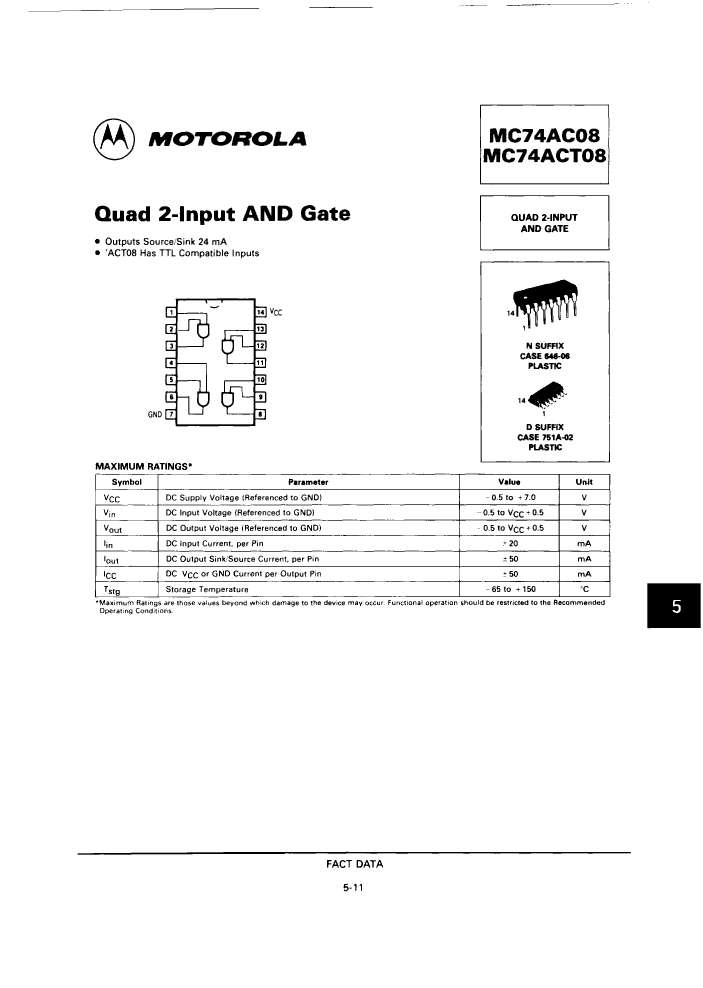

MC74ACT08DT Overview

ACT SERIES, QUAD 2-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDSO-G14
length	8.65 mm
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	MC74ACT08DT	MC74AC08DT
Description	ACT SERIES, QUAD 2-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14	AC SERIES, QUAD 2-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	ACT	AC
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	8.65 mm	8.65 mm
Logic integrated circuit type	AND GATE	AND GATE
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	10 ns	7.5 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	6 V
Minimum supply voltage (Vsup)	4.5 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
Base Number Matches	1	1
