AK60C-048L-033F08N datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AK60C-048L-033F08N

Preview

AK60C-048L-033F08N: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid; CategoryPower/power management The power supply circuit; File Size665KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

AK60C-048L-033F08N Overview

DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid

AK60C-048L-033F08N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP9/10,1.9,400/300
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-MDMA-P9
JESD-609 code	e0
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum output current	6.5 A
Maximum output voltage	3.63 V
Minimum output voltage	2.64 V
Nominal output voltage	3.3 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP9/10,1.9,400/300
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	7.62 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	30 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

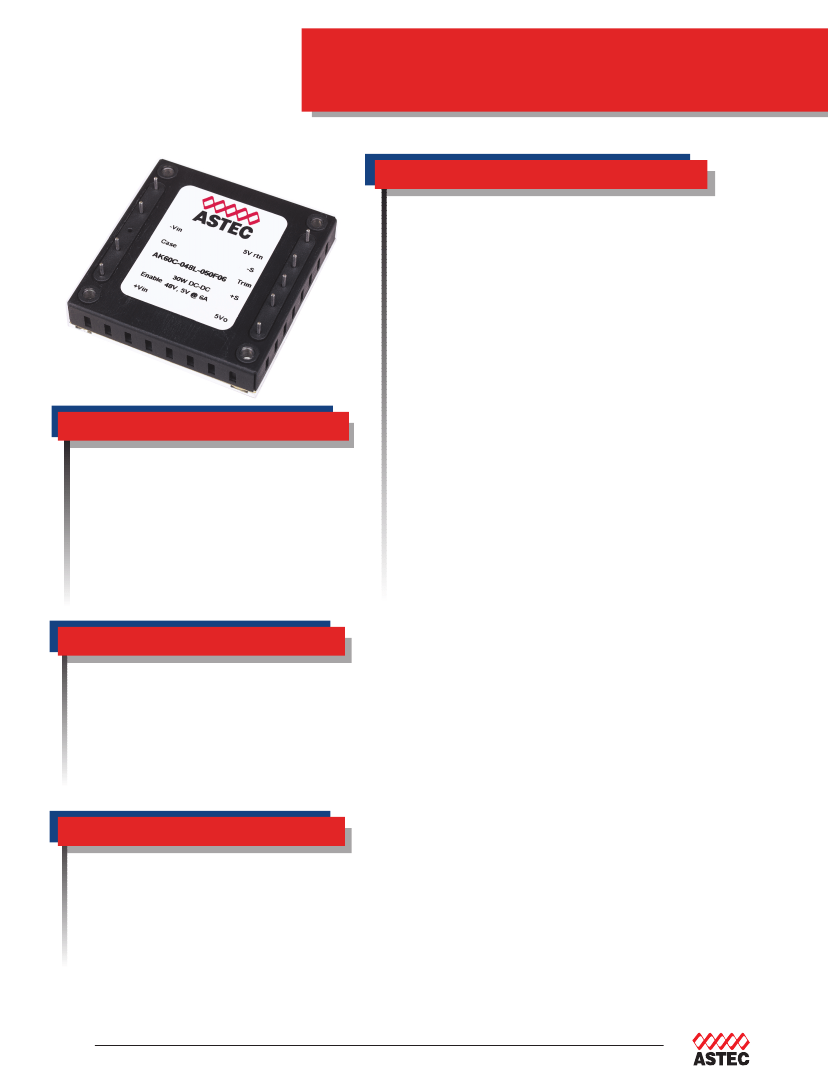

30 Watts

AK60C

Total Power:

Input Voltages:

No. of Outputs:

30 Watts

48V

Single

Electrical Specs

Input

Input range

Input Surge

Efficiency

36-75 VDC

100V / 100ms

84%@5V

Output

Load regulation

Line regulation

Ripple and noise

Output voltage

adjust range

Transient Response

0.2% max

(add 10mV for Vo 3.3V or less)

0.2% max (5V or greater)

(10mV for 3.3V or less)

100mV max

+10-20% of nominal output

5% max deviation with

50% to 75% full load

500 µS (max) recovery

140% Vo max

• Industry standard pin-out &

performance 100°C baseplate

temperature (no derating)

• Positive and negative enable function

• Low output ripple and noise

• Multiple pin length options

• Remote sense compensation

• Regulation to zero load

• Fixed frequency switching (300 kHz)

Operating case temperature range:

-40°C to +105°C

Storage temperature: -55°C to +125°C

MTBF: >1 million hours

FE or

LI

OF site f

D

EN web

ts

ar

ee ate p

S

rn

lte

a

Special Features

Overvoltage protection

Inception of

current Limit

140% maximum output

Control

Voltage Adjust

Enable

80 to 110%

TTL compatible

(positive & negative enable options)

Environmental

Safety

UL

CSA

TUV

UL1950

CSA22.2-950

EN60950

32

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662

AK60C-048L-033F08N Related Products

	AK60C-048L-033F08N
Description	DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid
Is it Rohs certified?	incompatible
package instruction	DIP, DIP9/10,1.9,400/300
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-MDMA-P9
JESD-609 code	e0
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum output current	6.5 A
Maximum output voltage	3.63 V
Minimum output voltage	2.64 V
Nominal output voltage	3.3 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP9/10,1.9,400/300
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	7.62 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	30 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Recommended Resources

Positive reference voltage circuit diagram

Proportional-derivative (PD) operation circuit

One of the high input-high output voltage integrated regulated power supply circuits

Gain programmable buffer amplifier circuit for floating point exchange

Performance table of ultrasonic piezoelectric sensor from Murata Corporation of Japan

Alarm circuit diagram
