MIL-DTL-83723, Series III, Matrix
®
K
TABLE OF CONTENTS FOR SECTION K
MIL-DTL-83723, SERIES III, MATRIX
®
Wide Variety of Coupling Styles & Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Class Descriptions, Performance Specifications, Quick Reference Chart . . . . . . . . . . . . . . . . . . . . . .
Insert Availability and Identification,
Alternate Keying Positions, Alternate Rotations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Insert Arrangement Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
4
5, 6
BAYONET SHELL STYLES:
How to Order (Military & Commercial) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wall Mounting Receptacle M83723/71 & /72 (MB30),
Jam Nut Receptacle M83723/73 & /74 (MB34) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Straight Plug M83723/75 & /76 (MB36),
Straight Plug with RFI Grounding Fingers M83723/77 & /78 (MB38) . . . . . . . . . . . . . . . . . . . . . . . . . . 9
THREADED SHELL STYLES:
How to Order (Military & Commercial) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wall Mounting Receptacle M83723/82 & /83 (MT30),
Jam Nut Receptacle M83723/84 & /85 (MT34) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Straight Plug M83723/86 & /87 (MT36),
Straight Plug with RFI Grounding Fingers M83723/91 & /92 (MT38) . . . . . . . . . . . . . . . . . . . . . . . . . .
Straight Plug (Self-locking) M83723/95 & /96 (MT37) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
11
12
13
QUICK-DISCONNECT SHELL STYLES:
How to Order (Military & Commercial) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Quick-Disconnect Plug M83723/66 & /67 (MQ36),Quick-Disconnect Plug with Lanyard
M83723/68 & /69 (MQ35/MQ38), Receptacle Adapter for quick
disconnect plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CONTACT INFORMATION, SEALING PLUGS:
Crimp and Insertion/Removal Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
1
MIL-DTL-83723, Series III, Matrix
®
With a Wide Variety of Coupling Styles & Options
AMPHENOL AEROSPACE OFFERS THE MATRIX
®
PRODUCT LINE OF MIL-DTL-83723*, SERIES III
CONNECTORS.
MIL-DTL-83723, SERIES III CONNECTORS
WITH BAYONET COUPLING

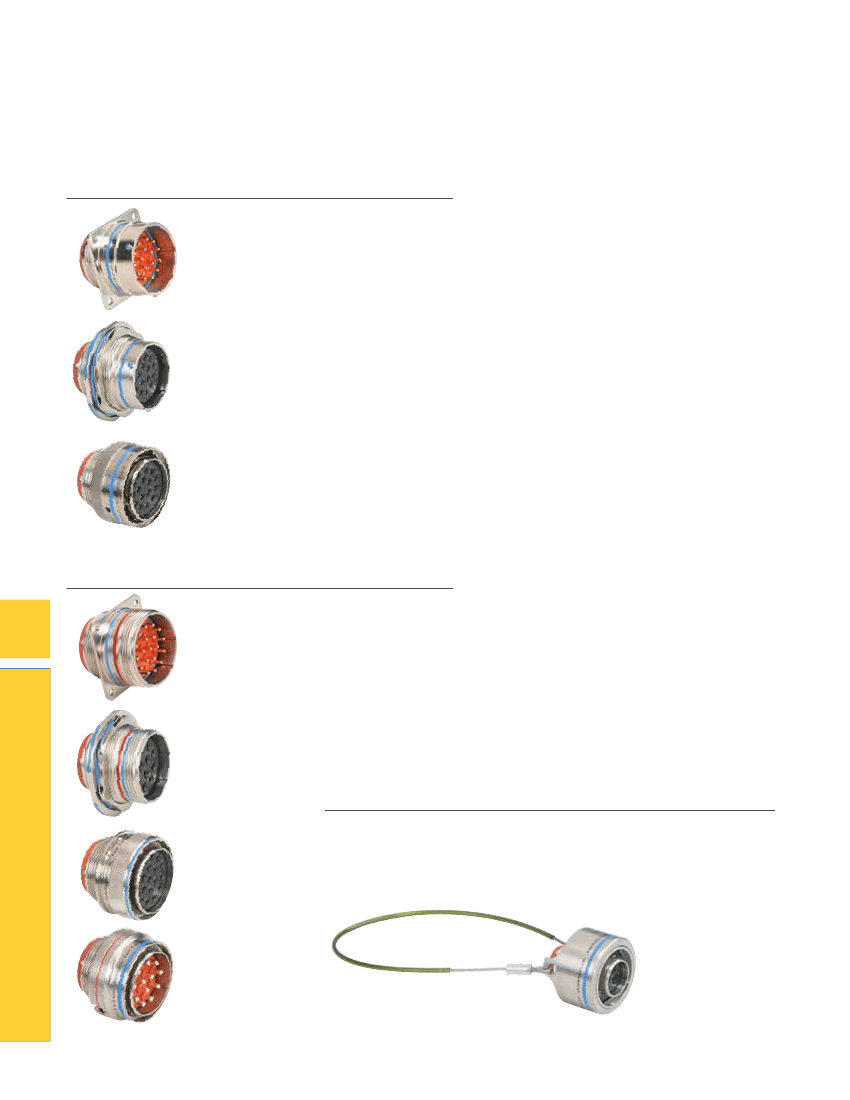

M83723/71 & 72
wall mounting
receptacle
This series provides many choices within the range of
a medium sized, environmentally resistant circular
connector . With three coupling style choices -
bayonet, threaded and quick-disconnect - the
versatility of this family makes it increasingly popular
for panel mount, box mount and line-to-line
applications in aircraft . For general duty
environmentally resistant requirements, this family
of connectors provides a wide range of
interconnection solutions .
M83723/73 & 74
jam nut
receptacle
• Quick positive coupling
assured by 3 point bayonet
coupling system; visual
confirmation of complete
coupling
• Five key/keyway design
eliminates mismating
• Shell sizes 8 – 24
• Intermateable with most
MIL-DTL-26500 bayonet
coupling connectors
DESIGN CHARACTERISTICS
• Recommended operating voltage to 600 VAC
(RMS) at sea level
• Complete environmental sealing includes
individual contact seals and a silicone elastomer
interfacial seal with raised barriers around each
pin, a shell-to-shell seal and an insert-to-shell
seal . Sealing over a wide range of wire diameters
is assured by a triple-webbed grommet design
• Captive coupling nut prevents tampering, while a
reduced coupling ring ramp allows easier mating
• Incorporates crimp rear release contacts in sizes
12, 16 and 20; contact arrangements accept 2 to
61 circuits
• Contacts conform to SAE AS39029** and use
standard qualified rear-release type plastic tools
• Insertion and removal of contacts from the rear of
the connector assures no damage to the front that
might affect the sealing characteristics
• Grommets are constructed of tear-resistant
elastomer and experience no degradation when
exposed to a broad range of fluids
• Closed entry socket side of the insert is designed
with a lead-in chamfer and a hard face that will
accept a pin contact bent within pre-
established limits
• MS and Commercial versions available
• Alternate positioning available
• Aluminum shells with black anodized, cadmium or
electroless nickel finish options; passivated
stainless steel shells are also available
M83723/75 & 76
straight plug
M83723/77 & 78
straight plug,
RFI grounding
MIL-DTL-83723, SERIES III CONNECTORS
WITH THREADED COUPLING
83723 III
M83723/82 & 83
wall mounting
receptacle
Matrix
M83723/84 &
85 jam nut
receptacle
• Threaded coupling offers
greater resistance to
decoupling with a visual full
mating indicator band on
the shell
• Shell sizes 8 – 28
• Intermateable with most
MIL-DTL-26500 threaded
coupling connectors
**SAE AS39029 supersedes MIL-DTL-39029
MIL-DTL-83723, SERIES III CONNECTORS
WITH QUICK DISCONNECT COUPLING
M83723/66 & 67 quick
disconnect plug
M83723/68 & 69 quick
disconnect plug with lanyard
M83723/86 & 87
straight plug
M83723/91 & 92
straight plug,
RFI grounding
M83723/95 &
96 straight plug,
self-locking
• Push-Pull, quick
disconnect
coupling is
available in a
straight plug that
can be ordered
with or without a
lanyard release
mechanism
K
2
* MIL-DTL-83723 supersedes MIL-C-83723 .
Pyle-National Series of MIL-DTL-83723 is also offered by Amphenol .; see 83723 Pyle section of this catalog .
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
MIL-DTL-83723, Series III, Matrix
®
Class Descriptions, Performance Specifications, Quick Reference Chart
CLASS DESCRIPTIONS
Military
MIL-DTL-83723,
Series III
Commercial
MB Series
Connector
Style
Description
Class A
Class A
Aluminum shell,
Bayonet,
black non-con-
Threaded or
ductive anodize
Quick-Disconnect finish,
fluid resistant
Aluminum shell,
Bayonet,
electroless
Threaded or
nickel finish,
Quick-Disconnect
fluid resistant
Stainless steel
Bayonet,
shell, pas-
Threaded or
sivated, fluid
Quick-Disconnect
resistant
Aluminum
Bayonet,
shell, cadmium
Threaded or
olive drab finish,
Quick-Disconnect corrosion/fluid
resistant
The following is a quick reference chart for use in determining
either the military designation or the commercial Amphenol
®
/
Matrix
®
designation number of MIL-DTL-83723 connectors .
See also the how to order pages for complete part number
breakdowns .
Connector
Style
Military
Designation
BAYONET COUPLING
Square flange wall mount
receptacle
Square flange wall mount
receptacle
Single hole mount jam nut
receptacle
Single hole mount jam nut
receptacle
Standard straight plug
Standard straight plug
Straight plug with RFI
grounding fingers
Straight plug with RFI
grounding fingers
M83723/71
M83723/72
M83723/73
M83723/74
M83723/75
M83723/76
M83723/77
M83723/78
THREADED COUPLING
Square flange wall mount
receptacle
Square flange wall mount
receptacle
Single hole mount jam nut
receptacle
Single hole mount jam nut
receptacle
Standard straight plug
Standard straight plug
M83723/82
M83723/83
M83723/84
M83723/85
M83723/86
M83723/87
M83723/91
M83723/92
M83723/95
M83723/96
MT30(
MT30(
MT34(
MT34(
MT36(
MT36(
MT38(
MT38(
MT37(
MT37(
)S
)P
)S
)P
)S
)P
)S
)P
)S
)P
Socket
Pin
MB30( )S
MB30( )P
MB34( )S
MB34( )P
MB36( )S
MB36( )P
MB38( )S
MB38( )P
Socket
Pin
Socket
Pin
Socket
Pin
Socket
Pin
Commercial
Designation
Contact
Type
Class R
Class R
Class G
Class G
Class W
Class W
For Classes K, S and N see the Amphenol/Pyle high temperature versions of
MIL-DTL-83723,Series III in the 83723 Pyle section of this catalog .
PERFORMANCE SPECIFICATIONS
SERVICE RATINGS
Service
Rating
I
Recommended
Operating AC
Voltage
at Sea Level
600
Test Voltage AC (RMS), 60 cps
Sea
Level
1,500
50,000
ft.
500
70,000
ft.
375
110,000
ft.
200
83723 III
Socket
Pin
Socket
Pin
Socket
Pin
Socket
Pin
Please note that the electrical data given is not an establishment of electrical
safety factors . This is left entirely in the designer’s hands as he can best
determine which peak voltage, switching surges, transients, etc . can be
expected in a particular circuit .
Matrix
OPERATING TEMPERATURE RANGE
Classes A, G and R: –65°C (–85°F) to 200°C (392°F)
Class W: –65°C to 175°C
Straight plug with RFI
grounding fingers
Straight plug with RFI
grounding fingers
Straight plug with self-
locking clutch plate
Straight plug with self-
locking clutch plate
ENVIRONMENTAL SEAL
Wired, mated connectors with the specified accessory attached
will meet the altitude immersion test specified in MIL-DTL-83723 .
DURABILITY
QUICK-DISCONNECT PUSH-PULL COUPLING
Straight plug without
lanyard
Straight plug without
lanyard
Straight plug with lanyard
Straight plug with lanyard
M83723/66
M83723/67
M83723/68
M83723/69
MQ36(
MQ36(
MQ35(
MQ35(
)P
)S
)P
)S
Pin
Socket
Pin
Socket
Minimum of 500 mating cycles .
SHOCK AND VIBRATION REQUIREMENTS
Wired, mated connectors shall not be damaged, nor shall there be
a current interruption longer than one microsecond when sub-
jected to the following:
100g peak for a six millisecond duration (half-sine pulse) .
VIBRATION:
Twelve hours of random vibration having a range of
10 to 2,000 Hz with a .06 inch double amplitude (10-55 Hz) and a
20g peak level (55-2,000 Hz) .
SHOCK:
One shock in each of the three major axes, having a
K
A
3
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
MIL-DTL-83723, Series III, Matrix
®
Insert Availability and Identification, Alternate Rotations

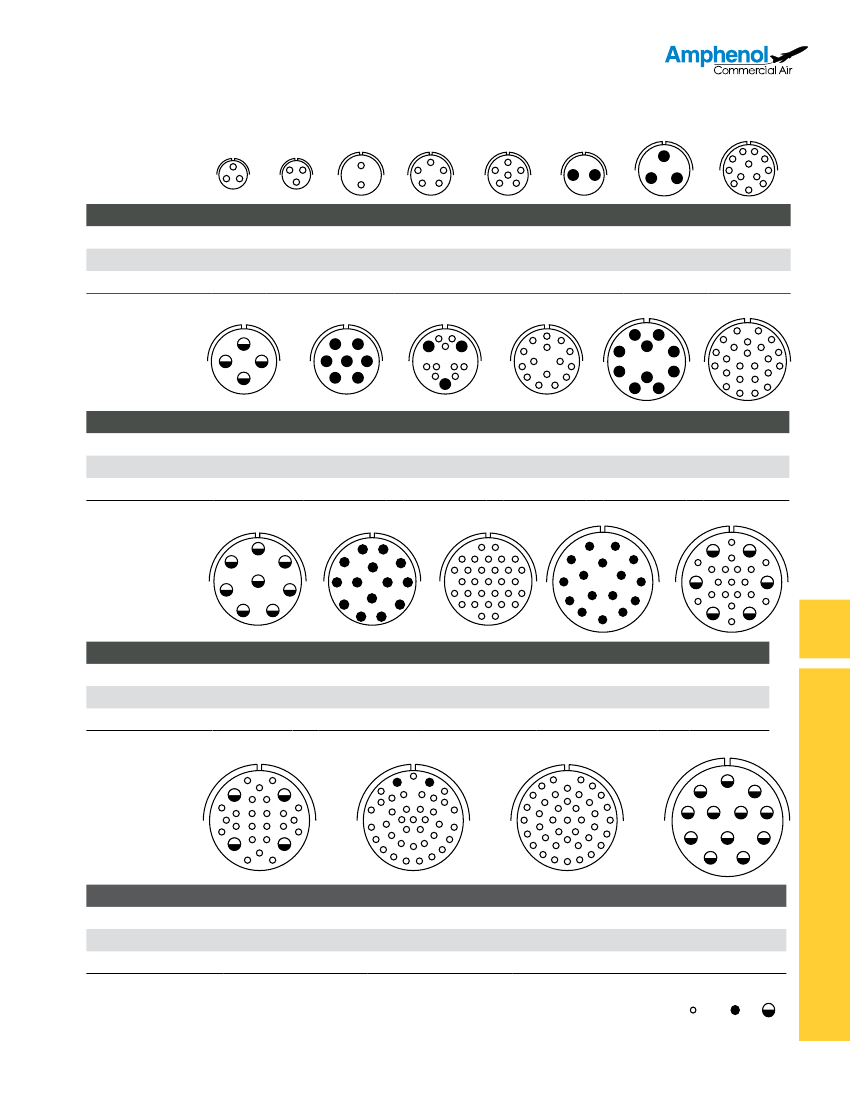

INSERT ARRANGEMENTS
