Composite
Backshells
CONNECTOR DESIGNATOR:

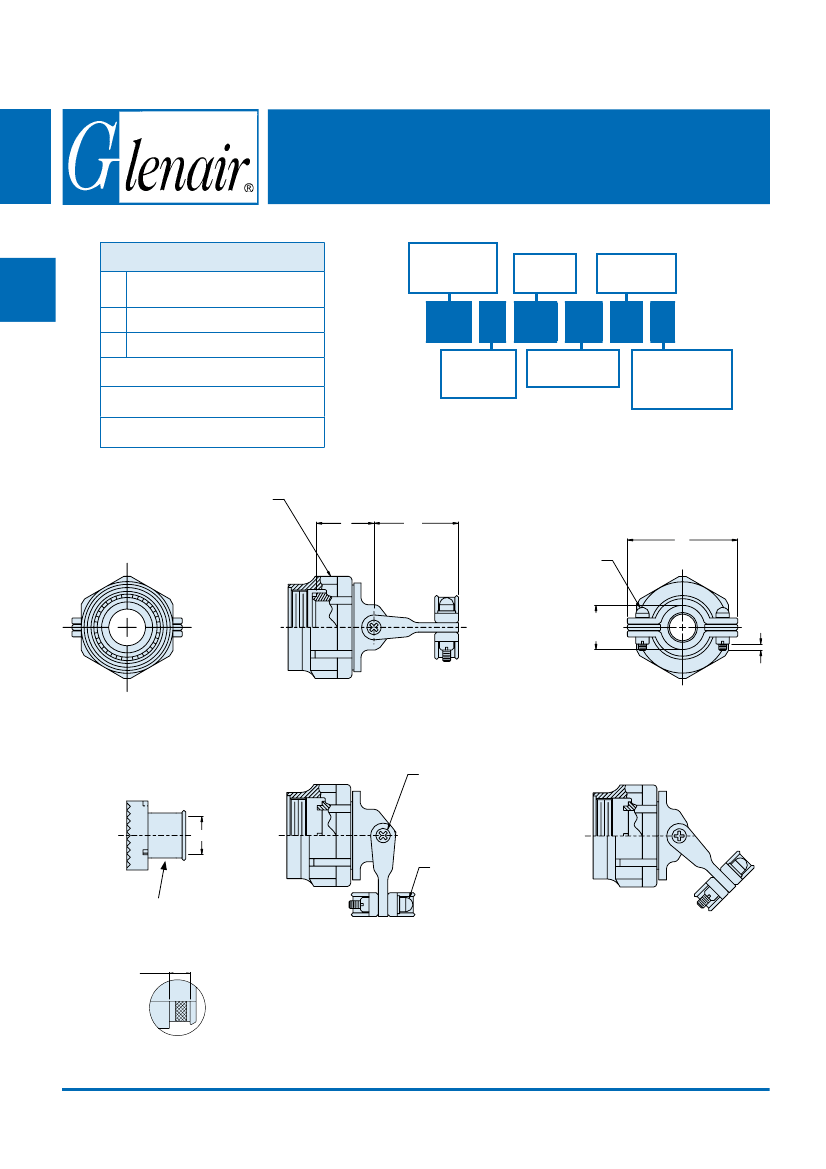

with Keyed Banding Insert and Self-Locking Coupling
627-142
Composite Swing-Arm Strain Relief
A
A
F
H
MIL-DTL-5015, -26482 Series II, and
-83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series III and IV
Product Series
627
- Swing-Arm
Strain Relief
Basic Part
Number
Dash Number
(See
Table II)
627
A
142
XO
16
K
Band Option
K
- Band (600-083)
(Omit for None)
SELF-LOCKING
B
ROTATABLE COUPLING
LOW PROFILE
Connector
Designator
A, F, H
Finish Symbol
(See
Table III)
Self-Locking Coupling
Typ
C
J
G
H
Captivated Self-Locking
Telescoping Screws - Typ
E
Typ Closed
D
Straight
Position
.062 Min
.250 Max
Screw
Protrusion
Typ
E
M
K
Captive Position Screw
Locks Swing Arm
in 45° Incriments
Screw Head
Same Side - Typ
F
Accomodates
600-083-1
Micro-Band
Only
Termination
Area Free of
Cadmium
90°
Position Shown
45° Position
Shown
Detail "B"
Finish XN
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-100
with Keyed Banding Insert and Self-Locking Coupling
627-142
Composite Swing-Arm Strain Relief
TABLE II: DASH NUMBER
Shell Size
A, F
08
10
12
14
16
18
20
22
24
H
09
11
13
15
17
19
21
23
25
E
± .031
.265 (6.7)
.312 (7.9)
.438 (11.1)
.500 (12.7)
.625 (15.9)
.688 (17.5)
.750 (19.1)
.812 (20.6)
.938 (23.8)
G
Max
1.06 (26.9)
1.09 (27.7)
1.18 (30.0)
1.24 (31.5)
1.32 (33.5)
1.39 (35.3)
1.55 (39.4)
1.55 (39.4)
1.61 (40.9)
H
Max
.98 (24.9)
1.05 (26.7)
1.20 (30.5)
1.30 (33.0)
1.44 (36.6)
1.56 (39.6)
1.69 (42.9)
1.77 (45.0)
1.89 (48.0)
J
± .06
.94 (23.9)
.97 (24.6)
1.03 (26.2)
1.09 (27.7)
1.12 (28.4)
1.15 (29.2)
1.18 (30.0)
1.25 (31.8)
1.28 (32.5)
K Diameter
A, F and H
Code
.140 (3.6)
.270 (6.9)
.390 (9.9)
.512 (13.0)
.637 (16.2)
.757 (19.2)
.881 (22.4)
1.006 (25.6)
1.131 (28.7)
TABLE III: FINISH
Symbol
XB
XO
Finish Description
No Plating - Black Color (Non-Conductive Finish)
No Plating - Brown Color (Non-Conductive Finish)
APPLICATION NOTES
1.
2.
3.
4.
Metric dimensions (mm) are in parentheses and
are for reference only.
Glenair series 600 Backshell assembly Tools are
recommended for assembly and installation.
Swing Arm locks in 45° increments–Sizes 10
thru 24, additional positioning increments are
manufacturer's option.
Captive Screw can remain engaged to the body
when positioning the Arm. When tightened, the
Screw shall not protrude into the inside surfaces.
5.
6.
7.
8.
Coupling nut supplied unplated.
Consult factory for additional entry sizes
available.
See Table I in Intro for front-end dimensional
details.
K diameter may be smaller than required
to accomodate fully populated connector.
Consult engineering department for additional
information.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-101
