8609416H194755000E3: DescriptionBoard Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8609416H194755000E3 Overview

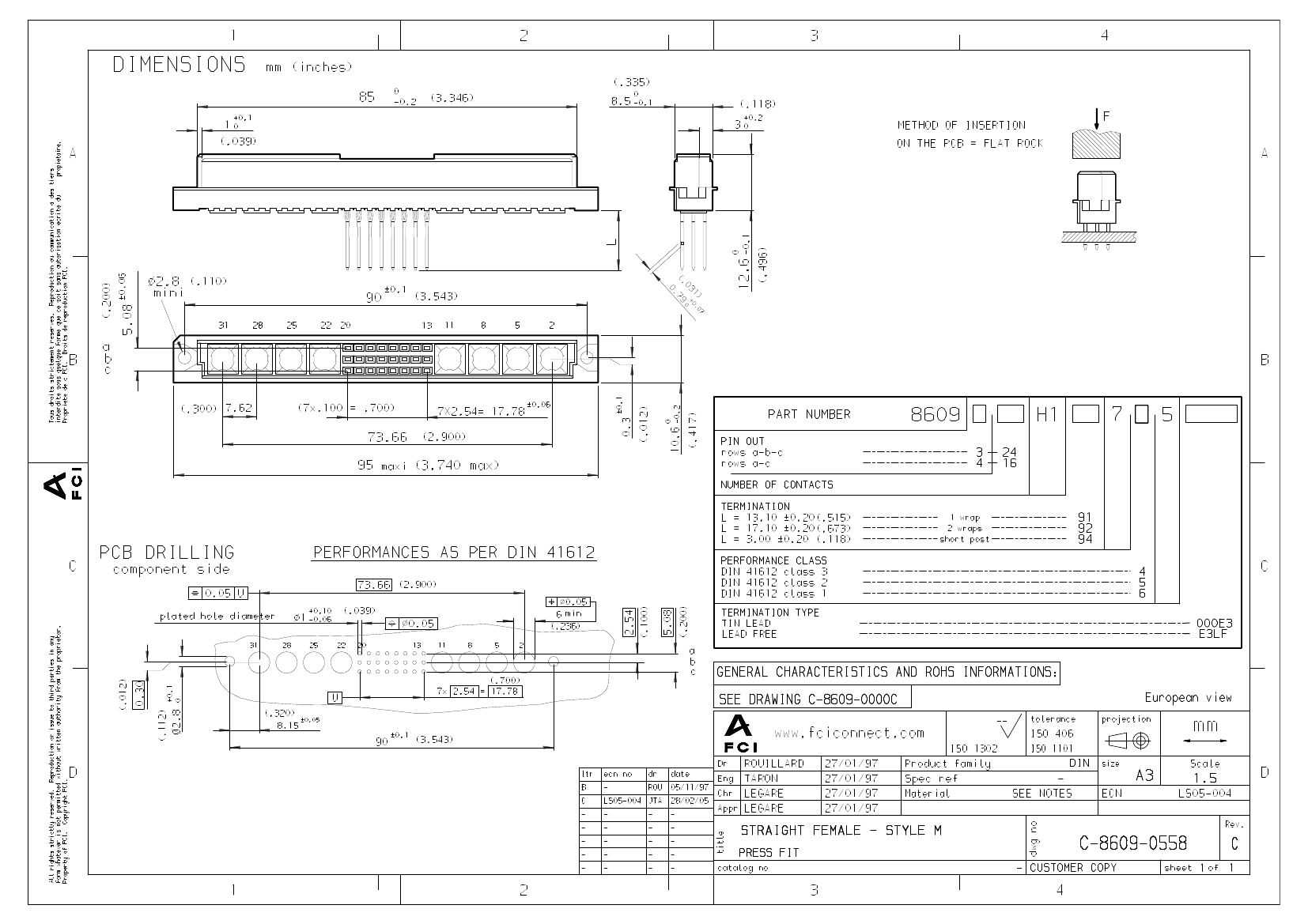

Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	16
Base Number Matches	1

PDM: Rev:C

STATUS:

Released

Printed: Sep 30, 2005

.
