SMD-1070J datasheet, PDF - EEWORLD Datasheet

SMD-1070J: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, 0.200 INCH HEIGHT, J LEAD, SMT, DIP-14/13; Categorylogic logic; File Size860KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

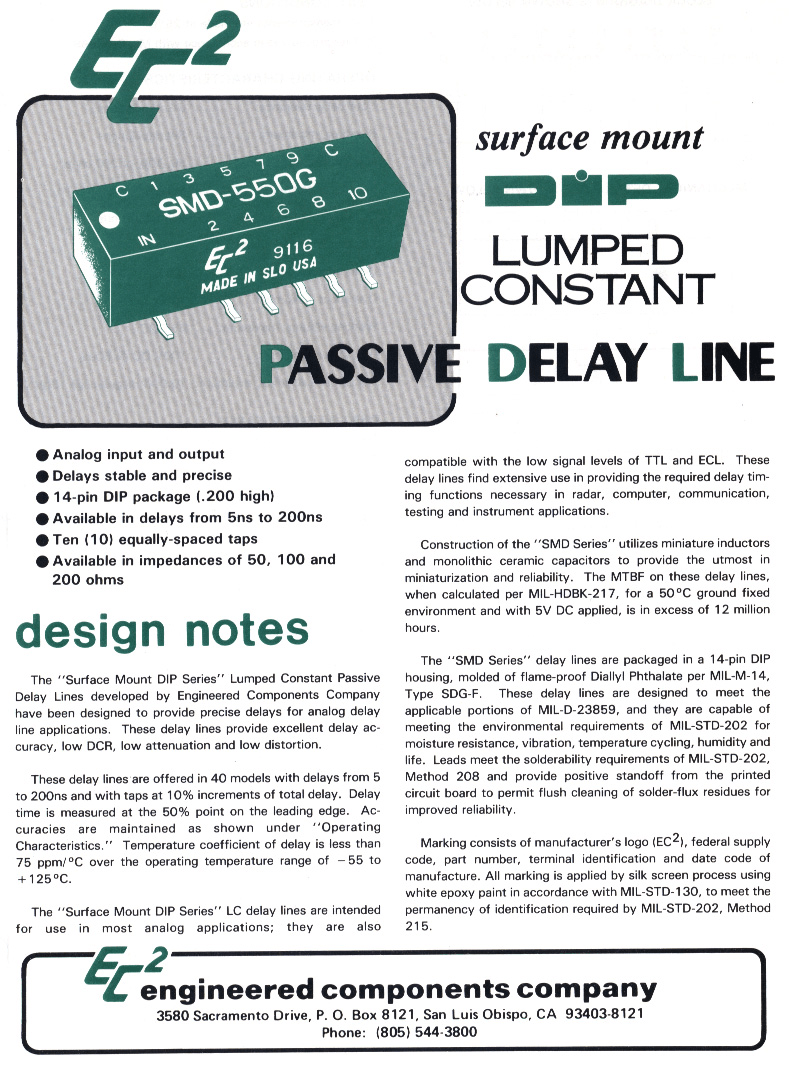

SMD-1070J Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, 0.200 INCH HEIGHT, J LEAD, SMT, DIP-14/13

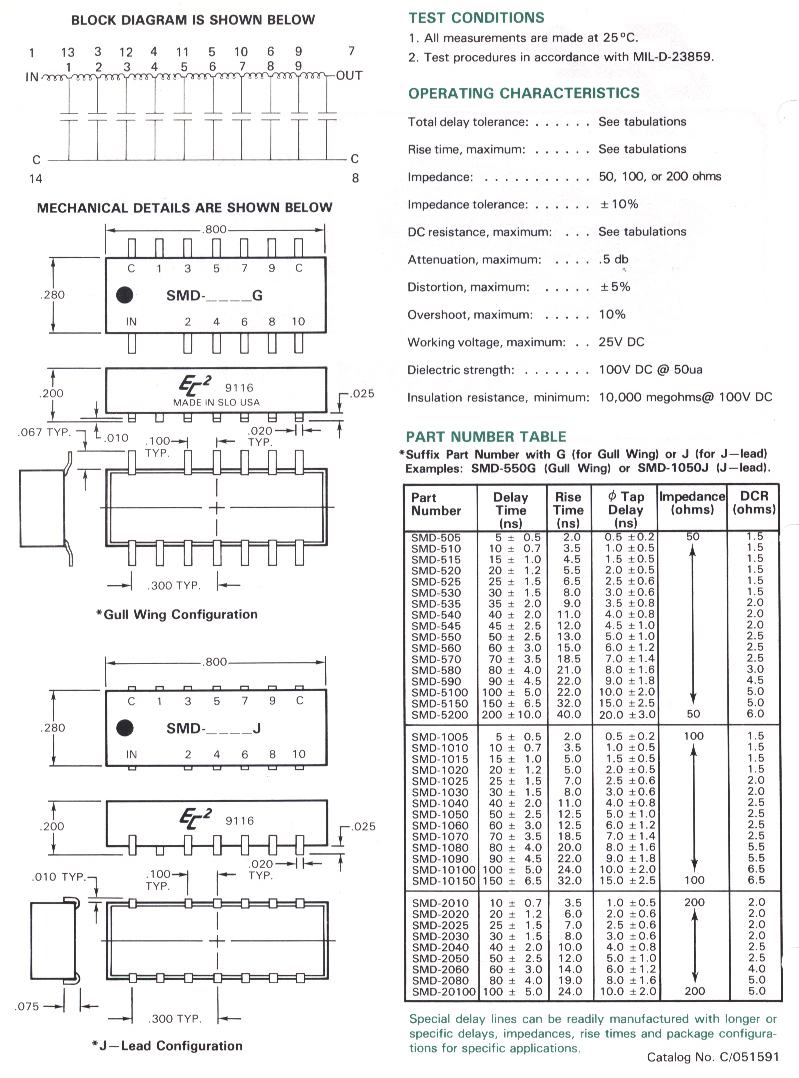

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOJ,
Contacts	14/13
Reach Compliance Code	unknown
Other features	MEETS MIL-D-23859; IMPEDANCE TOL. 10%; MAX DISTORTION 5%; MAX RISE TIME AND TEMP. COEFF. CAPTURED
JESD-30 code	R-XDSO-J13
length	20.32 mm
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	13
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	100 Ω
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
surface mount	YES
Temperature level	MILITARY
Terminal form	J BEND
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	70 ns
width	7.112 mm
Base Number Matches	1
