OM5257DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> OM5257DC

OM5257DC: DescriptionRectifier Diode, 1 Phase, 2 Element, 20A, 50V V(RRM), Silicon, TO-254AA,; CategoryDiscrete semiconductor diode; File Size65KB，2 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

OM5257DC Overview

Rectifier Diode, 1 Phase, 2 Element, 20A, 50V V(RRM), Silicon, TO-254AA,

OM5257DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
JESD-609 code	e0
Maximum non-repetitive peak forward current	500 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	20 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	SINGLE
Base Number Matches	1

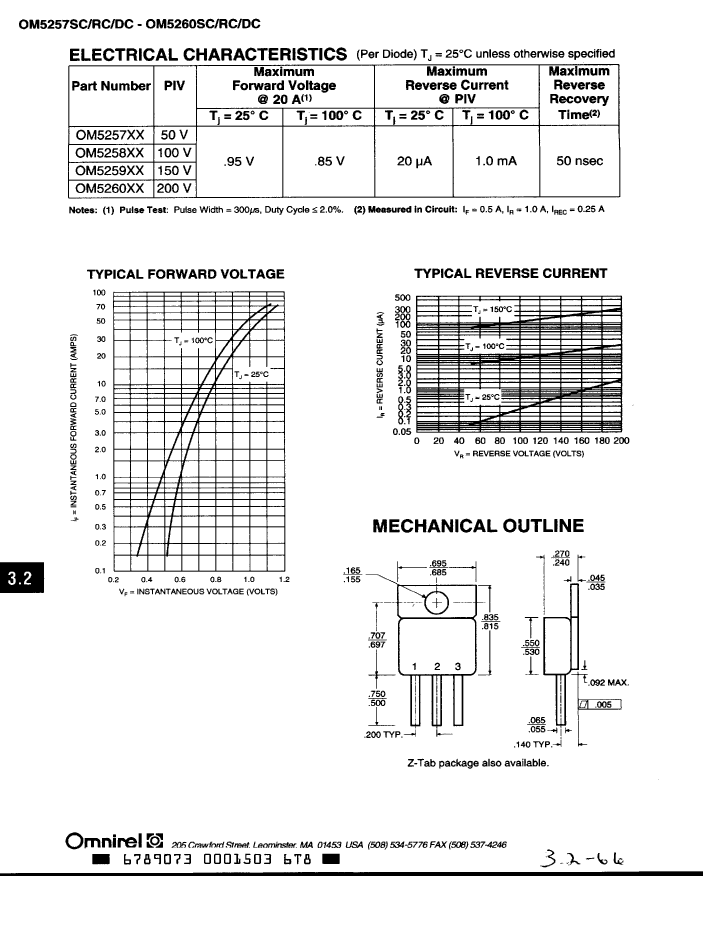

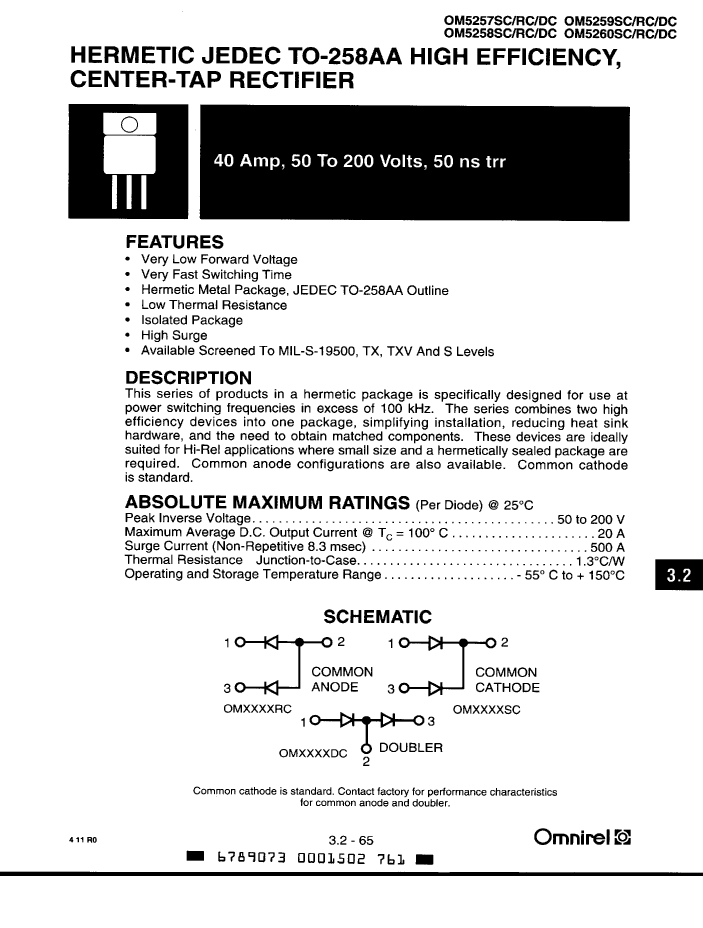

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

OM5257DC Related Products

	OM5257DC	OM5258RC	OM5257RC	OM5260RC	OM5259DC	OM5259SC	OM5259RC
Description	Rectifier Diode, 1 Phase, 2 Element, 20A, 50V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 20A, 100V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 20A, 50V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 20A, 200V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 20A, 150V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 20A, 150V V(RRM), Silicon, TO-254AA,	Rectifier Diode, 1 Phase, 2 Element, 20A, 150V V(RRM), Silicon, TO-254AA,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.95 V	0.95 V	0.95 V	0.95 V	0.95 V	0.95 V
JEDEC-95 code	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA
JESD-30 code	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	500 A	500 A	500 A	500 A	500 A	500 A	500 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	20 A	20 A	20 A	20 A	20 A	20 A	20 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	100 V	50 V	200 V	150 V	150 V	150 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	-	-
