54HC373

Description
Octal D-Type Latch with 3-State Output
File Size101KB,7 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Compare View All

54HC373 Overview

Octal D-Type Latch with 3-State Output

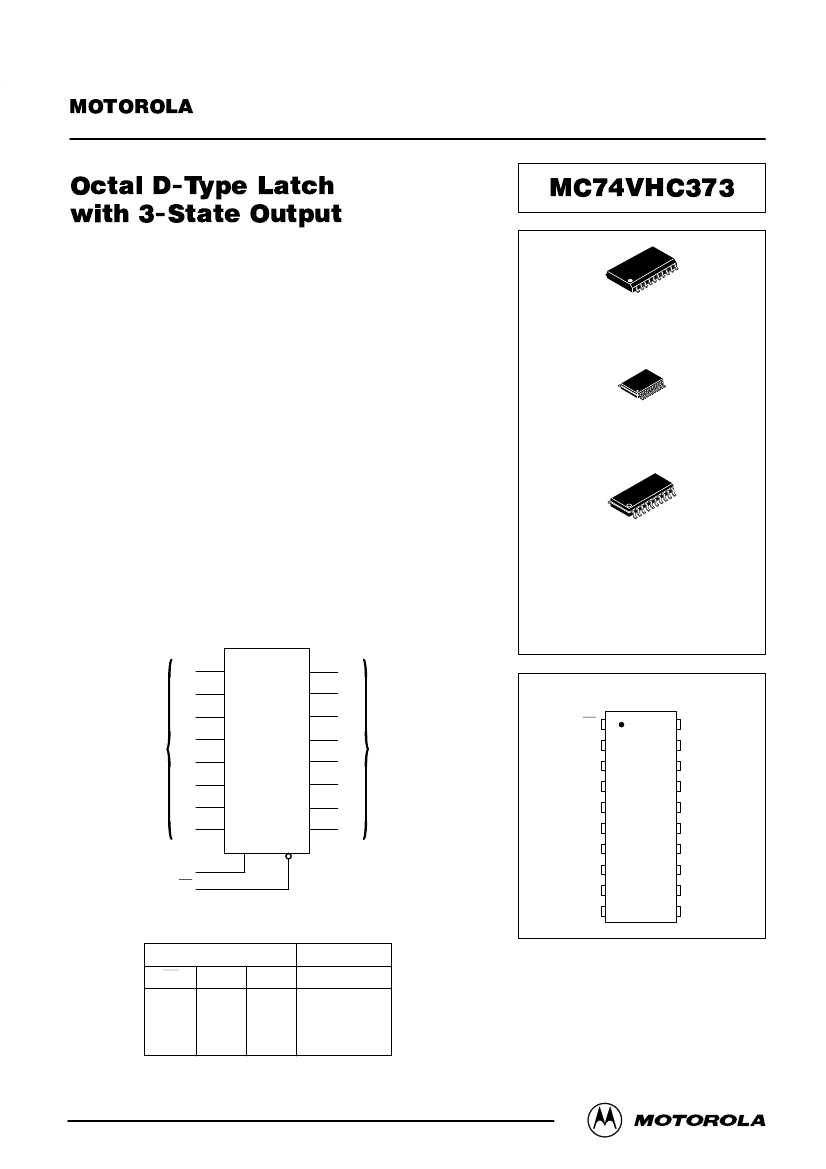

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Octal D-Type Latch
with 3-State Output
The MC74VHC373 is an advanced high speed CMOS octal latch with
3–state output fabricated with silicon gate CMOS technology. It achieves
high speed operation similar to equivalent Bipolar Schottky TTL while
maintaining CMOS low power dissipation.
This 8–bit D–type latch is controlled by a latch enable input and an output
enable input. When the output enable input is high, the eight outputs are in a
high impedance state.
The internal circuit is composed of three stages, including a buffer output
which provides high noise immunity and stable output. The inputs tolerate
voltages up to 7V, allowing the interface of 5V systems to 3V systems.
High Speed: tPD = 5.0ns (Typ) at VCC = 5V
Low Power Dissipation: ICC = 4µA (Max) at TA = 25°C
High Noise Immunity: VNIH = VNIL = 28% VCC
Power Down Protection Provided on Inputs
Balanced Propagation Delays
Designed for 2V to 5.5V Operating Range
Low Noise: VOLP = 0.9V (Max)
Pin and Function Compatible with Other Standard Logic Families
Latchup Performance Exceeds 300mA
ESD Performance: HBM > 2000V; Machine Model > 200V
Chip Complexity: 186 FETs or 46.5 Equivalent Gates
MC74VHC373
DW SUFFIX
20–LEAD SOIC PACKAGE
CASE 751D–04
DT SUFFIX
20–LEAD TSSOP PACKAGE
CASE 948E–02
M SUFFIX
20–LEAD SOIC EIAJ PACKAGE
CASE 967–01
ORDERING INFORMATION
MC74VHCXXXDW
SOIC
MC74VHCXXXDT
TSSOP
MC74VHCXXXM
SOIC EIAJ
LOGIC DIAGRAM
D0
D1
D2
DATA
INPUTS
D3
D4
D5
D6
D7
3
4
7
8
13
14
17
18
2
5
6
9
12
15
16
19
Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7
NONINVERTING
OUTPUTS
PIN ASSIGNMENT
OE
Q0
D0
D1
Q1
Q2
D2
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VCC
Q7
D7
D6
Q6
Q5
D5
D4
Q4
LE
LE
OE
11
1
D3
Q3
GND
FUNCTION TABLE
INPUTS
OE
L
L
L
H
LE
H
H
L
X
D
H
L
X
X
OUTPUT
Q
H
L
No Change
Z
6/97
©
Motorola, Inc. 1997
1
REV 1

54HC373 Related Products

54HC373 MC74VHC373M MC74VHC373DW MC74VHC373DT MC74VHC373
Description Octal D-Type Latch with 3-State Output Octal D-Type Latch with 3-State Output Octal D-Type Latch with 3-State Output Octal D-Type Latch with 3-State Output Octal D-Type Latch with 3-State Output
Maker - Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP ) -
Parts packaging code - SOIC SOIC TSSOP -
package instruction - SOP, SOP, TSSOP, -
Contacts - 20 20 20 -
Reach Compliance Code - unknow unknow unknow -
Other features - DISABLE & ENABLE TIME @ RL=1K DISABLE & ENABLE TIME @ RL=1K DISABLE & ENABLE TIME @ RL=1K -
series - AHC/VHC AHC/VHC AHC/VHC -
JESD-30 code - R-PDSO-G20 R-PDSO-G20 R-PDSO-G20 -
JESD-609 code - e0 e0 e0 -
length - 12.575 mm 12.8 mm 6.5 mm -
Load capacitance (CL) - 50 pF 50 pF 50 pF -
Logic integrated circuit type - BUS DRIVER BUS DRIVER BUS DRIVER -
Number of digits - 8 8 8 -
Number of functions - 1 1 1 -
Number of ports - 2 2 2 -
Number of terminals - 20 20 20 -
Maximum operating temperature - 85 °C 85 °C 85 °C -
Minimum operating temperature - -40 °C -40 °C -40 °C -
Output characteristics - 3-STATE 3-STATE 3-STATE -
Output polarity - TRUE TRUE TRUE -
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY -
encapsulated code - SOP SOP TSSOP -
Package shape - RECTANGULAR RECTANGULAR RECTANGULAR -
Package form - SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH -
propagation delay (tpd) - 17 ns 17 ns 17 ns -
Certification status - Not Qualified Not Qualified Not Qualified -
Maximum seat height - 2.05 mm 2.65 mm 1.2 mm -
Maximum supply voltage (Vsup) - 5.5 V 5.5 V 5.5 V -
Minimum supply voltage (Vsup) - 2 V 2 V 2 V -
Nominal supply voltage (Vsup) - 5 V 5 V 5 V -
surface mount - YES YES YES -
technology - CMOS CMOS CMOS -
Temperature level - INDUSTRIAL INDUSTRIAL INDUSTRIAL -
Terminal surface - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) -
Terminal form - GULL WING GULL WING GULL WING -
Terminal pitch - 1.27 mm 1.27 mm 0.65 mm -
Terminal location - DUAL DUAL DUAL -
width - 5.275 mm 7.5 mm 4.4 mm -
