HM2P70PNE12CGLLF datasheet, PDF

HM2P70PNE12CGLLF: DescriptionBoard Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size248KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P70PNE12CGLLF Overview

Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

Parameter Name	Attribute value
Objectid	2143176371
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Other features	22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (40) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	132
UL Flammability Code	94V-0

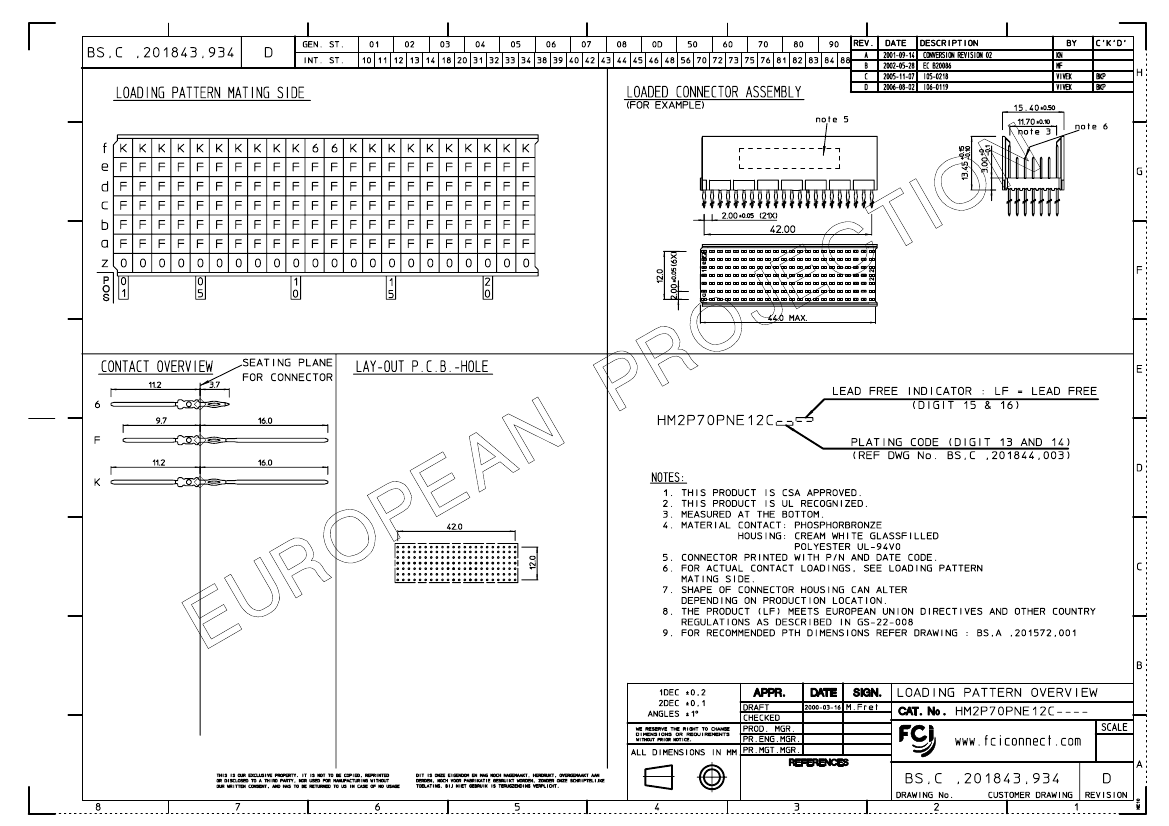

PDM: Rev:D

STATUS:

Released

Printed: Apr 15, 2008

	HM2P70PNE12CGLLF	HM2P70PNE12CGCLF	HM2P70PNE12CGC	HM2P70PNE12CGL
Description	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (40) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (40) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	132	132	132	132
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	HM2	-	HM2	HM2
