5930E-150.0000M-NSA3408J datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 5930E-150.0000M-NSA3408J

5930E-150.0000M-NSA3408J: DescriptionSine Output Oscillator, 150MHz Nom, ROHS COMPLIANT PACKAGE-5; CategoryPassive components oscillator; File Size308KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

5930E-150.0000M-NSA3408J Overview

Sine Output Oscillator, 150MHz Nom, ROHS COMPLIANT PACKAGE-5

5930E-150.0000M-NSA3408J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	1%
Manufacturer's serial number	5930E
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	150 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.632 V
physical size	30.0mm x 30.0mm x 16.0mm
Maximum supply voltage	12.6 V
Minimum supply voltage	11.4 V
Nominal supply voltage	12 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Crystal Oscillator

Model Name 5930E

■

Main Application

For communication equipment

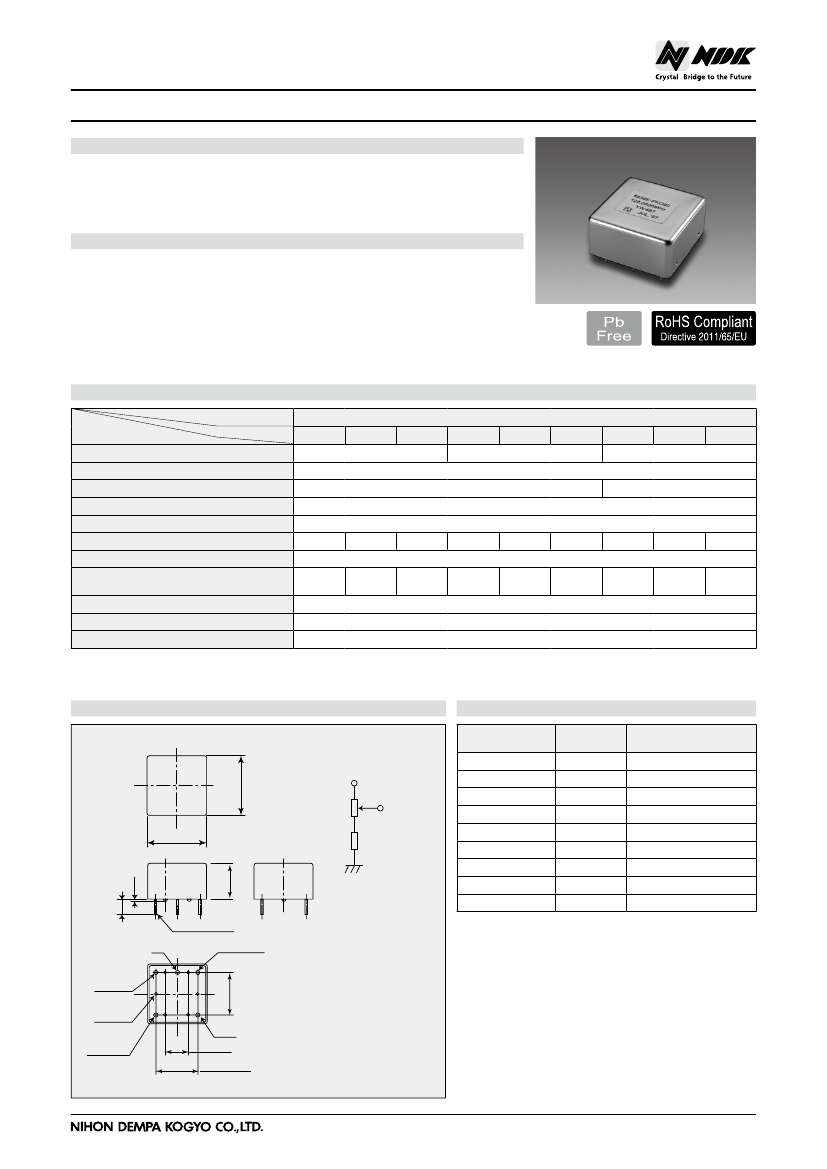

Temperature-Compensated Crystal Oscillator (TCXO) 5900 Series

■

Features

● Sine wave output.

● Stable frequencies can be obtained across a wide temperature range.

● Low power consumption.

■

Specifications

Item

Supply voltage [V

] (V)

Current consumption (mA)

Output level

Load impedance

Operating temperature range (°C)

Storage temperature range (°C)

Frequency/Temperature characteristics

Frequency/Voltage coefficient

Long-term frequency stability

Frequency adjustment range

Max.

±1 × 10

−6

±1.5 × 10

−6

±2 × 10

−6

Max. 15

Min. 1 mW (Min. 0 dBm)

50 Ω

−20 to +60 −20 to +70 −30 to +75 −20 to +60 −20 to +70 −30 to +75 −20 to +60 −20 to +70 −30 to +75

−40 to +85

Max.

±1 × 10

−6

±1.5 × 10

−6

±2 × 10

−6

Max. ±0.2 × 10

−6

Max. ±1 × 10

−6

/ year

Min. ±3 × 10

−6

(Note)

Max.

±1 × 10

−6

±1.5 × 10

−6

±2 × 10

−6

Model

Classification

5930E

AKG00

ALH00

10 to 25

AML00

BKG00

BLH00

25 to 60

+12 V ± 5 %

Max. 40

BML00

PKG00

PLH00

60 to 150

PML00

Nominal frequency range (MHz)

Note: See “FREQ.ADJ. method” with an external variable resistor used in the figure of Case Code 30E.

*If you require a product with other than standard characteristics, please contact us.

■

Dimensions

30E

FREQ ADJ. method

■

List of Ordering Codes

ref

Model Name and

Classification

5930E-AKG00

5930E-ALH00

5930E-AML00

5930E-BKG00

5930E-BLH00

5930E-BML00

5930E-PKG00

5930E-PLH00

5930E-PML00

Frequency

(MHz)

10 ≤ F < 25

25 ≤ F < 60

60 ≤ F < 150

Ordering Code

5930E-[ ]M-NSA3408C

5930E-[ ]M-NSA3408B

5930E-[ ]M-NSA3408A

5930E-[ ]M-NSA3408F

5930E-[ ]M-NSA3408E

5930E-[ ]M-NSA3408D

5930E-[ ]M-NSA3408J

5930E-[ ]M-NSA3408H

5930E-[ ]M-NSA3408G

FREQ ADJ

Max. 16

510

(1)

5− φ 0.6 ± 0.1

ref

FREQ ADJ

20.32 ± 0.5

Specify a frequency in the square brackets.

Specify the frequency in seven digits

(the decimal point is not included).

Standoff

(6 point)

OUT PUT

GND

(10.16)

20.32 ± 0.5

Tolerance ±1.0

tcxo19_101101_5930E_e
