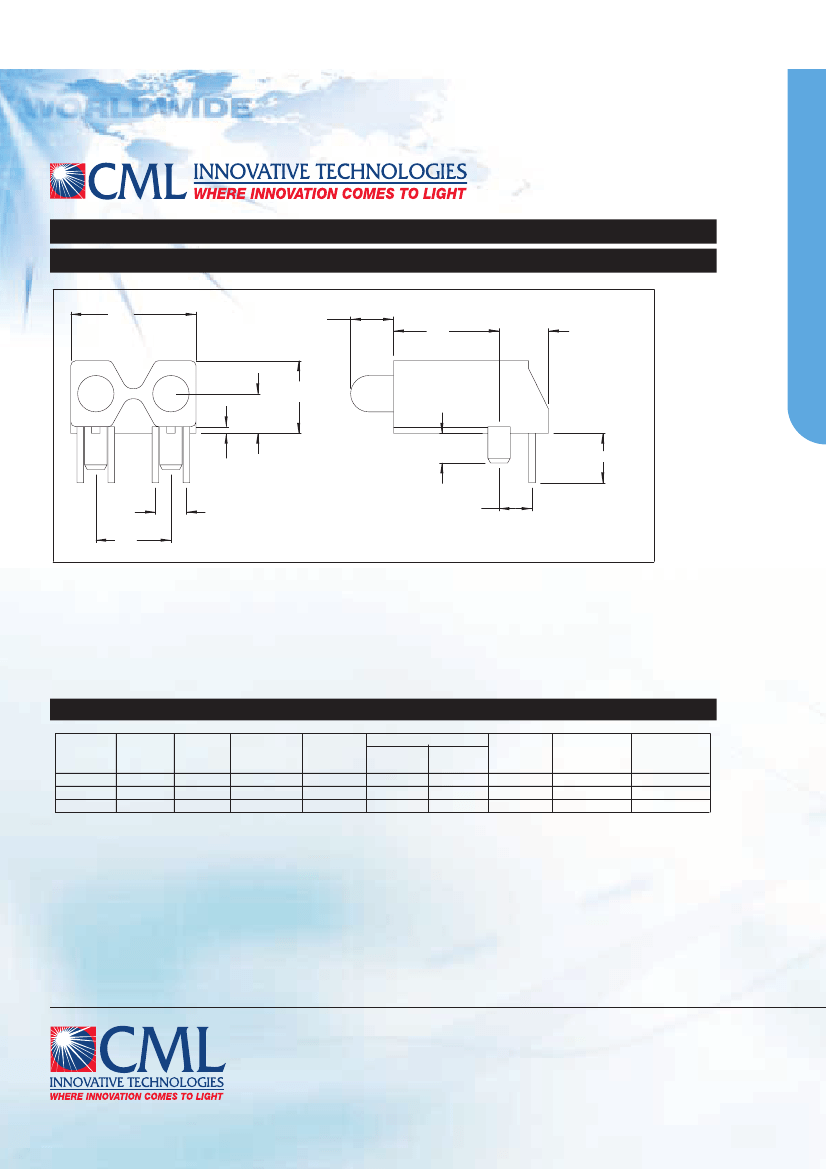

5365 Series T-1 Right Angle 2 Wide LED Assembly

DESCRIPTION AND FEATURES

.380

LE D

P OS .1

LE D

P OS .2

.130±.015

.320

.150

.220

.120

.090

.150±.020

.020

.100

T Y P .(2)

.200

.100

All dimensions in inches.

Features

• 2 T-1 LEDs mounted in single block.

• Height and spacing alignment saves assembly cost.

Housing: Black Nylon, UL94V-O

Note: Alternate LEDs are also available in this package as a standard variation.

Mounting hole pattern on page 1-X7.

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

E mitted

C olor

R ed/R ed

G reen/G reen

Y ellow/Y ellow

T ypical

Intensity

(mcd)

6.3

R ated

C urrent

(mA)

C ontinuous

F orward

C urrent Max.

(mA)

F orward V oltage

T yp.

(V )

2.0

2.2

2.1

Max.

(V )

3.0

P art Number

5365F 1;1

5365F 5;5

5365F 7;7

R everse

B reakdown

V oltage Min.

(V )

P eak

Wavelength

(nm)

650

562

585

P eak F orward

C urrent at

1MS -300 P P S

(A)

.09

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5365 Series T-1 Right Angle 2 Wide LED Assembly
