534-997-63 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 534-997-63

534-997-63: DescriptionPROFESSIONAL LED INDICATORS í8.1mm Mounting; CategoryLED optoelectronic/LED photoelectric; File Size245KB，2 Pages; ManufacturerMarl International; Websitehttps://www.leds.co.uk; Environmental Compliance

Download Datasheet Parametric Compare View All

534-997-63 Overview

PROFESSIONAL LED INDICATORS í8.1mm Mounting

534-997-63 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PAKAGE-2
Reach Compliance Code	compli
color	COOL WHITE
color@wavelength	White
Configuration	SINGLE
Maximum forward current	0.016 A
Maximum forward voltage	28 V
JESD-609 code	e4
Lens type	DIFFUSED
Nominal luminous intensity	14000.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.9 mm
method of packing	BULK
shape	ROUND
size	8.1 mm
surface mount	NO
Terminal surface	Silver (Ag)
Base Number Matches	1

Preview

Download Datasheet

View All

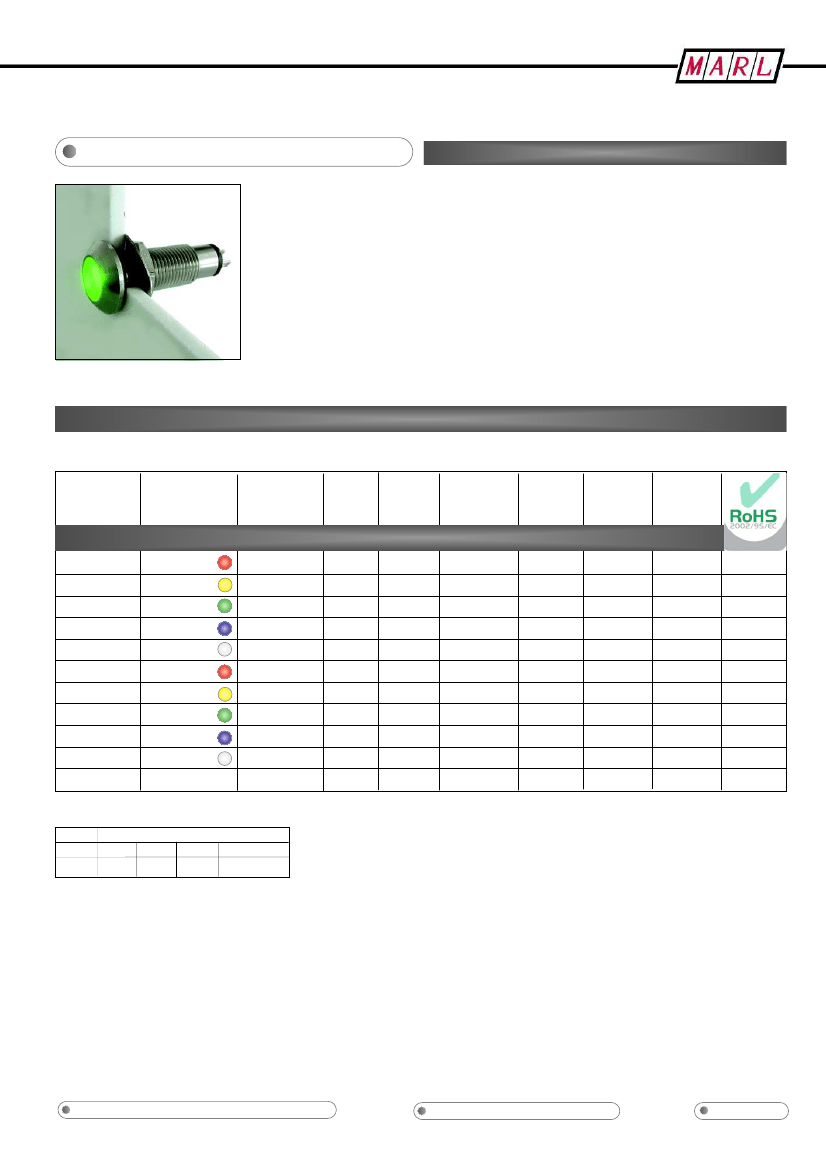

PROFESSIONAL LED INDICATORS Ø8.1mm Mounting

FEATURES

Each product will operate over a wide voltage input

range

534 SERIES

PACK QUANTITY = 10 PIECES

Robust stainless steel housing

Full internal potting to resist shock and vibration

Sealed to IP67

True Bi-polar product for low voltage DC

applications

this range

Other voltages including DC options available in

SPECIFICATIONS

Ordering Information & Typical T

echnical Characteristics (T

a = 25°C)

Mean Time Between Failure = 100,000 Hours.

PART NUMBER

COLOUR

Luminous intensity figures refer to the unmodified discrete LED.

VOLTAGE

CURRENT

LUMINOUS

WAVE

OPERATING

STORAGE

LENS

AC/DC

Vopr

DC (mA)

lopr

INTENSITY

lv@20mA (mcd)

LENGTH

λp

(nm)

TEMP

opr

TEMP

stg

HIGH INTENSITY

534-501-63

534-521-63

534-532-63

534-930-63

534-997-63

534-501-75

534-521-75

534-532-75

534-930-75

534-997-75

UNITS

Red

Yellow

Green

Blue

Cool White

Red

Yellow

Green

Blue

Cool White

Colour Diffused

12-28

110Vac

Vac/Vdc

6-16

11000

16000

23000

7000

14000

11000

16000

23000

7000

14000

mcd

643

591

527

470

*see below

643

591

527

470

*see below

-40 ~ +95^

°C

-40 ~ +100

°C

Yes

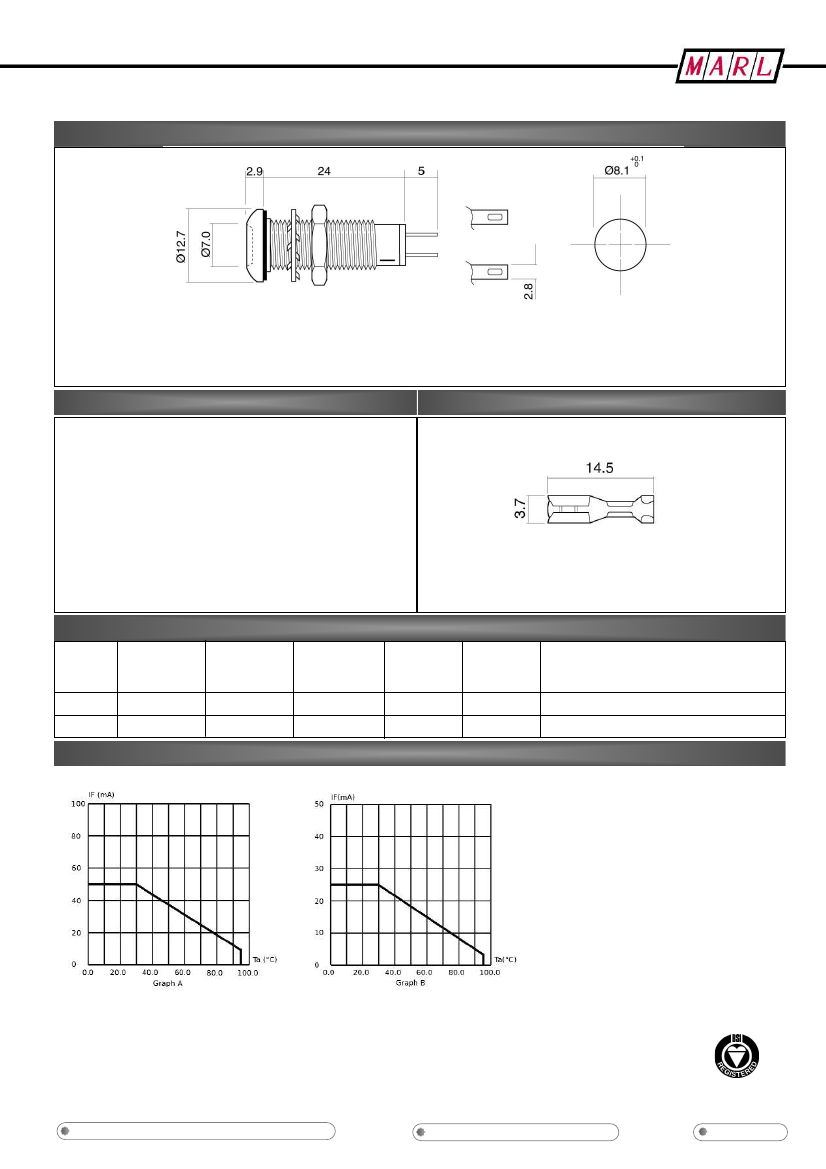

^ = Products must be derated according to the derating information. Each derating graph refers to specific LEDs. Refer to page 3.

997F-C

0.245

0.229

*Typical

emission colour cool white

0.361

0.356

0.264

Intensities (lv) and colour shades of white (x,y co-ordinates) may vary between LEDs within

a batch.

0.385

0.351

0.220

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk •

•

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Issue 2

SAMPLES AVAILABLE

Page 1 of

534-997-63 Related Products

	534-997-63	534-930-75	534-930-63	534-532-75	534-521-63	534-521-75	534-532-63	534-501-75	534-501-63
Description	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting	PROFESSIONAL LED INDICATORS í8.1mm Mounting
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2	ROHS COMPLIANT PAKAGE-2
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli
color	COOL WHITE	BLUE	BLUE	GREEN	YELLOW	YELLOW	GREEN	RED	RED
color@wavelength	White	Blue	Blue	Gree	Yellow	Yellow	Gree	Red	Red
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.016 A	0.006 A	0.016 A	0.006 A	0.016 A	0.006 A	0.016 A	0.006 A	0.016 A
Maximum forward voltage	28 V	110 V	28 V	110 V	28 V	110 V	28 V	110 V	28 V
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	14000.0 mcd	7000.0 mcd	7000.0 mcd	23000.0 mcd	16000.0 mcd	16000.0 mcd	23000.0 mcd	11000.0 mcd	11000.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	8.1 mm	8.1 mm	8.1 mm	8.1 mm	8.1 mm	8.1 mm	8.1 mm	8.1 mm	8.1 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Base Number Matches	1	1	1	1	1	1	1	1	1
peak wavelength	-	470 nm	470 nm	527 nm	591 nm	591 nm	527 nm	643 nm	643 nm
