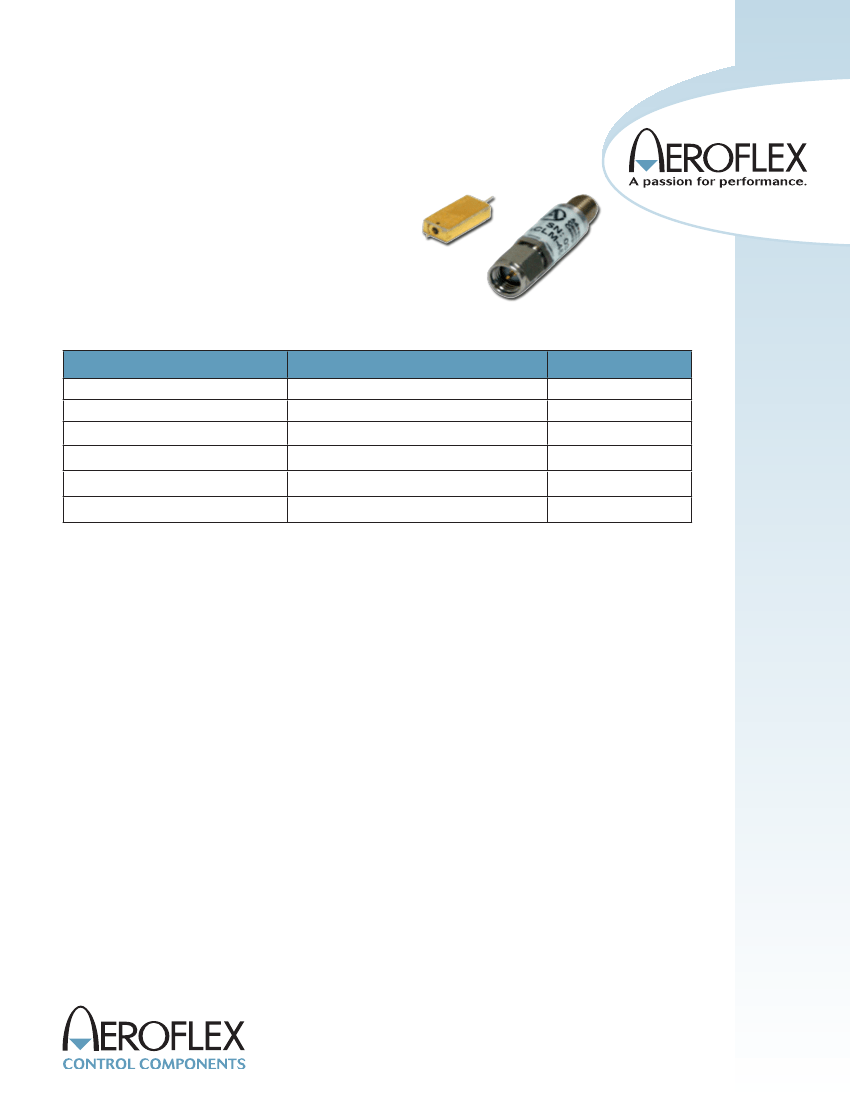

ACLM-4616F
Pin Diode Low Leakage Limiter
Features
• Low Insertion Loss
• Low Leakage Power Circuit Protection
• High CW Power Handling
• Hermetically Sealed Modules
• Assorted Package Styles
• Custom Designs Available
Specifications:
Parameter
Frequency Range (min)
Peak Input Power (max)
CW Input Power (max)
Flat Leakage (CW Power) (max)
Insertion Loss (max)
VSWR (max)
Specification
6.0 – 18.0
100.0
2.0
13.0
2.4
2.2:1
Units
GHz
W
W
dBm
dB
ratio
Notes:
Typically CW leakage is measured at mid-band with
1W input.
Higher power handling available. Contact the
factory to discuss specific requirements.
Power handling is linearly derated from full power at
+25°C to zero power at +150°C
SCREENING:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
OPTIONAL HIGH-REL SCREENING
(Ref MIL-PRF-38534):
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method
2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/acc, email: acc-sales@aeroflex.com
Revision Date: 2/23/2011

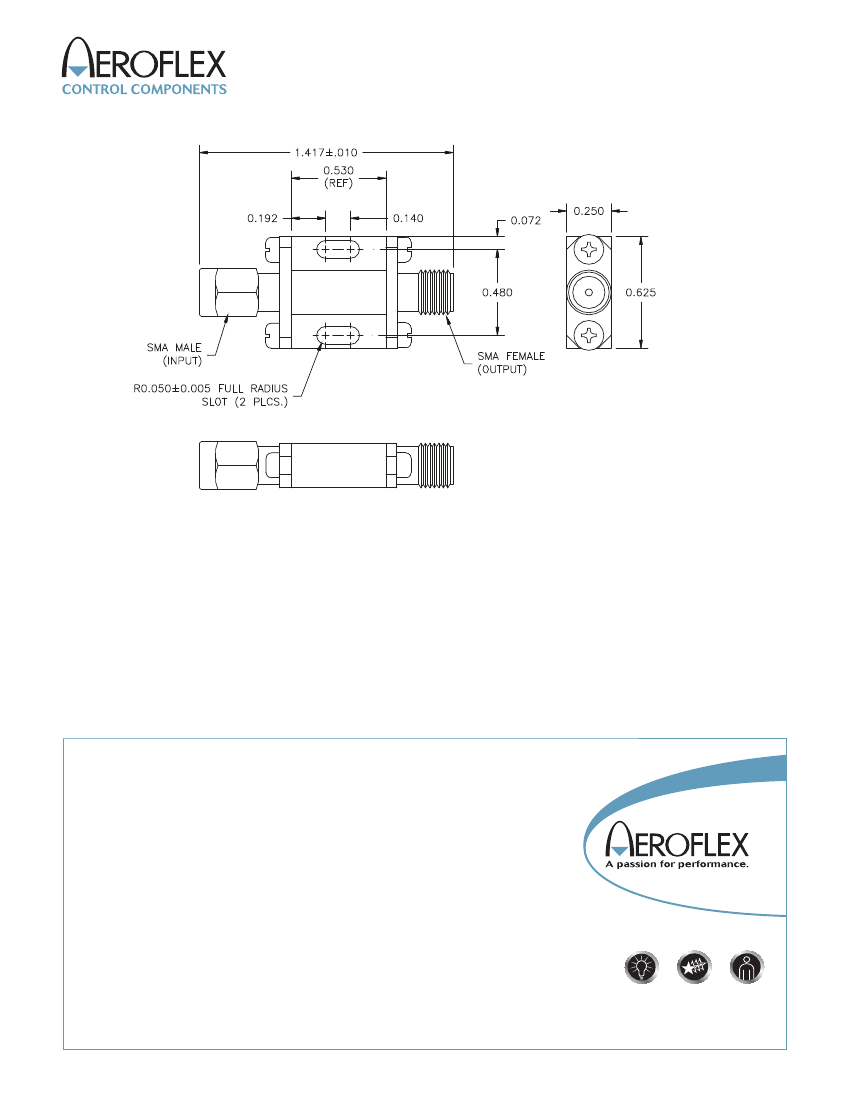

Outline Drawing:
STANDARD CASE STYLE C36
(Optional Case Styles – C37, M22)
Part Number Ordering Information:
•
•
•
•
Add desired case style suffix: “C36” (Ex: ACLM-4616FC36)
Add “R” suffix: Reverse Connector Configuration (Ex: ACLM-4616FC36R) (SMA Female
Input/SMA Male Output)
Add “1K” suffix: High power handling version: (Ex: ACLM-4616FC36R1K)
Add “-RC” suffix: RoHS-compliant (Ex: ACLM-4616FC36R1K-RC)
