7311S-DF-104X-FREQ-NSA3346A: DescriptionCRYSTAL OSCILLATOR, CLOCK, 62.5MHz - 220MHz, PECL OUTPUT, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size85KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric View All

7311S-DF-104X-FREQ-NSA3346A Overview

CRYSTAL OSCILLATOR, CLOCK, 62.5MHz - 220MHz, PECL OUTPUT, ROHS COMPLIANT PACKAGE-6

7311S-DF-104X-FREQ-NSA3346A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	unknown
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Maximum operating frequency	220 MHz
Minimum operating frequency	62.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature
Oscillator type	PECL
Output load	50 OHM
physical size	7.0mm x 5.0mm x 1.7mm
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

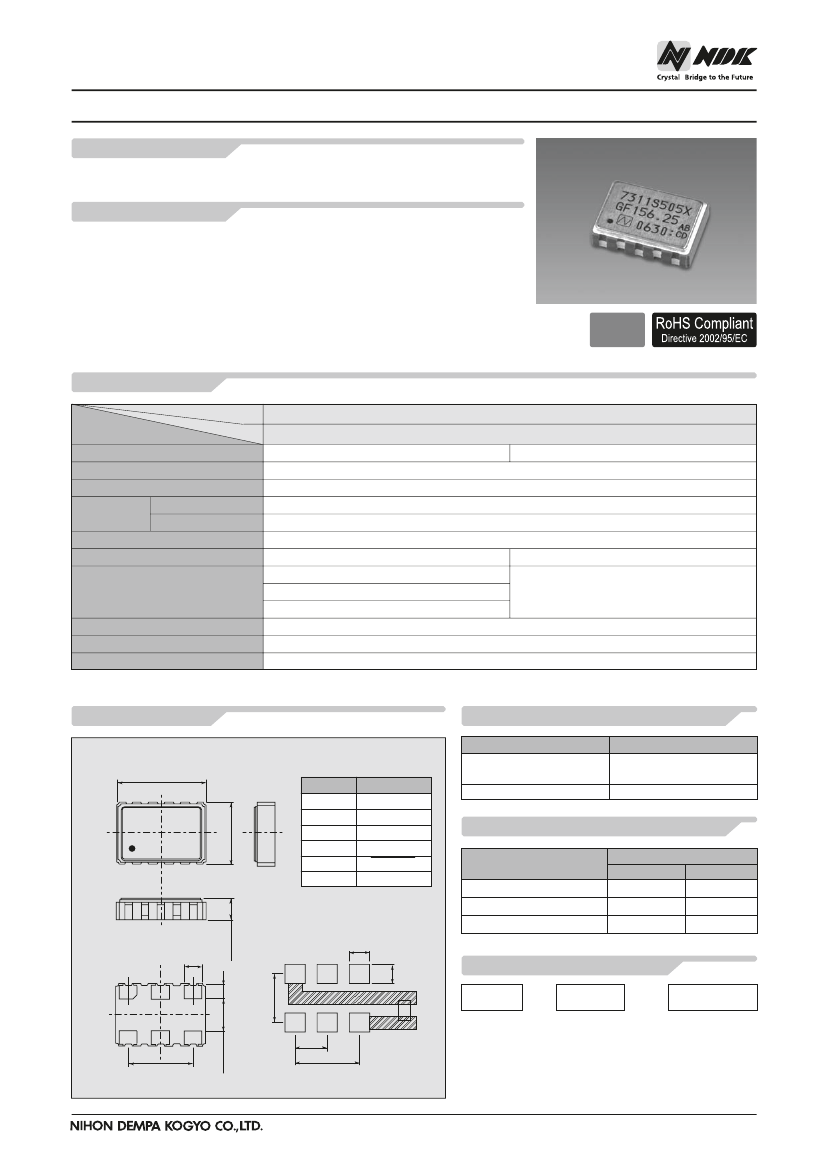

Crystal Oscillator

Model Name 7311S-DF

Main Application

For SONET-, SDH-, and GbEthernet-related equipment

Simple Packaged Crystal Oscillator (SPXO) 7300 Series

Features

Power supply voltage is 2.5V, LV-PECL output level.

Output frequency range are 62.5 to 313 MHz.

Ultra-compact with dimensions of 7.0 x 5.0 x 1.7 mm.

Surface-mount crystal oscillator.

Free

Specifications

Item

Model

Classification

62.5 to 220

+3.3 ± 10 %

50 (to VCC−2.0 V)

During operation

During standby

0 to +70, 0 to +85

Max. ±25×10 / 0 to +70 ℃ (255R)

Frequency stability

Duty cycle (%)

Phase jitter (RMS)

Standby function (tristate)

Max. ±50×10

−6

/ 0 to +85 ℃ (505X)

Max. ±100×10

−6

/ 0 to +85 ℃ (104X)

−6

7311S

DF-XXXX (XXXX : 255R, 505X, 104X)

220 to 313

Nominal frequency range (MHz)

Power supply voltage [VCC] (V)

Load (Ω)

Current

consumption

Output level

Operating temperature range (℃)

Max. 90 mA (60 mA typ.)

Max. 30 μA

PECL level (Complementary)

0 to +85

Max. ±50×10

−6

/ 0 to +85 ℃ (505X)

Max. ±100×10

−6

/ 0 to +85 ℃ (104X)

45 to 55 (at 50 % Waveform)

Max. 1 ps (12 kHz to 20 MHz)

Available

Dimensions

7.0 ± 0.1

Standby Function Table (Tristate)

#1 Input

Level H (V

≥ 0.7 V

)

or OPEN

Level L (V

≤ 0.3 V

)

#4 and #5 output

Oscillation output ON

High impedance

PAD No.

5.0 ± 0.1

Connection

STAND-BY

N.C

GND

OUTPUT

VCC

Number for specifying an order (+3.3V LV-PECL)

Comprehensive

frequency stability

Max. ±25×10

−6

/0 to 70 °C

Max. ±50×10

−6

/0 to 85 °C

Max. ±100×10

−6

/0 to 85 °C

Nominal frequency range (MHz)

62.5 ≤ F < 220 220 ≤ F ≤ 313

−

NSA3344A

NSA3345A

NSA3346A

NSA3345E

NSA3346E

1.7 ± 0.2

Reference land pattern

1.6

1.5

1.4 ± 0.1

1.2 ± 0.1

How to Specify an Order

Model name

3.9

–

Frequency

(up to 8 digits)

M –

Number for

specifying an order

2.6 ± 0.1

2.54

5.08

Cby=0.01μF

When ordering +3.3 V, Max. ±100×10

−6

/0 to 85°C, 156.25 MHz

7311S-DF-104X-156.25M-NSA3346A

If you have any queries concerning our standard frequencies

and numbers for specifying orders, please contact our sales

representatives or visit our homepage (http://www.ndk.com/).

5.08 ± 0.1

co25_080919_7311S-DF_e
