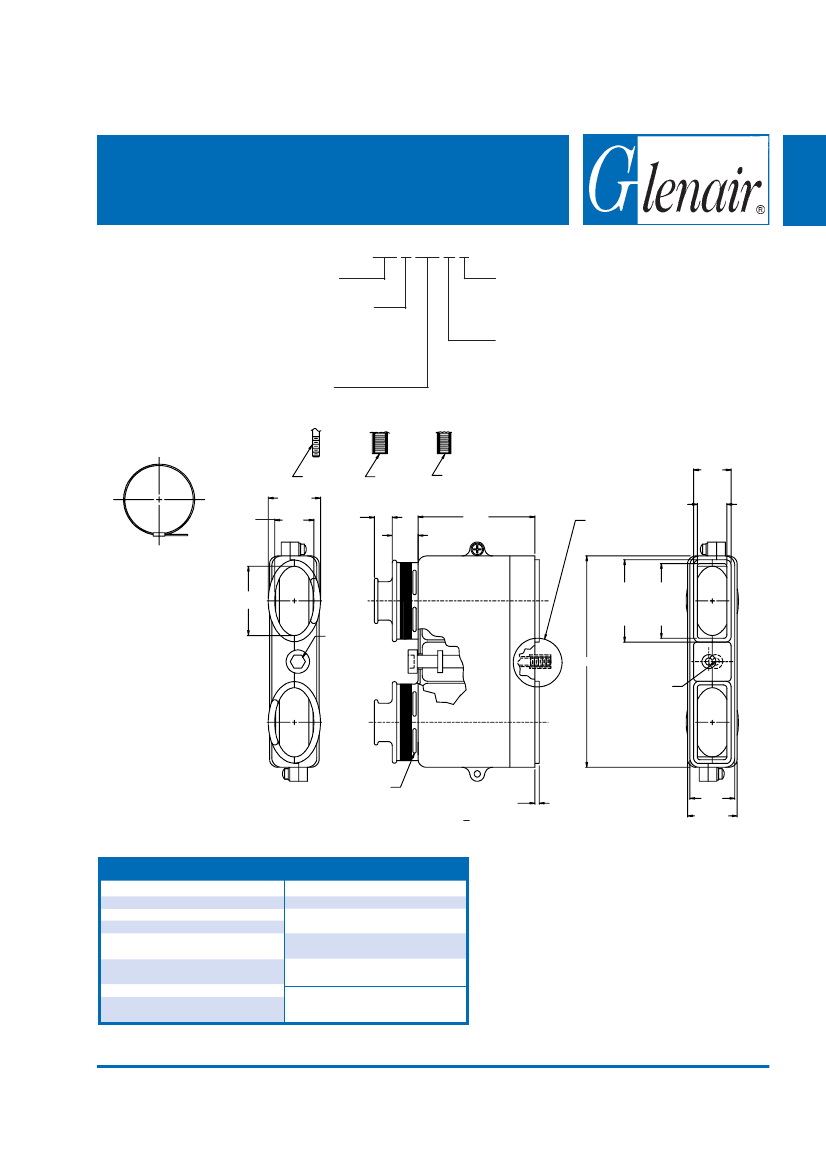

for Boeing BACC65 and Radiall 617610100 Connectors
527 A 265 M B
Product Series
Connector Designator
A = Radiall 617610100
B = Boeing BACC65 and
Radial EPXB
Basic Number
B = Band (2 Each Supplied)
K = Coiler Band (2 Each Supplied)
(Omit for None)
Finish (Table I)
A
B
C
.553
(14.0)
Max
K
Band
.690
(17.5)
Max
.830
(21.1)
Max
6-32
M8 x .75
M7 x .75
2.000
(50.8)
.470
(11.9)
Min
.320
(8.1)
.440
(11.2)
Connector
Mounting Screw
1.000
(25.4)
Max
1/4 Socket
Head
1.159 1.072
(29.4) (27.2)
Max
Min
2.966 (75.3)
Floating
Mounting
Screw
Slots
8 Places
.051 (1.3)
+.005 (0.1)
.718
(18.0)
.790
(20.1)
Max
TABLE I: FINISH OPTIONS
Symbol
B
C*
G*
J
LF
M
N
Finish
Symbol Finish
Cadmium Plate/Olive Drab
NC
Zinc Cobalt/Dark Olive Drab
Cadmium Plate/Olive Drab over
Black Anodize
NF
Anodic Hard Coat
Electroless Nickel
Gold Iridite over Cadmium Plate
T
Cadmium Plate/Bright over
over Electroless Nickel
Electroless Nickel
Cadmium Plate/Bright over
U**
Cadmium Plate/Black
Electroless Nickel
ZN
Zinc-Nickel Alloy/Olive Drab
Electroless Nickel
*Anodize finish is not suitable for EMI shielding or grounding
Cadmium Plate/Olive Drab over
applications. to corrosion resisting steel backshells and
**Applicable
Electroless Nickel
accessories. Consult factory for other available finishes.
Metric dimensions (mm) are indicated in parentheses
Printed in U.S.A.
© 2004 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-15
Miscellaneous
Rectangular
Backshells
527-265
EMI/RFI Elliptical Qwik-Ty
®
Straight Banding Backshell
