PT08CP-18-11PY(003) datasheet, PDF

Datasheet> All Categories > The connector> The connector> PT08CP-18-11PY(003)

PT08CP-18-11PY(003): DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT08CP-18-11PY(003) Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

PT08CP-18-11PY(003) Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACT: 10-314980-16P
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	PT08CP
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

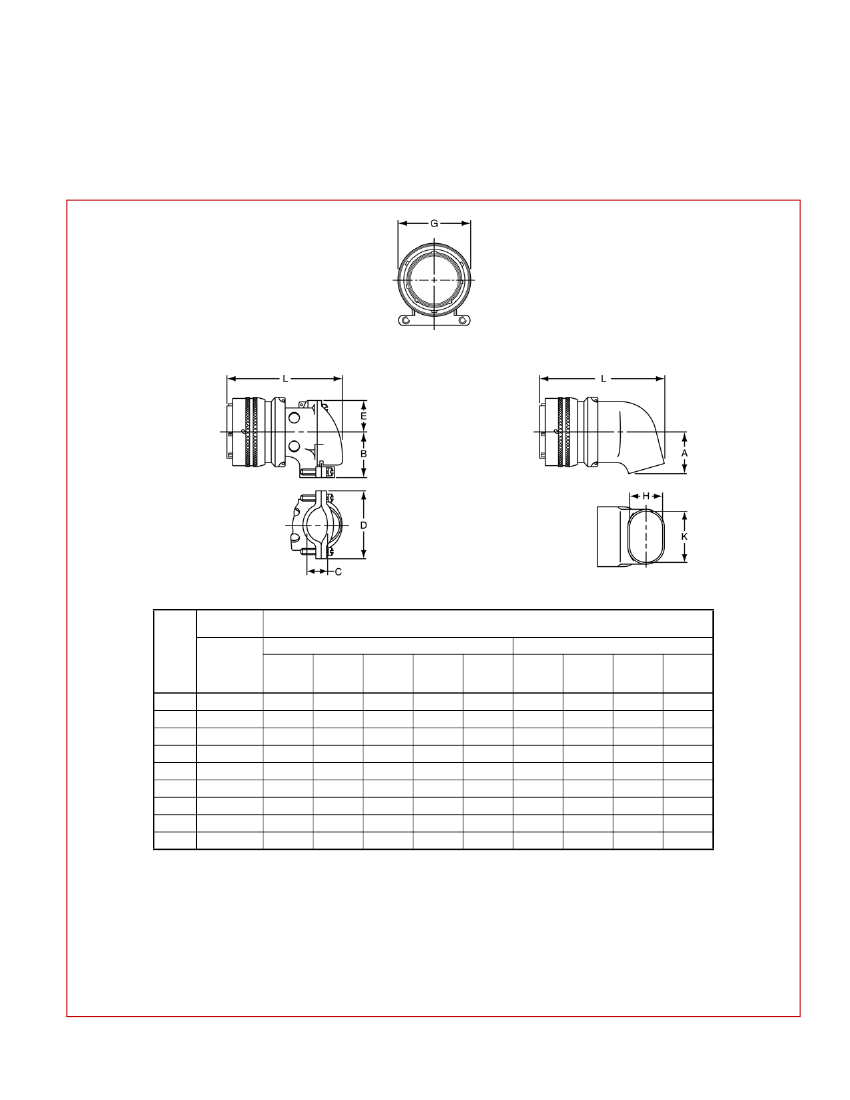

PT08 CE

SP08 CE

90 degree plug

TERMINATION ASSEMBLIES

“CE” Open Wire Seal, “CE” (SR) Strain Relief

“CP” Potting Boot 75 °

PT08CE-XX-XXX

SP08CE-XX-XXX

PT08CE-XX-XXX (SR)

SP08CE-XX-XXX (SR)

PT08CP-XX-XXX

SP08CP-XX-XXX

To complete part number see how to order on page 42.

All lockwire holes are .044 Dia. Min.

Plug

Front View

Class “CE”, “CE” (SR)

Shell

Size

Dia.

Max.

±.031

+.010

–.025

±.062

+.047

–.025

±.057

±.025

Plug

Side View

Class “CP”

±.015

Max.

.796

.921

1.046

1.171

1.297

1.422

1.562

1.672

1.797

.655

.749

.812

.905

1.030

1.015

1.077

1.139

1.265

.169

.170

.264

.310

.330

.444

.510

.515

.656

.941

1.191

1.254

1.316

1.562

1.625

1.719

1.751

.339

.393

.450

.519

.583

.621

.683

.739

.797

1.986

2.080

2.165

2.313

2.515

2.623

2.739

2.785

3.024

.469

.547

.625

.734

.750

.781

.859

.906

1.169

.312

.438

.516

.625

.656

.703

.766

.812

.918

.438

.562

.688

.781

.890

1.000

1.125

1.234

1.374

1.906

2.031

2.093

2.203

2.250

2.296

2.343

2.390

2.624

All dimensions for reference only.
