M8805/101-003: DescriptionSnap Acting/Limit Switch, Momentary, 5A, 28VDC, 0.1mm, Auxiliary Lever Type Actuator; CategoryMechanical and electronic products switch; File Size865KB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com

Download Datasheet Parametric View All

M8805/101-003 Overview

Snap Acting/Limit Switch, Momentary, 5A, 28VDC, 0.1mm, Auxiliary Lever Type Actuator

M8805/101-003 Parametric

Parameter Name	Attribute value
Maker	OTTO
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	0.1 mm
Actuator type	AUXILIARY LEVER TYPE
body width	5.08 mm
body height	8.89 mm
Body length or diameter	12.95 mm
Contact (AC) maximum rated R load	5A@115VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	M8805/101
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Switch action	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	GOLD OVER NICKEL

Preview

Download Datasheet

View All

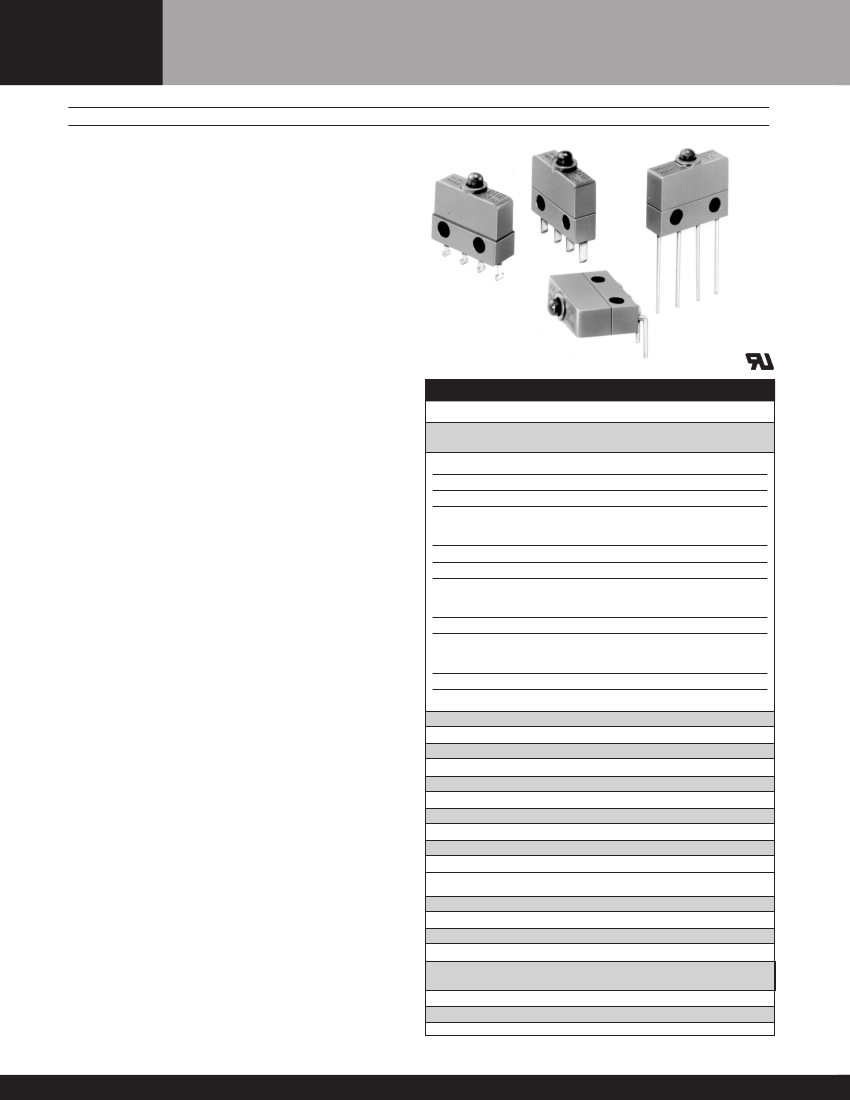

BASIC

SWITCHES

BASIC SWITCHES

COMMERCIAL & MILITARY GRADES, SUBMINIATURE DOUBLE BREAK, SNAP-ACTION

PC Pins

MIL-PRF-8805/76 (0.200 inches wide)

OTTO’s B3-22000 series is a sub-subminiature switch that meets

all requirements of MIL-PRF-8805/76. Designed to switch at least

one million mechanical cycles, the B3 surpasses the requirements

of the military in these categories: contact resistance less than

25mΩ, contact pressure, contact bounce and overall cycle life.

For MIL-PRF-8805/76 requirements, B3-22141 has standard silver

with gold contacts, SPDT double break two circuit (Form Z), solder

terminals in thermoset case material. Gold plate contacts are

available for non-military applications. UL recognized and CSA

certified models available.

Wire Wrap

Terminals

Solder Turret

Terminals

MIL-PRF-8805/101 (0.156 inches wide)

For your really difficult projects, try OTTO’S B3 series. They meet

the OTTO inspired MIL-PRF-8805/101 specification. Only 0.156”

thick, think of all those extra 0.044” you can use in those tight

ganged jobs. With the B3 series, you can get an extra pole in

where only four MIL-PRF-8805/76s fit, with room to spare.

Examine the characteristics. With the MIL-PRF-8805/101, the only

thing you give up is the extra space the MIL-PRF-8805/76 takes.

Cycle life, very low contact resistance, higher than normal

contact pressures, minimal contact bounce...everything is

exactly as provided by the MIL-PRF-8805/76 specification.

For MIL-PRF-8805/101 requirements, B3-11141 (PC pin) and

B3-12141 (turret) have silver with gold contacts and SPDT double

break (Form Z) contact. For commercial applications, a variety of

contact forms, special forces and gold plate contacts are

available. Most versions are also UL recognized and CSA certified.

Great circuit versatility is available with either switch style. You

have your choice of normally open (Form X) or closed (Form Y),

3 terminal (Form C) and 4 terminal (Form Z) SPDT double break.

Right Angle

PC Terminals

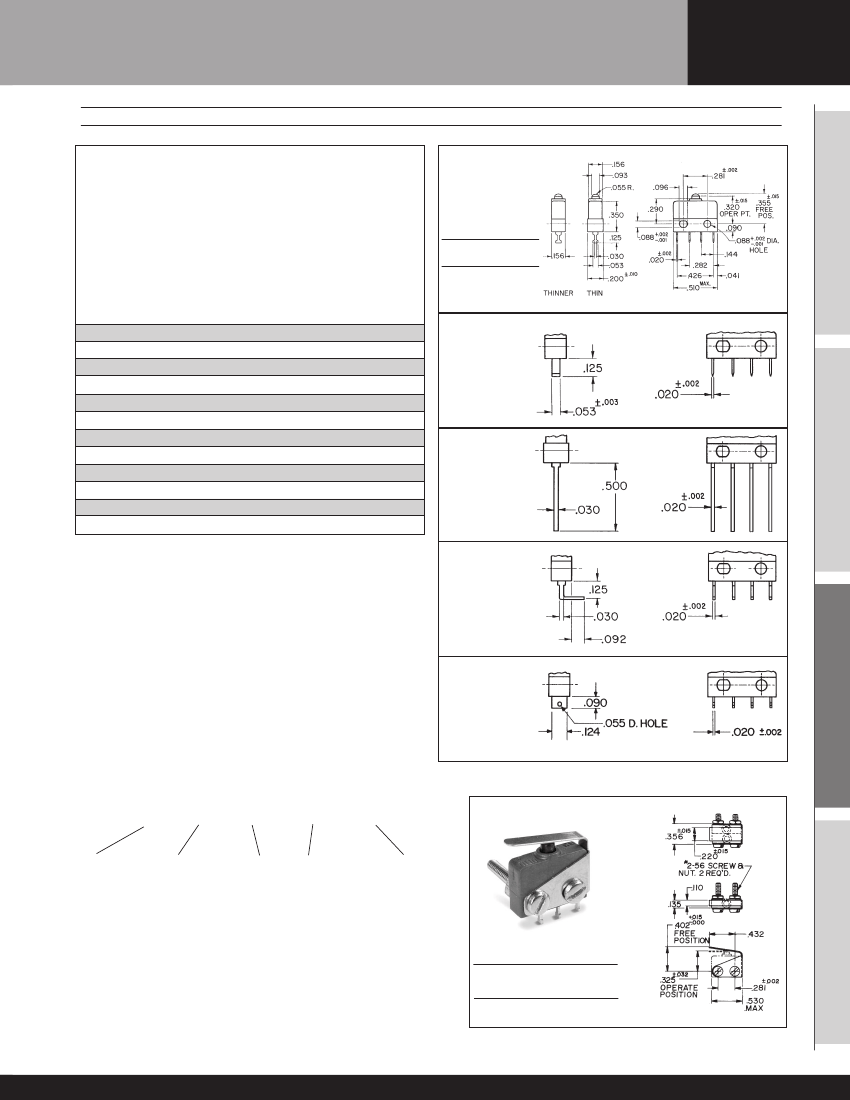

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Circuitry

Load

Sea Level

@ 28VDC

2.5A

N/A

70,000 feet

@ 28VDC

1.5A

N/A

Sea Level @

115VAC, 60/400Hz

N/A

SPST-NO or NC Resistive

Form Z

Form C

Gold Contacts

SPST-NO or NC Inductive*

Form Z

Form C

Gold Contacts

Double Break Lamp

2 Circuit

*L/R = 0.026

Lamp

1050Vrms

N/A

400Vrms

Features:

•

Low level switching capability

Less than 25mΩ contact resistance

Up to 8 amps switching capability

Button accepts actuation directly from a cam

Choice of 0.156" & 0.200" wide models

Choice of six standard terminal styles

Available in Commercial & Military grades

UL recognized & CSA certified

Qualified under MIL-PRF-8805/76 & MIL-PRF-8805/101

Motor

DWV

Low Level:

Electrical Life:

Mechanical Life:

Seal:

Operating Force:

Release Force:

Operate Point:

Overtravel:

Gold contacts 10mA @ 30mV

50,000 cycles at full load

1 million cycles

Unsealed

5 oz +3/-2 oz typical to 6 oz max

1.5 oz min

0.320 +/- 0.015 inches from mounting holes

0.004 inches min

Operating Temp Range:

-65°C to +125°C

Movement Differential:

0.018 +/- 0.008 inches

MATERIALS:

Case:

Cover:

Thermoset, blue

Thermoplastic, blue

Thermoplastic, black

Brass, gold over nickel

Stationary: Silver with gold plate

Moveable: Silver with gold plate

None provided

APPLICATIONS

OTTO sub-subminiature switches are designed to meet all

applications requiring MIL-PRF-8805/76 or MIL-PRF-8805/101

switches. Basic switches are designed for miniature spaces

where cam or other limit actuators are used. In addition, toggle,

pushbutton and lever actuators can be provided.

OTTO Full Line Catalog

Button:

Terminals:

Contacts:

Terminal Hardware:

Mounting Hardware:

Specifications Subject To Change Without Notice
