527-142BLST: DescriptionSolid TAG Ring EMI/RFI Backshell; File Size73KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Compare View All

527-142BLST Overview

Solid TAG Ring EMI/RFI Backshell

Preview

Download Datasheet

View All

ARINC Series

400 (Cannon)

527-142

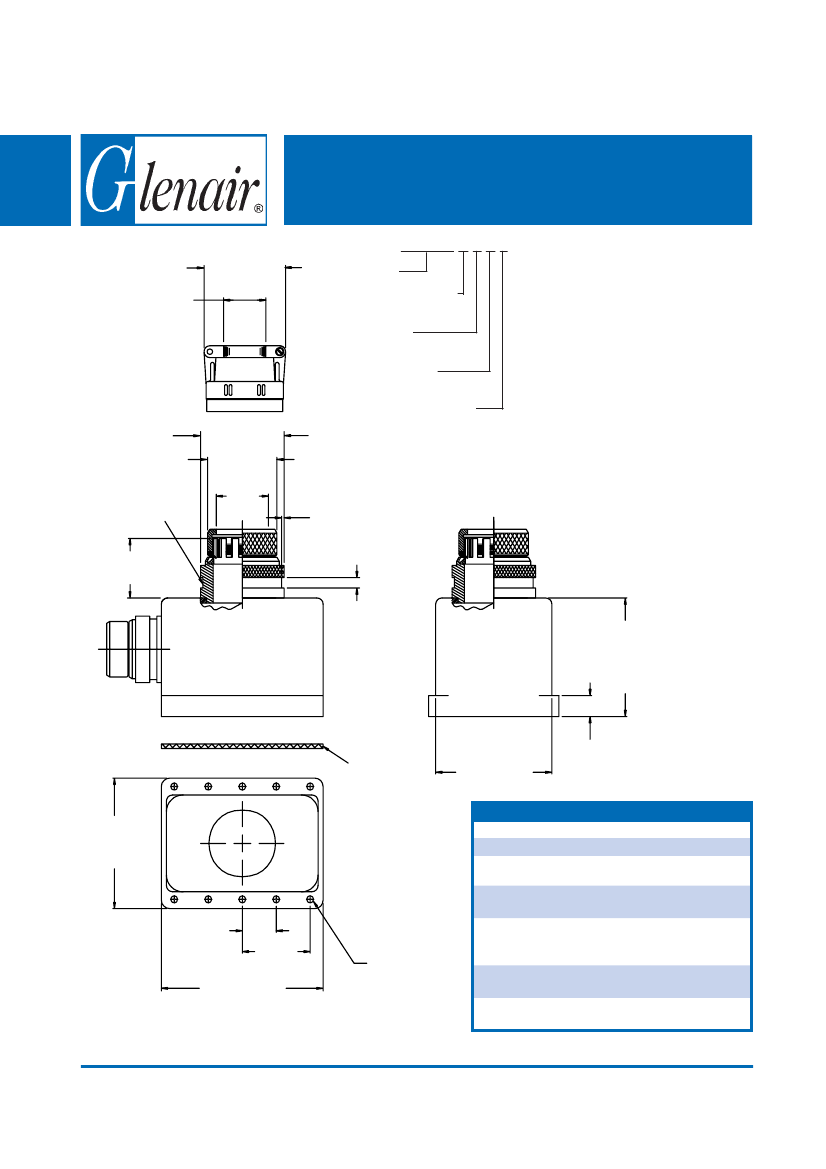

Solid TAG Ring

EMI/RFI Backshell for

Cannon DPX4 Series Connectors

527-142 B L S T

1.84 (46.7)

Max

Cable Range

1.25 (31.8) Max

1.06 (26.9) Min

Style L

Strain Relief

Basic Part No.

Finish (Table I), Omit for

Electroless Nickel

L = Strain Relief,

Omit for Gland Nut

S = Side Entry (Omit

for Top)

T = Shrink Boot (Raychem

P/N 202K174-25-0)

Provided, Omit for None

1. Metric dimensions (mm) are indicated

in parentheses.

2. Material/Finish:

Backshell, Tag Ring Body and

Clamp = Al Alloy/Finish per

Part Number Development

TAG Ring

Nut = Al Alloy/Gold Iridite

TAG Ring

Spring = Beryllium

Copper/Gold Plate

Hardware = SST/Passivate

RFI Gasket = Monel and

Silicone

1.84 (46.7)

1.67 (42.4)

Max

1.25

(31.8)

Shrink Boot

Accomodation

Typ.

.88 (22.4)

Max

.077 (2.0)

.069 (1.8)

Gland Nut

Top Entry

.135 (3.4)

± .005 (.1)

Side Entry

2.50 (63.5)

Top Entry

2.00 (50.8)

RFI Gasket

2.77 (70.4)

Max

.500 (12.7)

2 Places

TABLE I - FINISH OPTIONS

3.110

(79.0)

Symbol Finish

Cadmium Plate, Olive Drab

Iridite, Gold Over Cadmium Plate

over Nickel

Cadmium Plate, Olive Drab, Over

Nickel

Cadmium Plate, Olive Drab, Over

Electroless Nickel (1000 Hour

Salt Spray)

Cadmium Plate, Bright Dip Over

Nickel (500 Hour Salt Spray)

CONSULT FACTORY FOR

OTHER AVAILABLE FINISHES

Printed in U.S.A.

.930 (23.6)

1.648

(41.9) Typ.

3.86 (98.0)

#4-40 Thread

10 Places

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

G-14
