EG-8-271S

Description
Data Line Filter, 8 Function(s), 50V, 5A, ROHS COMPLIANT PACKAGE-24
CategoryAnalog mixed-signal IC    filter
File Size174KB,1 Pages
ManufacturerNEC TOKIN ( KEMET Corporation )
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

EG-8-271S Overview

Data Line Filter, 8 Function(s), 50V, 5A, ROHS COMPLIANT PACKAGE-24

EG-8-271S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNEC TOKIN ( KEMET Corporation )
package instructionROHS COMPLIANT PACKAGE-24
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance270 µF
filter typeDATA LINE FILTER
high10.5 mm
Minimum insulation resistance1000 MΩ
length23 mm
Manufacturer's serial numberEG
Installation typeTHROUGH HOLE MOUNT
Number of functions8
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
physical sizeL23.0XB8.0XH10.5 (mm)/L0.906XB0.315XH0.413 (inch)
Rated current5 A
Rated voltage50 V
width8 mm
Base Number Matches1
DIP Type
EMC Filter
Feedthrough Capacitor Filters
EG Series
[RoHS Compliant]
[RoHS Compliant]
Model
EG-„-„„„„
• Withstanding voltage: 125VDC
Rated voltage
DC (V)
50
• Insulation resistance: 1000M
Rated current
(A) max.
5
Operating
temperature range
(˚C)
–25 to +85
Storage
temperature range
(˚C)
–40 to +100

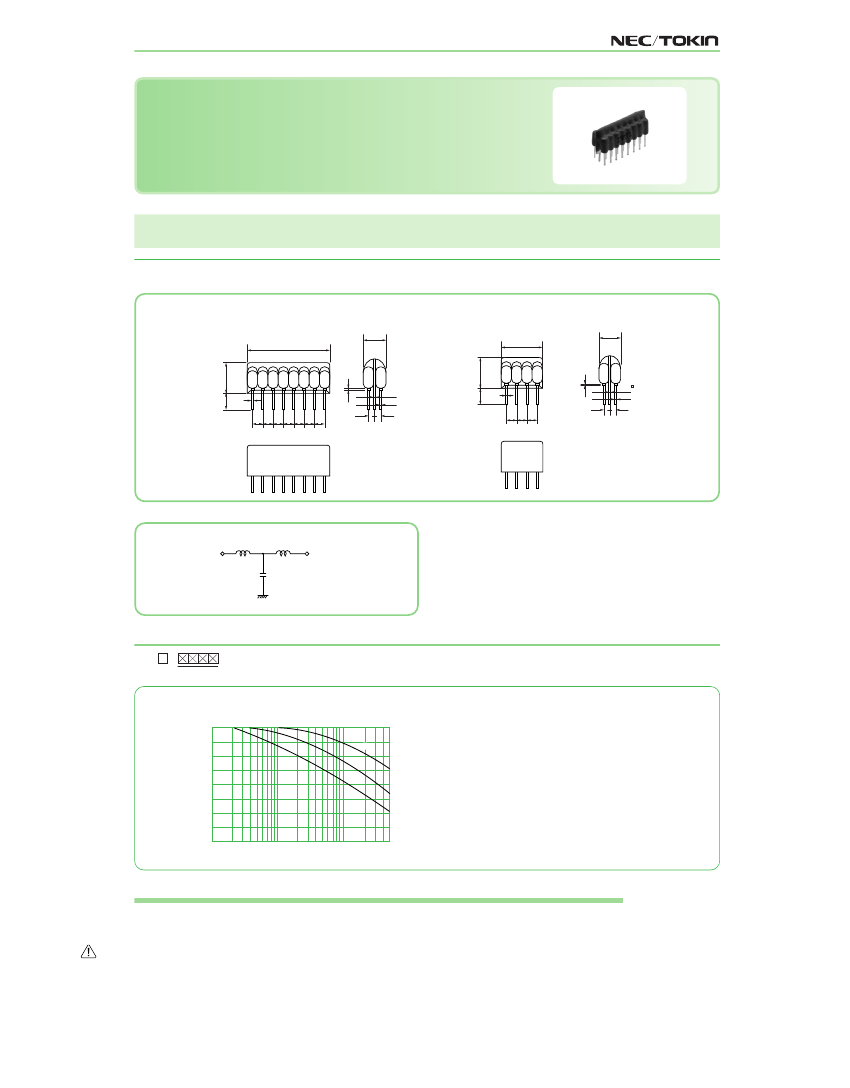

Shape and Dimensions
bEG-8
type
23 max.
10.5 max.
10.5 max.
0.2 mm
8.0 max.
bEEG-4
type
12 max.
0.2 mm
8.0 max.
3.8±0.5
3.8±0.5
0.5±0.1
a a a a a a a
a=2.54±0.2
A BC
0.5
0.3±0.1
5.08±0.4
0.5±0.1
a a a
a=2.54±0.2
A BC
0.5
0.3±0.1
5.08±0.4
470S
470S
[mm]
Circuit Diagram
(Circuit per one line)
Numbering System
EG —
3:3 line, 4:4 line, 8:8 line
470S : 47pF, 101S : 100pF, 271S : 270pF, 471P : 470pF, 102P : 1,000pF
Attenuation Characteristics
0
470S
Attenuation (dB)
20
271S
102P
40
60
1
10
100
500
Frequency (MHz)
DC Line Filters VOL.08
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.03.06 P0913MCDF10VOL08E
