SW2218A datasheet, PDF - EEWORLD Datasheet

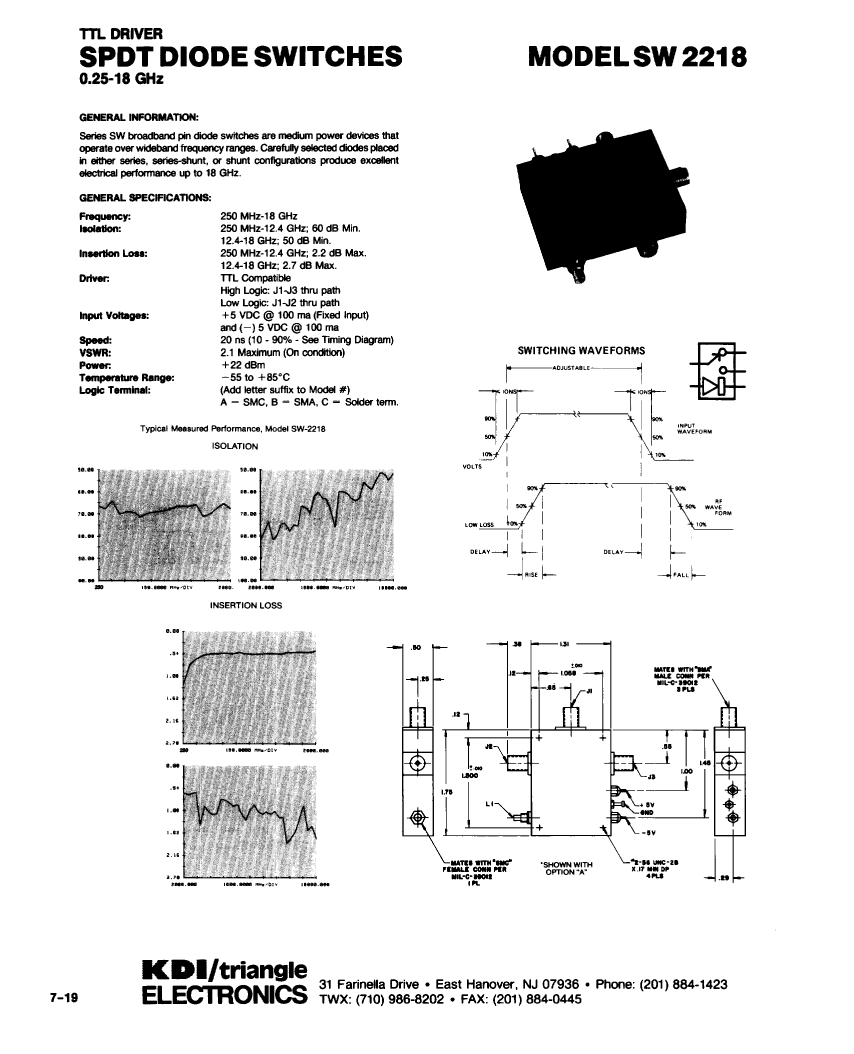

SW2218A: DescriptionRF/Microwave Switch, 250 MHz - 18000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 2.7 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size156KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

SW2218A Overview

RF/Microwave Switch, 250 MHz - 18000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 2.7 dB INSERTION LOSS

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	TTL COMPATIBLE
Maximum input power (CW)	22.04 dBm
Maximum insertion loss	2.7 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	250 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPDT
Maximum voltage standing wave ratio	2.1
Base Number Matches	1

	SW2218A	SW2218C	SW2218B
Description	RF/Microwave Switch, 250 MHz - 18000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 2.7 dB INSERTION LOSS	RF/Microwave Switch, 250 MHz - 18000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 2.7 dB INSERTION LOSS	RF/Microwave Switch, 250 MHz - 18000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 2.7 dB INSERTION LOSS
Reach Compliance Code	unknown	unknown	unknown
Other features	TTL COMPATIBLE	TTL COMPATIBLE	TTL COMPATIBLE
Maximum input power (CW)	22.04 dBm	22.04 dBm	22.04 dBm
Maximum insertion loss	2.7 dB	2.7 dB	2.7 dB
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz
Minimum operating frequency	250 MHz	250 MHz	250 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPDT	SPDT	SPDT
Maximum voltage standing wave ratio	2.1	2.1	2.1
Base Number Matches	1	1	1
Maker	Cobham PLC	-	Cobham PLC
