50539-A033A datasheet, PDF - EEWORLD Datasheet

50539-A033A: DescriptionBoard Connector, 140 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size154KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

50539-A033A Overview

Board Connector, 140 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Board mount options	HOLE .112-.124
body width	0.673 inch
subject depth	0.585 inch
body length	6.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S132P8
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	HYBRID
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	50539
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	140
UL Flammability Code	94V-0
Base Number Matches	1

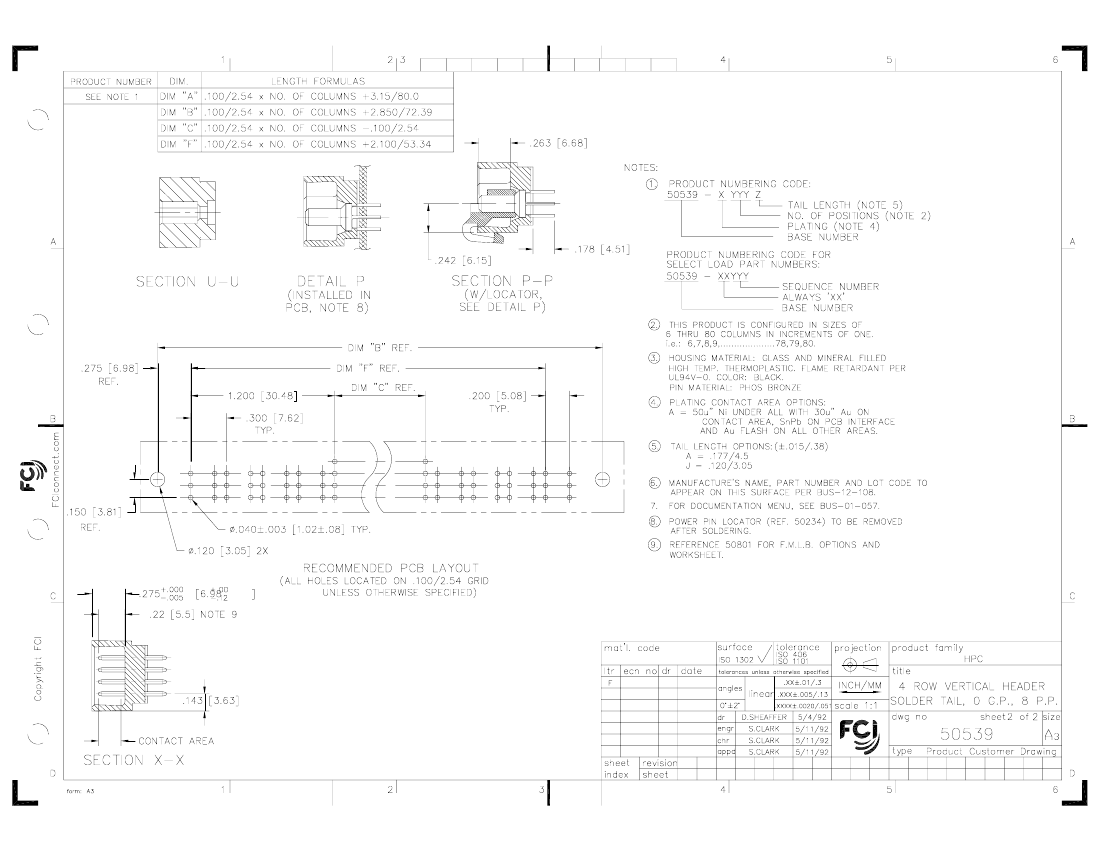

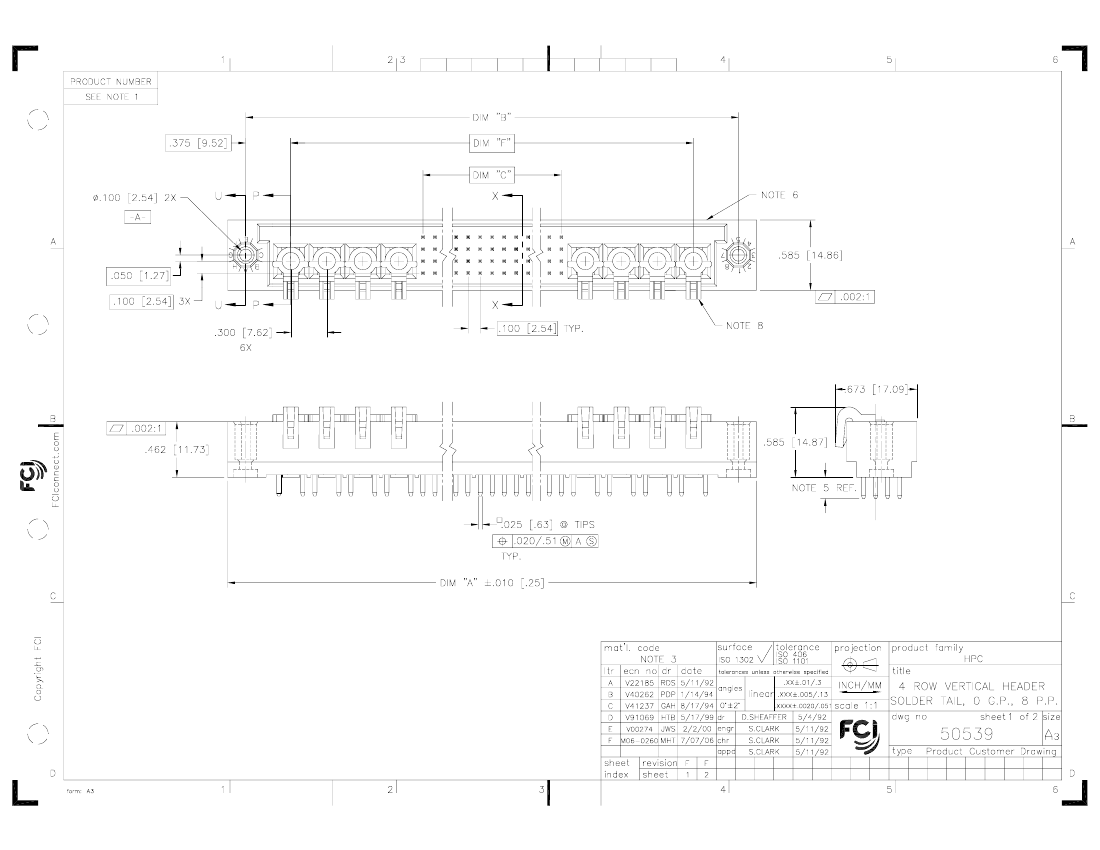

PDM: Rev:F

STATUS:

Released

Printed: May 13, 2011

.
