A4PDM: DescriptionRF Connector, Male, Cable Mount, Solderless Terminal, Plug; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

A4PDM Overview

RF Connector, Male, Cable Mount, Solderless Terminal, Plug

A4PDM Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: DIN 47223; IEC 169-4
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
Insertion loss	0.11 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	7/16
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	5.2 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDERLESS
Base Number Matches	1

Preview

Download Datasheet

View All

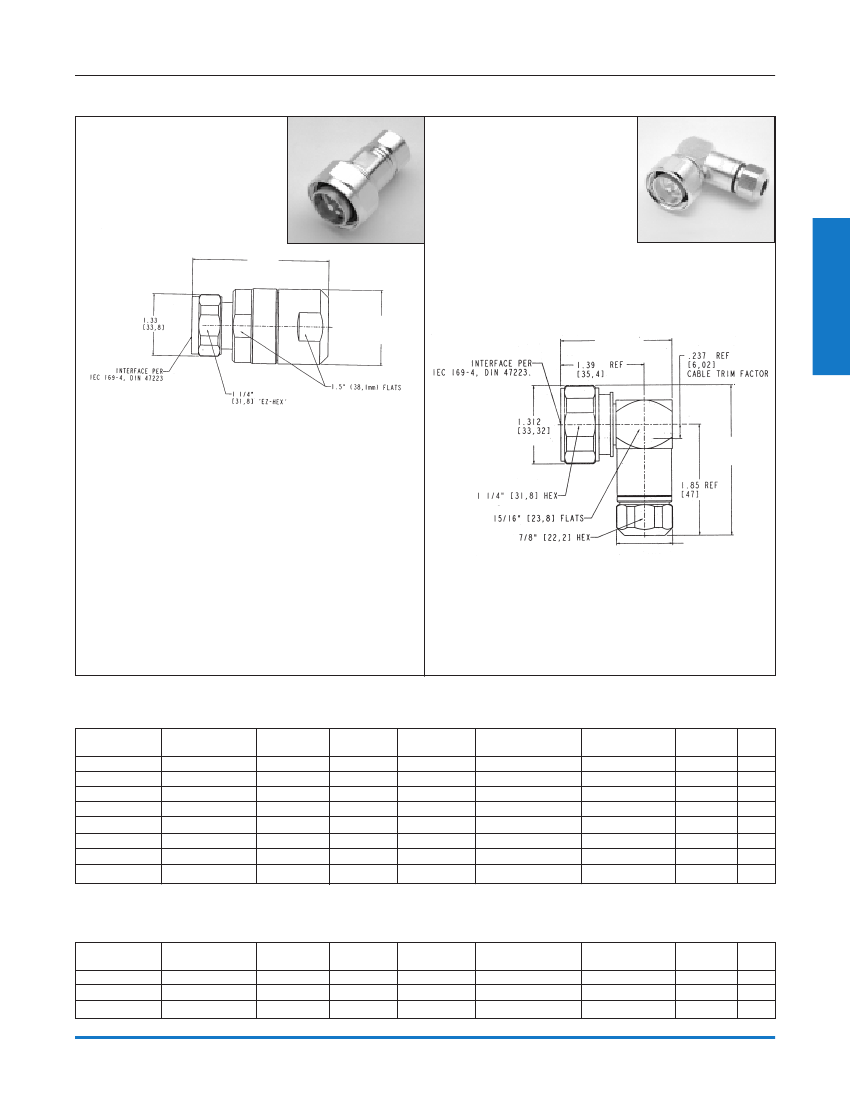

7/16

Corrugated Cable Connectors

Fig. 1

Fig. 2

Amphenol

®

7/16

a

b

a

b

7/16 Plug Interface

Straight, Silver/White Bronze Plated

S2PDM

(Superflex)

S4PDM

S4WDM-U

A4PDM

(Annular)

A4WDM

A5PDM

A7PDM

A7WDM

c

7/16 Plug Interface

Right Angle, Silver Plated

S2PDR

(Superflex)

S4PDR

A4PDR

(Annular)

7/16 PLUG INTERFACE — STRAIGHT

Inner

Cable

3/8" Helical

1/2" Helical

1/2" Annular

7/8" Annular

1 5/8" Annular

Attachment

Solderless

a

2.20

2.21

2.62

2.95

4.56

b

.875

.950

1.025

1.62

2.36

c

n/a

Body

Silver

White Bronze

Silver

White Bronze

Silver

White Bronze

Contact

Silver

Amphenol

Number

S2PDM

S4PDM

S4WDM-U

A4PDM

A4WDM

A5PDM

A7PDM

A7WDM

Fig

1

7/16 PLUG INTERFACE — RIGHT ANGLE

Inner

Cable

3/8" Helical

1/2" Helical

1/2" Annular

Attachment

Solderless

a

1.81

1.86

1.93

b

2.51

2.76

c

.875

.935

1.000

Body

Silver

Contact

Silver

Amphenol

Number

S2PDR

S4PDR

A4PDR

Fig

2

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

263

A4PDM Related Products

	A4PDM	A7WDM	A4PDR	A5PDM	S4PDR	S4WDM-U	S2PDM	S2PDR	S4PDM
Description	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug	RF Connector, Male, Cable Mount, Solderless Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow
Other features	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4	STANDARDS: DIN 47223; IEC 169-4
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Insertion loss	0.11 dB	0.11 dB	0.11 dB	0.11 dB	0.11 dB	0.11 dB	0.11 dB	0.11 dB	0.11 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	7/16	7/16	7/16	7/16	7/16	7/16	7/16	7/16	7/16
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	5.2 GHz	5.2 GHz	5.2 GHz	5.2 GHz	5.2 GHz	5.2 GHz	5.2 GHz	5.2 GHz	5.2 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDERLESS	SOLDERLESS	SOLDERLESS	SOLDERLESS	SOLDERLESS	SOLDERLESS	SOLDERLESS	SOLDERLESS	SOLDERLESS
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	-	-
