UPD16309GF-3BA datasheet, PDF - EEWORLD Datasheet

UPD16309GF-3BA: DescriptionDC Plasma Driver, 64-Segment, CMOS, PQFP100, 14 X 20 MM, PLASTIC, QFP-100; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size189KB，10 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

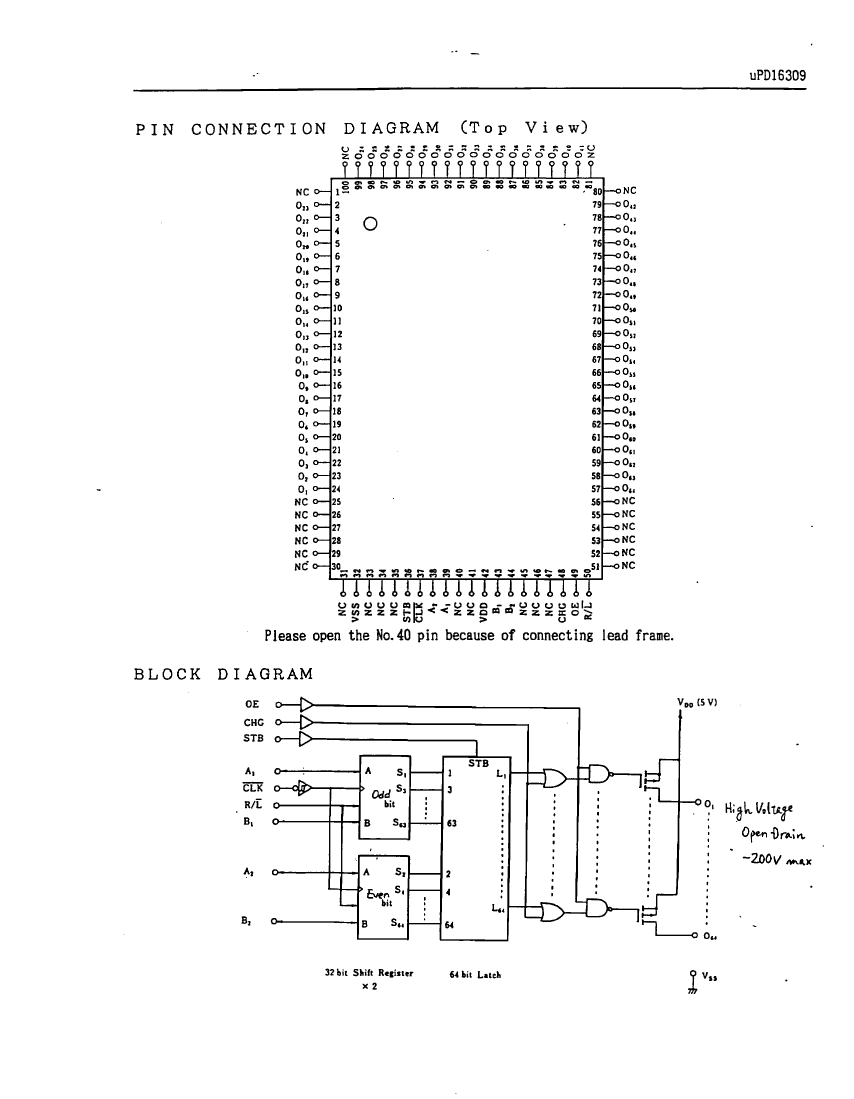

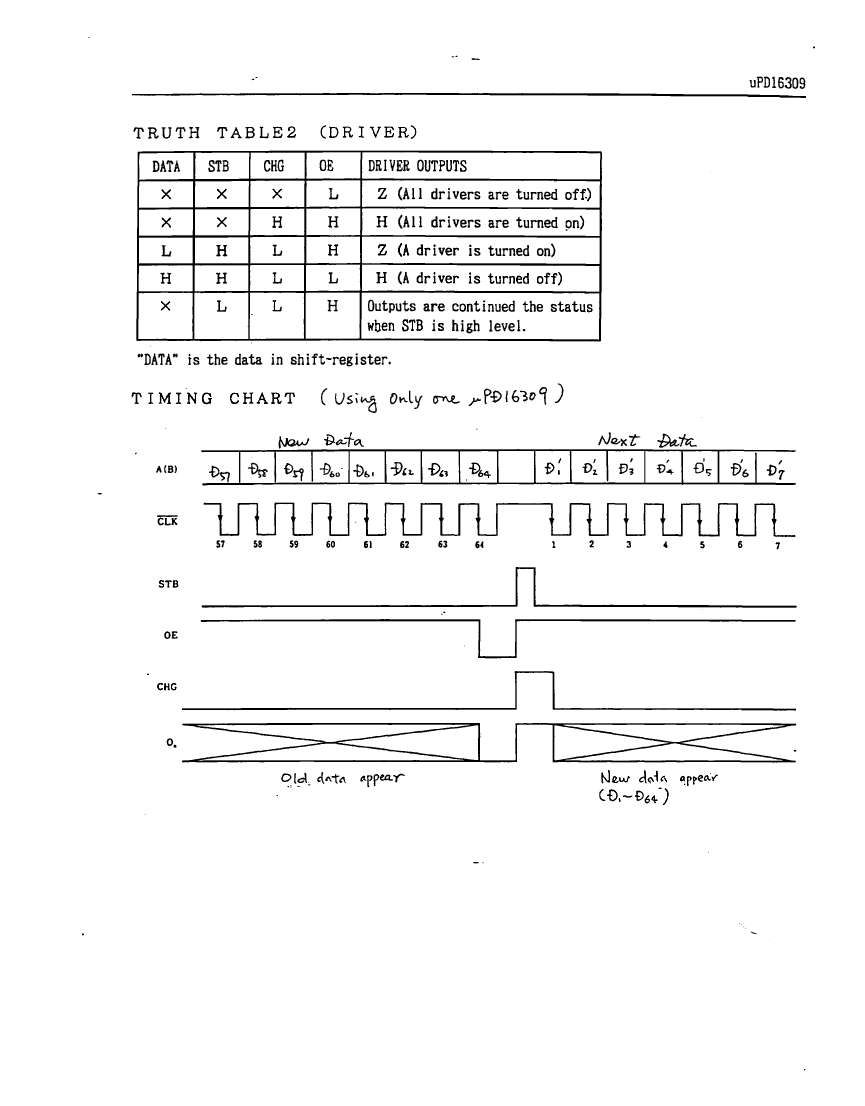

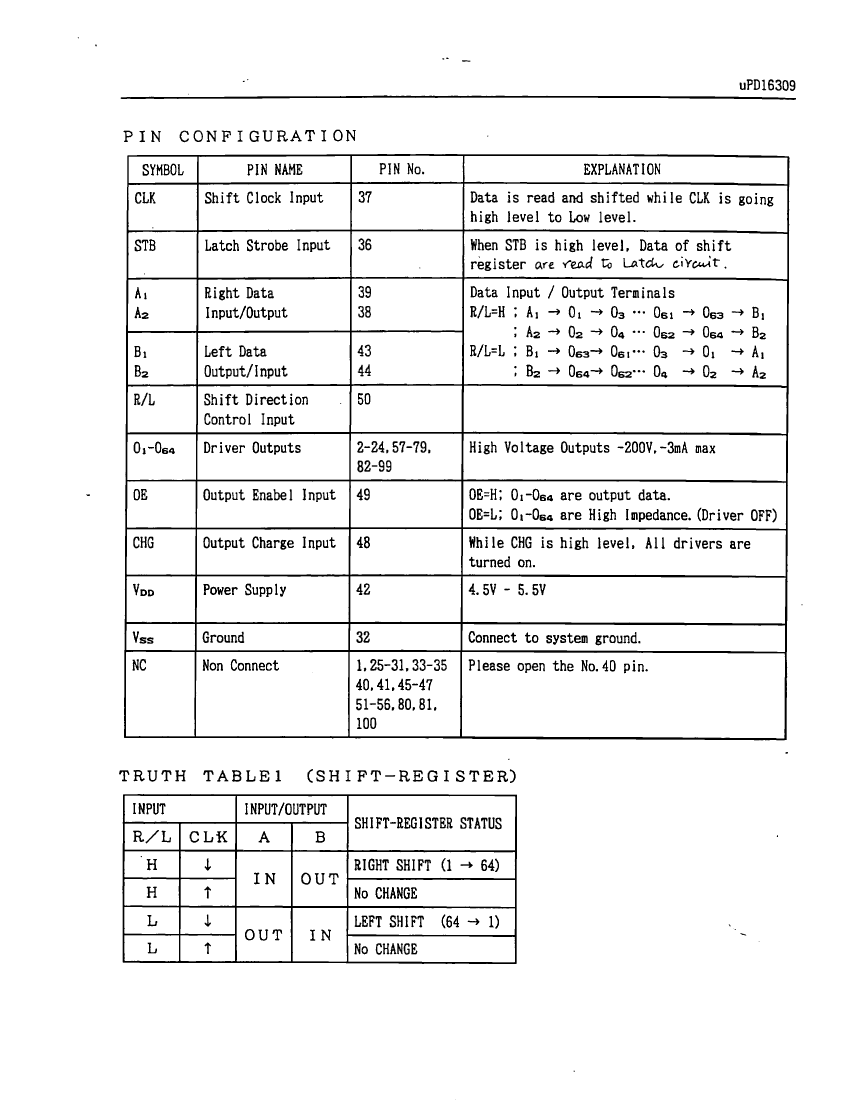

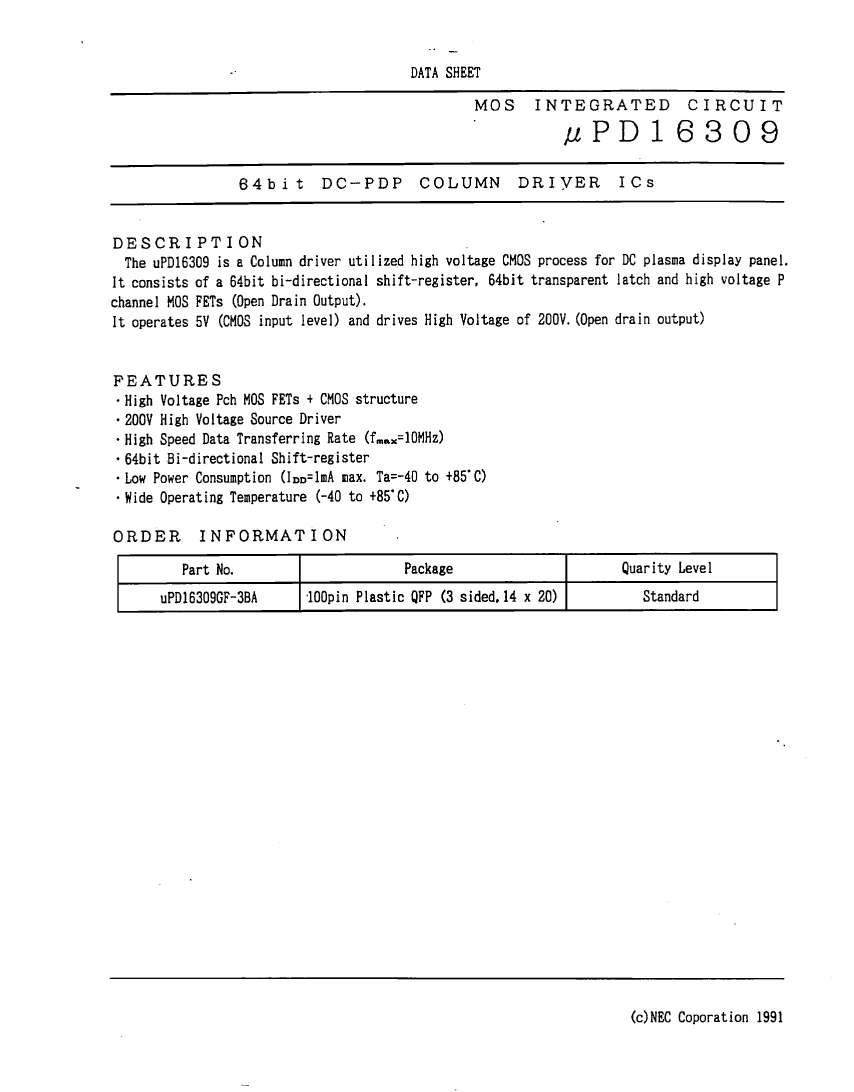

UPD16309GF-3BA Overview

DC Plasma Driver, 64-Segment, CMOS, PQFP100, 14 X 20 MM, PLASTIC, QFP-100

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	14 X 20 MM, PLASTIC, QFP-100
Reach Compliance Code	unknown
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	DC PLASMA DISPLAY DRIVER
JESD-30 code	R-PQFP-G100
length	20 mm
Multiplex display function	NO
Number of functions	1
Number of segments	64
Number of terminals	100

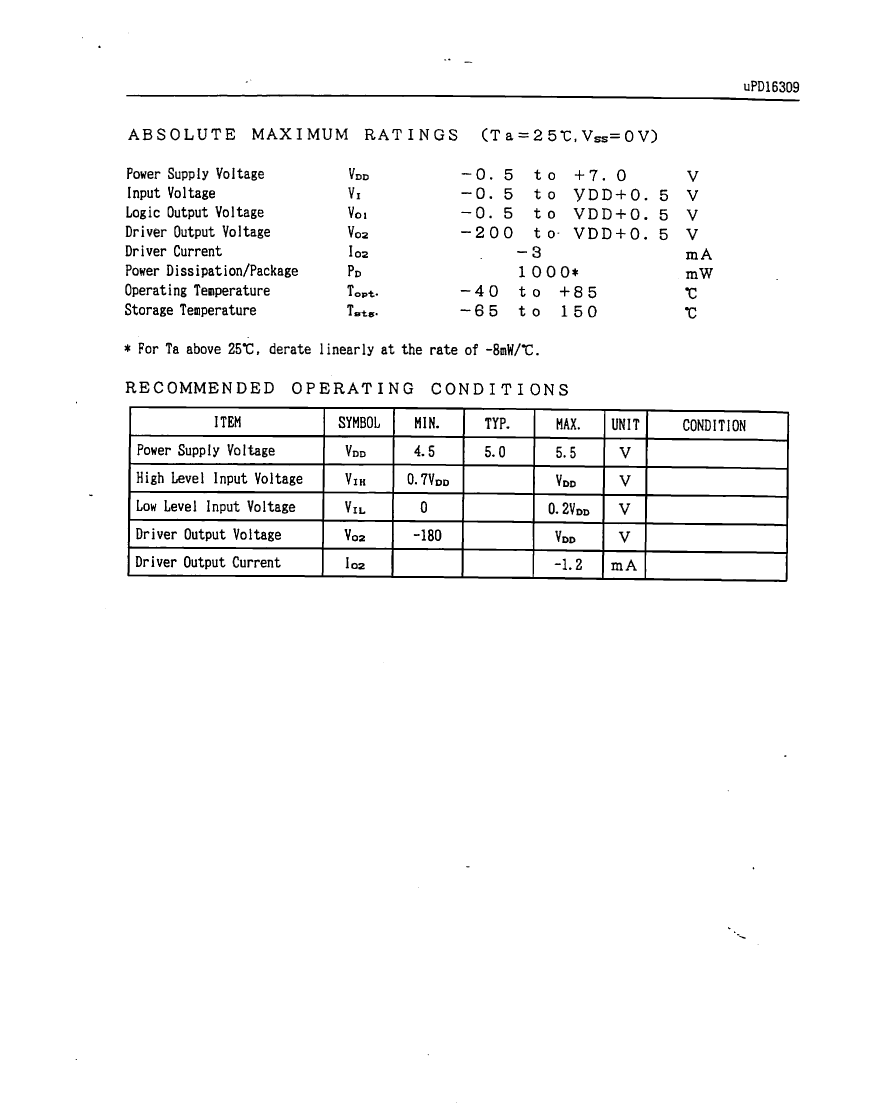

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	3 mm
Maximum slew rate	1 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
minfmax	10 MHz
Base Number Matches	1

	UPD16309GF-3BA
Description	DC Plasma Driver, 64-Segment, CMOS, PQFP100, 14 X 20 MM, PLASTIC, QFP-100
Maker	NEC Electronics
package instruction	14 X 20 MM, PLASTIC, QFP-100
Reach Compliance Code	unknown
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	DC PLASMA DISPLAY DRIVER
JESD-30 code	R-PQFP-G100
length	20 mm
Multiplex display function	NO
Number of functions	1
Number of segments	64
Number of terminals	100
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	3 mm
Maximum slew rate	1 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
minfmax	10 MHz
Base Number Matches	1
