NV13M08YJ-70M-NSA3323J datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> NV13M08YJ-70M-NSA3323J

NV13M08YJ-70M-NSA3323J: DescriptionPECL Output Clock Oscillator, 70MHz Nom, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric View All

NV13M08YJ-70M-NSA3323J Overview

PECL Output Clock Oscillator, 70MHz Nom, ROHS COMPLIANT PACKAGE-6

NV13M08YJ-70M-NSA3323J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NDK
Reach Compliance Code	unknown
Other features	COMPLEMENTARY OUTPUT
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	NV13M08Y
Installation features	SURFACE MOUNT
Nominal operating frequency	70 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	PECL
Output load	50 OHM
physical size	13.8mm x 8.65mm x 4.1mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

Crystal Oscillator

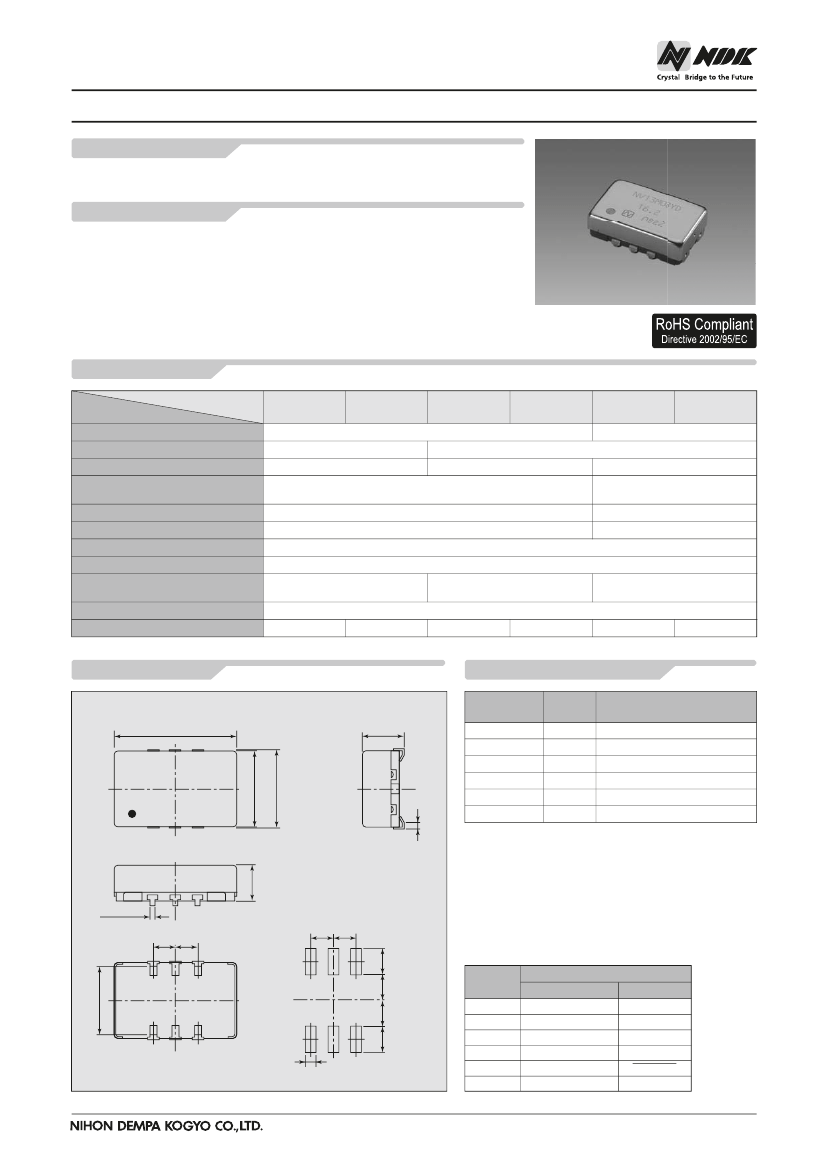

Model Name NV13M08Y

Main Application

For SONET-, SDH-, and GbEthernet-related equipment

Voltage-Controlled Crystal Oscillator (VCXO) NV13M08Y Series

Features

CMOS output: 2 to 100 MHz; PECL output: 70 to 185 MHz.

A surface-mount crystal oscillator.

Complies with the RoHS Directive.

Specifications

Model

Item

Nominal frequency range (MHz)

Power supply voltage [VCC] (V)

Current consumption (mA)

Output level

Duty cycle (%)

Load

Operating temperature range (℃)

Frequency stability

Frequency control characteristic

Control polarity

Standby function or E/D function

None

Available

None

Min. ±100 × 10

−6

/ +2.5 ± 2.0 V

+5 ± 5 %

Max. 40

C-MOS level

45 to 55 (1/2 VCC)

15 pF

−40 to +85

Max. ±50 × 10

−6

Min. ±100 × 10

−6

/ +1.65 ± 1.5 V

Positive

Available

None

Available

Min. ±100 × 10

−6

/ +1.65 ± 1.5 V

Max. 30

NV13M08YD

NV13M08YG

NV13M08YE

NV13M08YH

NV13M08YF

NV13M08YJ

2 to 100

+3.3 ± 5 %

70 to 185

Max. 100

PECL level

(Complementary)

45 to 55 (VCC − 1.3 V)

50 Ω (VCC− 2.0 V)

Dimensions

13.8

4.5 ± 0.2

List of Ordering Codes

Model Name Frequency

and Classification (MHz)

NV13M08YD

NV13M08YG

NV13M08YE

NV13M08YH

NV13M08YF

NV13M08YJ

0.6

Ordering Code

]M-NSA3323D

]M-NSA3323G

]M-NSA3323E

]M-NSA3323H

]M-NSA3323F

]M-NSA3323J

2 to 100 NV13M08YD-[

2 to 100 NV13M08YG-[

2 to 100 NV13M08YE-[

2 to 100 NV13M08YH-[

70 to 185 NV13M08YF-[

70 to 185 NV13M08YJ-[

8.65

8.9

0.51 ± 0.2

2.54 ± 0.1

7.8 ± 0.6

2.54 ± 0.1

4.1 ± 0.2

Specify a frequency in the square brackets.

Specify the frequency in up to seven digits (the decimal point is

not included) and omit zeros after the decimal point.

Reference land pattern

2.54

3.0

2.9

PAD No.

Connection

(C-MOS)

(PECL)

VCONT

NC or STAND-BY

GND

OUTPUT

VCC

VCONT

NC or E/D

GND

OUTPUT

VCC

1.27

3.0

2.9
