B59339-A1801-P20 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> B59339-A1801-P20

B59339-A1801-P20: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC, 800ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size483KB，8 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B59339-A1801-P20 Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC, 800ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

B59339-A1801-P20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MINIMUM RESISTANCE IS 480 OHMS
JESD-609 code	e4
Manufacturer's serial number	J287
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TRAY
Rated (AC) voltage (URac)	220 V
resistance	800 Ω
Resistor type	PTC THERMISTOR
surface mount	NO
Terminal surface	Silver (Ag)
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING
Tolerance	25%
Base Number Matches	1

Preview

Download Datasheet

View All

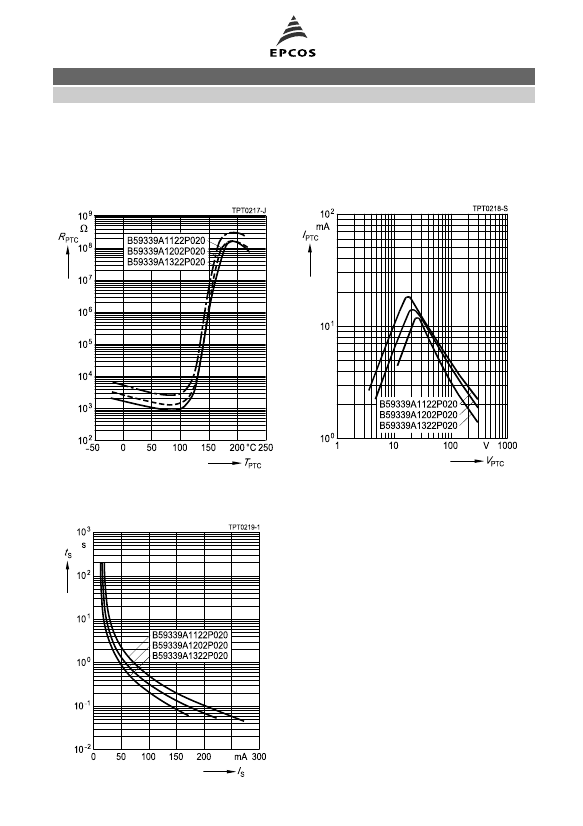

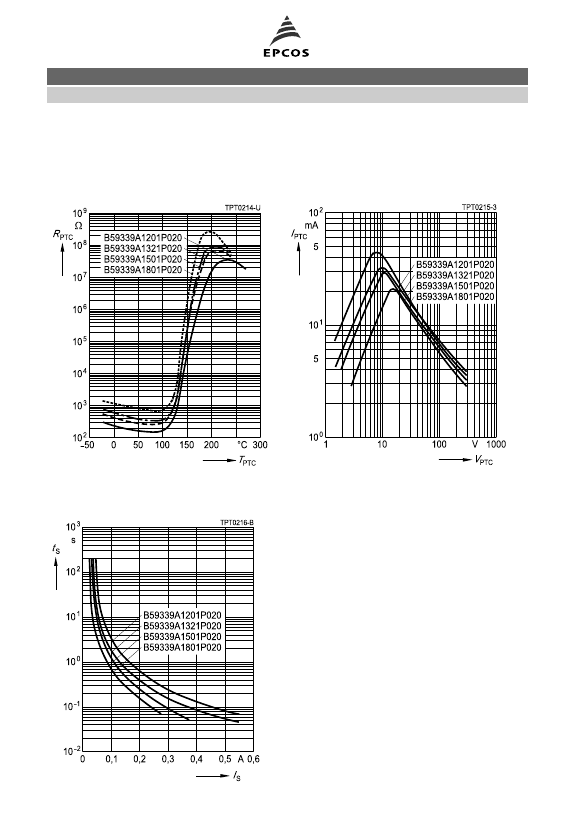

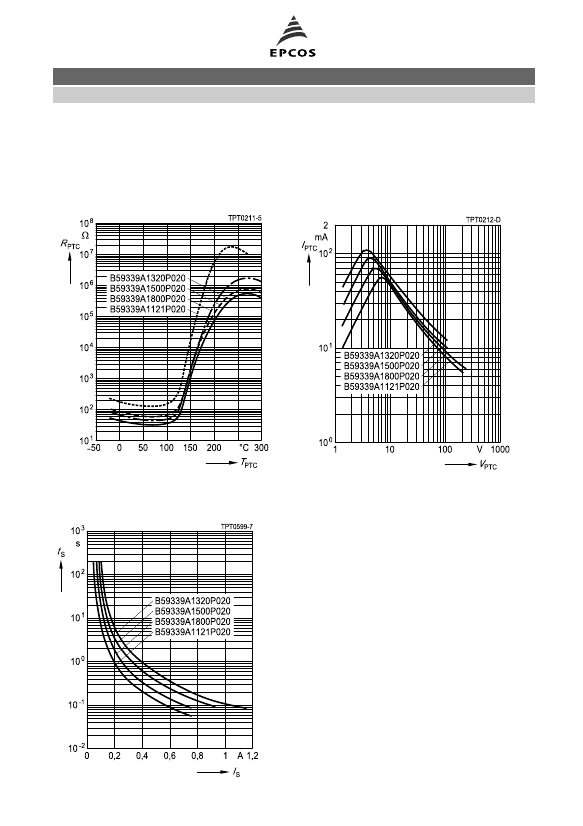

PTC thermistors for switching

applications

Plastic case, 63 V to 220 V

Series/Type:

Date:

B59339

March 2006

information contained therein without EPCOS' prior express consent is prohibited.

B59339-A1801-P20 Related Products

	B59339-A1801-P20	B59339-A1121-P20	B59339-A1320-P20	B59339-A1500-P20	B59339-A1122-P20
Description	RESISTOR, TEMPERATURE DEPENDENT, PTC, 800ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 120ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 32ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 50ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, TEMPERATURE DEPENDENT, PTC, 1200ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown
Other features	MINIMUM RESISTANCE IS 480 OHMS	MINIMUM RESISTANCE IS 75 OHMS	MINIMUM RESISTANCE IS 20 OHMS	MINIMUM RESISTANCE IS 31 OHMS	MINIMUM RESISTANCE IS 630 OHMS
JESD-609 code	e4	e4	e4	e4	e4
Manufacturer's serial number	J287	J283	J280	J281	J288
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TRAY	TRAY	TRAY	TRAY	TRAY
Rated (AC) voltage (URac)	220 V	110 V	63 V	63 V	220 V
resistance	800 Ω	120 Ω	32 Ω	50 Ω	1200 Ω
Resistor type	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR	PTC THERMISTOR
surface mount	NO	NO	NO	NO	NO
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE
Thermistor Applications	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING
Tolerance	25%	25%	25%	25%	25%
Base Number Matches	1	1	1	1	1
Maker	EPCOS (TDK)	-	-	EPCOS (TDK)	EPCOS (TDK)
ECCN code	EAR99	EAR99	-	EAR99	EAR99
