51021-0900 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 51021-0900

Preview

51021-0900: Description9 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE; CategoryThe connector; File Size45KB，1 Pages; ManufacturerETC

Download Datasheet Parametric View All

51021-0900 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51021-0900	-	-	View	Buy Now

51021-0900 Overview

9 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE

51021-0900 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Terminal spacing	1.25 mm
Total number of contacts	9
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	socket
Manufacturer Series	51021
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	Dual board connector
Connector male and female	Jack
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	straight
Installation type	BOARD
Number of load rows	1
Terminal type	riveting
UL flammability code	94V-0

Preview

Download Datasheet

View All

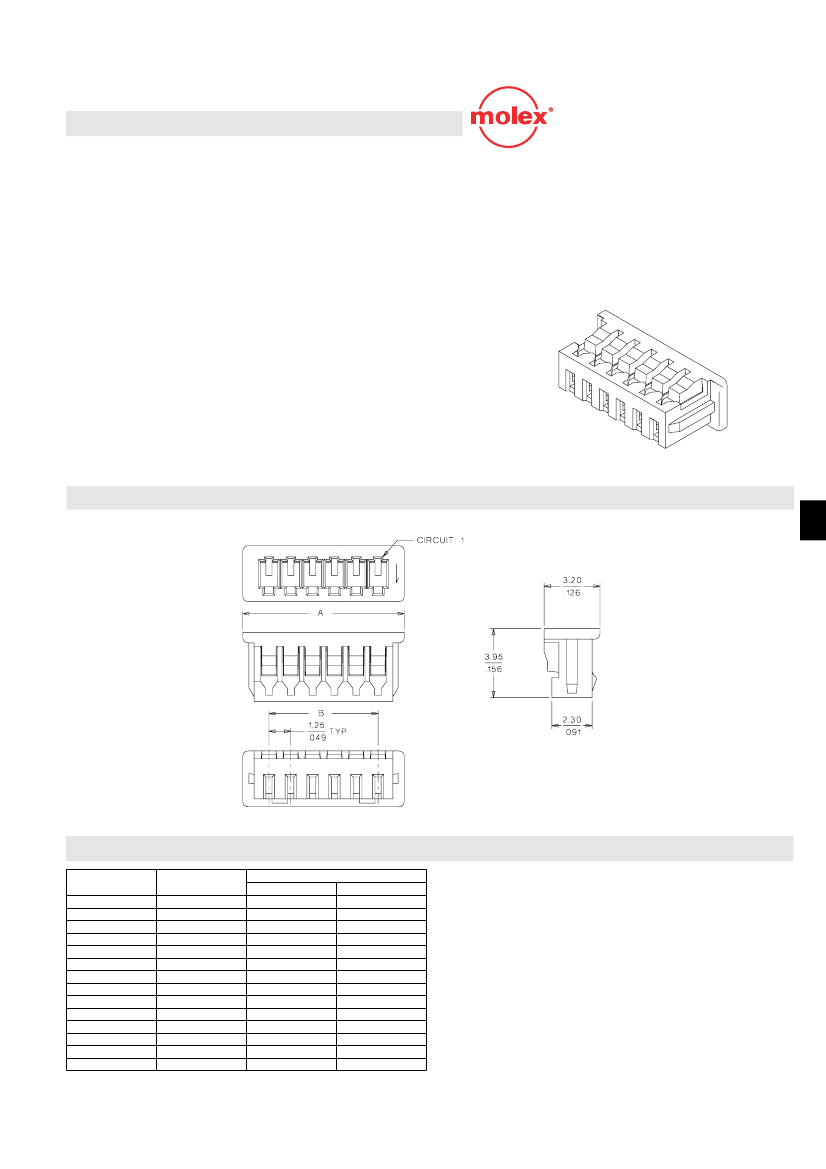

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 2 to 15 circuits

s

Housing lance provides extra terminal retention

s

Friction locks provide secure mating

Reference Information

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Use With: 50079/50058

Mates With: 53398, 53261, 53047, 53048 and 51047

Designed In: Millimeters

Electrical

Voltage: 125V

Current: 1.0A

32 AWG—0.8A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 250V AC/1 min.

Insulation Resistance: 100 M

Ω

min.

Physical

Housing: PBTP, UL 94V-0

Temperature: -40 to +85˚C

1.25mm (.049") Pitch

Wire-to-Wire and

Wire-to-Board

Receptacle

51021

ORDERING INFORMATION AND DIMENSIONS

Circuits

02

03

04

05

06

07

08

09

10

11

12

13

14

15

Order No.

51021-0200

51021-0300

51021-0400

51021-0500

51021-0600

51021-0700

51021-0800

51021-0900

51021-1000

51021-1100

51021-1200

51021-1300

51021-1400

51021-1500

4.25

5.50

6.75

8.00

9.25

10.50

11.75

13.00

14.25

15.50

16.75

18.00

19.25

20.50

Dimension

A

(.167)

(.217)

(.266)

(.315)

(.364)

(.413)

(.463)

(.512)

(.561)

(.610)

(.659)

(.709)

(.758)

(.807)

1.25

2.50

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

15.00

16.25

17.50

B

(.049)

(.098)

(.148)

(.197)

(.246)

(.295)

(.344)

(.393)

(.441)

(.492)

(.541)

(.590)

(.639)

(.688)

990

I-107

Micro Connectors

I

Recommended Resources

Inductor thickness measuring circuit

LZQ1-10-55 type auto-coupling step-down starter starting circuit

Fully automatic charger that can automatically identify polarity

Transistor DC double boost circuit

Photodiode Schmitt trigger

Asynchronous counter using reset method using 74290 asynchronous decimal counter
