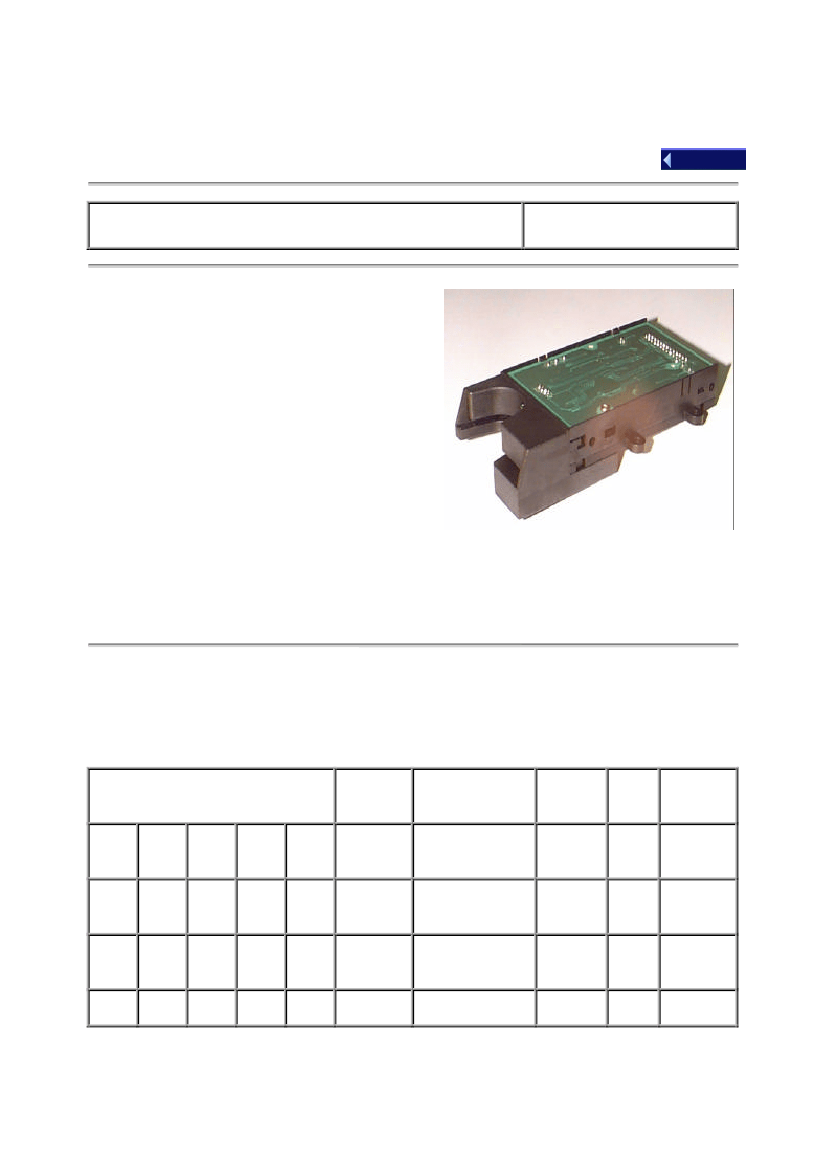

Hybrid Magnetic / IC Card Reader
Compact Insert Reader with Magnetic and IC
Card Interface
n
Ideally suited for applications using hybrid
magnetic stripe and IC cards (such as
EMV).
n
Supports both ISO and CP8 chip contact
locations.
n
Red and green LEDs for operation
indicator.
n
Solenoid-controlled IC card locking
mechanism.
n
TTL interface.
n
Also available with RS232 and housing.
3S4YR-SGR
Ordering
Information
Magnetic tracks supported
(R,RW)
1
---
R
---
---
R
R
2
---
R
---
3
Cente
JIS II
r
---
---
---
---
---
---
J-style
J-style
J-style
---
Push/pull
Push/pull
Yes
Yes
Yes
Black
Black
3S4YR-
SGR0J
3S4YR-
SGR1J
IC
Contact
Mag Read
Direction
Colou
r
Part
Number
Solenoid
Black 3S4YR-
SGR4J
R
---
R
R
---
---
R
R
---
---
R
R
---
---
---
---
R
R
R
R
R
---
---
---
R
R
---
---
R
R
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
J-style
---
J-style
---
J-style
---
J-style
---
Push/pull
Push/pull
Push/pull
Push/pull
Push/pull
Push/pull
Push/pull
Push/pull
Push/pull
Push/pull
No
No
Yes
No
Yes
No
Yes
No
Yes
No
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
3S4YR-
SGR1N
3S4YR-
SGR4N
3S4YR-
SGR3J
3S4YR-
SGR3N
3S4YR-
SGR5J
3S4YR-
SGR5N
3S4YR-
SGR6J
3S4YR-
SGR6N
3S4YR-
SGR7J
3S4YR-
SGR7N
Specifications
Part number
Service life (Mag Head)
Service life (IC contact)
Operating Power Supply
Current Consumption
3S4YR-SGR
300,000 passes (preliminary)
500,000 passes (preliminary)
+5 VDC±5%
2.5 A max.
Mounting Location
Ambient Temperature
Ambient Humidity (Operation)
Vibration
Shock
Dimensions
Weight
Indoors away from wind, rain,
sunlight, and dust
0°C to 45°C
30% to 85% RH without
condensation and frost formation
To be determined
To be determined
To be determined
To be determined
Engineering Data
n
I/O Information

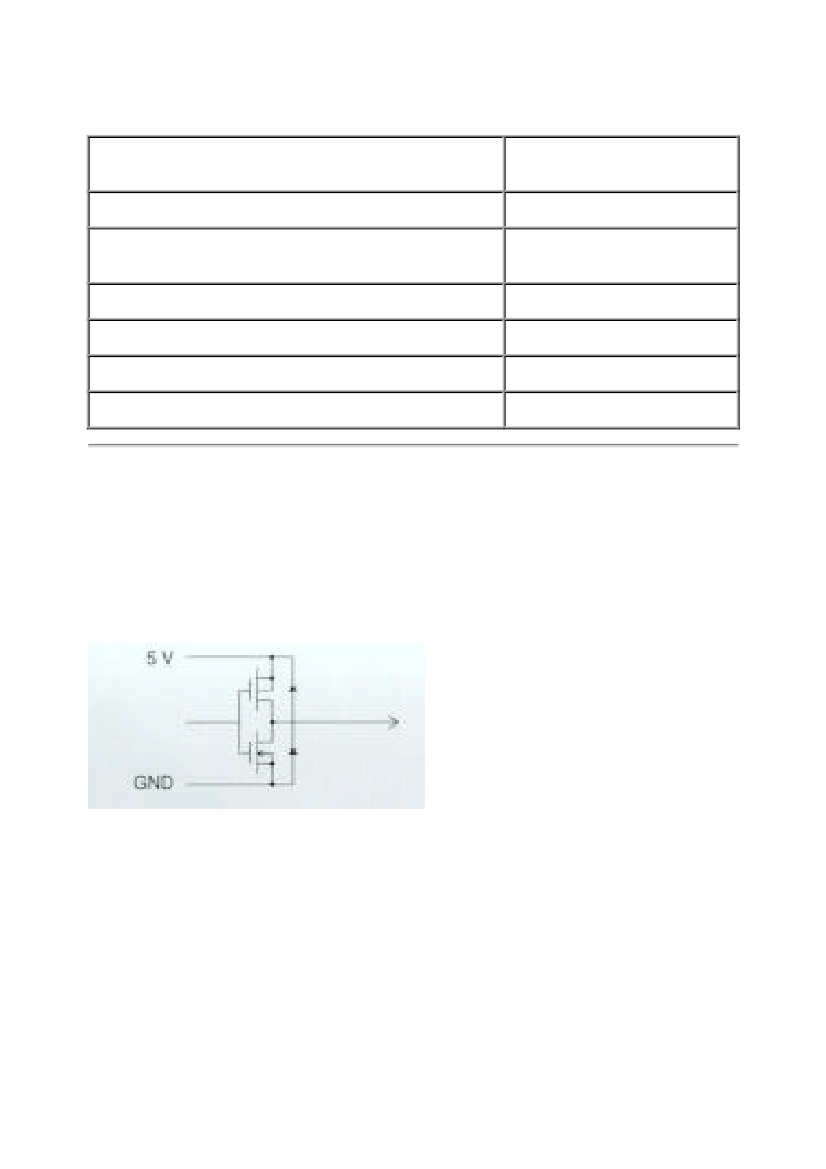

Output signal levels
VOL = 0.4 V at 5 mA
VOL = 2.8 V at 0.1 mA
3S4YR-SGR
7626-5002SC (3m:26 pin), MIL-C-83503A conformed
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
Signa Input/Outp
Description
l
ut
RDT1 Output
RCL1 Output
RDT2 Output
RCL2 Output
RDT3 Output
RCL3 Output
P1
P2
Output
Output
Read data, track 1
Read clock, track 1
Read data, track 2
Read clock, track 2
Read data, track 3
Read clock, track 3
Card Detection
Card Insertion
Completed
Solenoid ON
LED1 (Red) ON
LED2 (Green) ON
Pin # Signal Input/Output Description
14
15
16
17
18
19
20
21
22
23
24
C1
C6
C2
C7
C3
C8
C4
5VS
5VS
5V
0V
0V
0V
*
*
*
*
*
*
*
---
---
---
---
---
---
IC Contact C1
IVCC
IC Contact C6
IVPP
IC Contact C2
IRST
IC Contact C7
IDATA
IC Contact C3
ICLK
IC Contact C8
IRFV2
IC Contact C4
IRFV1
Power for Solenoid
Power for Solenoid
Power for logic
Ground
Ground
Ground
SLN Input
LED1 Input
LED2 Input
CLS Output
C5
*
Magnetic card loading 25
IC Contact C5 IGND
26
Application
Examples
n
Remote Terminals for Computers
n
Credit Card Readers
n
ID card checkers
n
Electronic locks
n
Automatic Gate Machines
n
POS Terminals
n
ATMs
n
Gas Pump Control
n
Vending Machines
n
Pre-paid systems
