FOC 16-3
Environmental Weatherproof
Optical Connectors
MAIN CHARACTERISTICS
973 Series

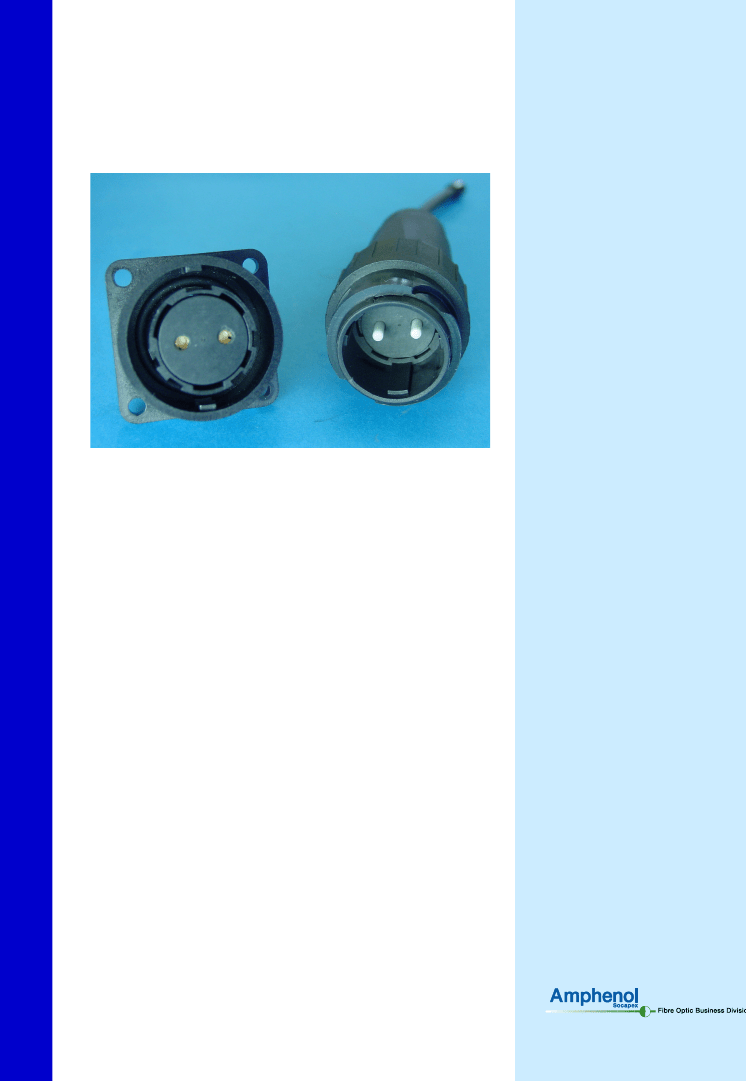

The Amphenol FOC 16-3
is a bayonet waterproof
(IP 65)
2 channels
multimode
optical
connector.
Technical description
• Fibers : 50/125; 62,5/125
• Channels 2 (other arrangements contact us)
• Plug adapted to tight jacketed multiway cables
• Typical insertion loss :
- Multimode fiber : 0,5 dB
• Cable retention by crimping > 100 daN
• Durability : 200 mating/unmating cycles (change for <0.2dB)
• Operating temperature : -40°C, +70°C
• Termini : zirconium PC ferrule (Ø 2.5 mm)
• Waterproof IP 65 when mated connectors
• Materials : polyamid 6.6
• Batonet locking mechanism
• Return springs assuring the physical contact of the optical
faces
This product uses the
proven C16-3 shell, and
the standard termini (Ø
2.5
mm)
which
is
designed to provide a
high
reliability
performance
and
economical
cost
for
outside
telecom
applications.
Applications
• Outside telecom network,
Links Base Station
• UMTS, LMDS, FTTH
• Video
• CATV
• Railway
• Industrial
• Military
• Navy
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 00 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. FOC16-3. February 2002. Printed in France by Amphenol Socapex.
FOC16-3
How to order :

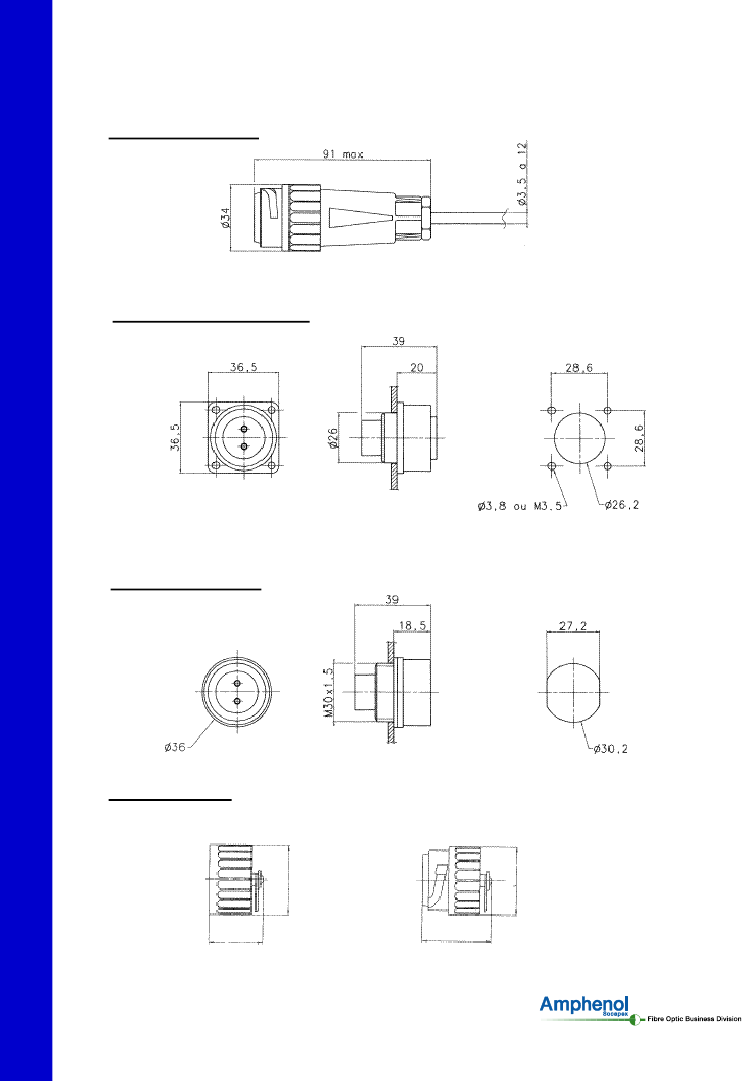

Optical connectors
Series :
Shell Type
06 :
Straight plug
00 :
Square flange receptacle
07 :
Jam nut receptacle
Backshell
PG clam p
973 Series
FOC16
P :
Pin
S :
Socket
06P
Contact type
S2
01
2
P7
X058
H0 :
Heat-shrink right angle backshell w ithout PG clamp
N0 :
Without backshell (only for receptacle)
S :
Straight backshell for
multi-fiber cable
Shell size
Num ber of channels
Type of ceram ic ferrule
P :
PC ferrule
Cable diam etre
X016 :
1,6mm (only for receptacle)
X020 :
2,0mm (only for receptacle)
X058 :
5,8mm (only for plug)
XXXX :
cable defined by the customer
Ceram ic ferrule inner diam etre
7 :
φ
127
µ
m (only for multimode fiber)
2 :
Standard plastic PG clamp
4 :
Integrated plastic PG clamp
Plug protective caps
Series :
Protective cap type
BM : For plug
BE : For square flange and jam nut receptacles
Shell size
FOC16
BM
01
Requested information to order a FOC 16-3 patchcord :
Plug or receptacle
Type of fiber
Patchcord length
Patchcord configuration
Drawing
: define the P/N
: 50/125, 62,5/125 or 9/125
: ex : 10,5m
: plug/plug, plug/pigtail, plug/receptacle,
receptacle/pigtail, receptacle/receptacle
: description of the product
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 00 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. FOC 16-3. February 2002. Printed in France by Amphenol Socapex.
