KV7050B30.0000C30D00: DescriptionVCXO, Clock, VCXO, CLOCK, 30 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size125KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

KV7050B30.0000C30D00 Overview

VCXO, Clock, VCXO, CLOCK, 30 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN

KV7050B30.0000C30D00 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	KV7050B-C3
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	8 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

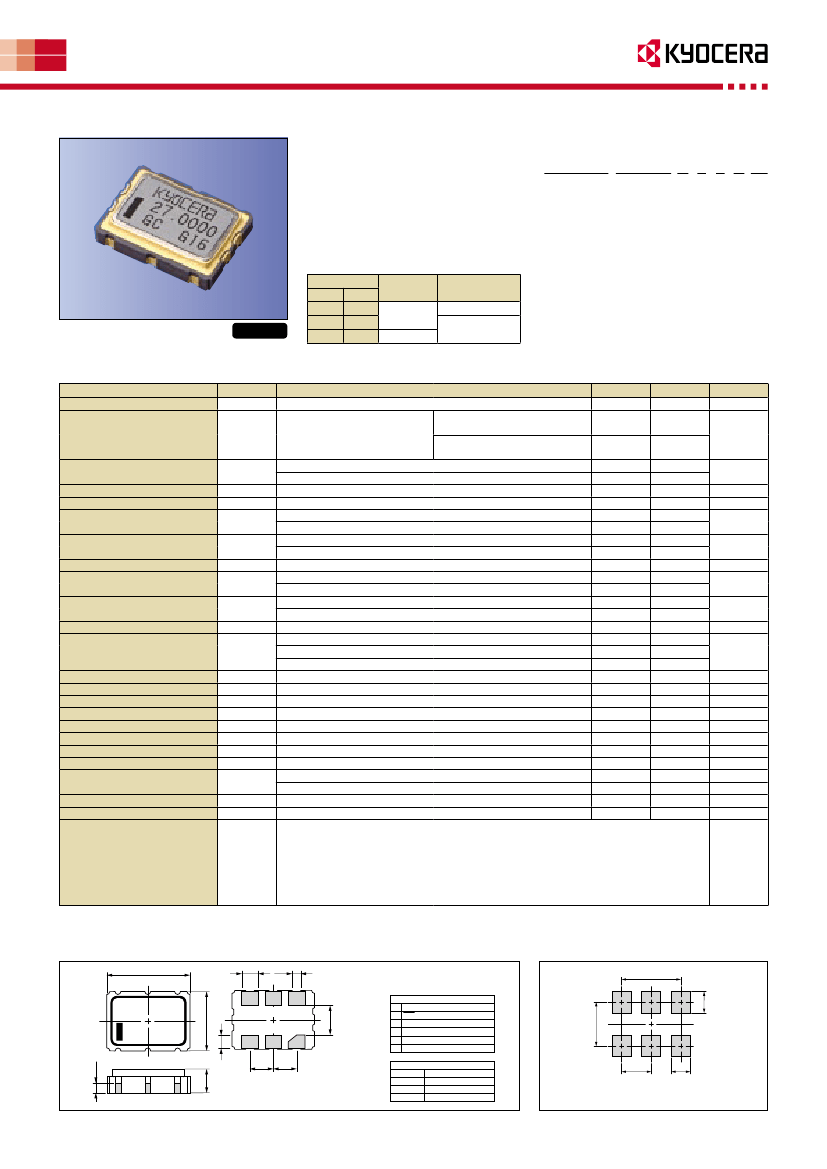

Voltage Controlled Crystal Oscillators (VCXO)

Surface Mount Type KV7050B-C3 Series

CMOS/ 3.3V/ 7.0×5.0mm

Features

• High frequency to 170MHz

• Miniature ceramic package

• Highly reliable with seam welding

• CMOS output

• Supply voltage V

CC

=3.3V

• Excellent Jitter performance

How to Order

KV7050B 74.1758 C 3 0 D 00

①

②

③④⑤⑥ ⑦

①

Type (7.0×5.0mm SMD VCXO)

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage (3.3V)

⑤

Frequency Tolerance (See Table 1)

S

⑥

ymmetry/ INH Function

(45/ 55%, Disable)

C

⑦

ustomer Special Model Suffix

(STD Specification is “00”)

Packaging (Tape & Reel 1000 pcs./ reel)

Table 1

Operating

Freq. Tol.

Note

-

6

Temperature

Code

×

10

Range (

°

C)

±50

0

Standard specifications

-10

to

+70

±30

S

With only certain

±50 -40

to

+85

frequencies

G

RoHS Compliant

Specifications

Item

Output Frequency Range

Note1

Frequency Tolerance

Note2

Absolute Pull Range

Control Voltage

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Disable Current

Symmetry

Rise/ Fall Time

(10% V

CC

to 90% V

CC

)

Low Level Output Voltage

High Level Output Voltage

Output Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Input Resistance

Disable Time

Enable Time

Start-up Time

Phase Jitter

Symbol

fo

f

_tol

APR

V

C

T

_stg

T

_use

—

V

CC

I

CC

I

_dis

SYM

tr/ tf

V

OL

V

OH

L_CMOS

V

IN

V

IL

V

IH

—

t

_dis

t

_ena

t

_str

J

Phase

Conditions

Initial tolerance, Operating tem-

Op. Temp.:

-10

to

+70°C/ -40

to

+85°C

perature range, Rated power

supply voltage change, Aging (1

Op. Temp.:

-10

to

+70°C

year @25°C), Shock and vibration

1.5≤fo≤30MHz

30<fo≤170MHz

Standard Specifications

Extend (Option)

1.5≤fo≤80MHz

80<fo≤170MHz

1.5≤fo≤80MHz

80<fo≤170MHz

1.5≤fo≤80MHz

80<fo≤170MHz

@50% V

CC

1.5≤fo≤30MHz

30<fo≤80MHz

80<fo≤170MHz

Min.

1.5

-50

-30

±100

±50

0

-55

-10

-40

-0.5

+2.97

—

45

—

90% V

CC

—

0

—

70% V

CC

5

—

Max.

170

+50

+30

—

+3.3

+125

+70

+85

+7

+5

+3.63

15

35

10

50

55

8

5

4

10% V

CC

—

15

+3.3

30% V

CC

—

100

2

10

1

Units

MHz

×10

-

6

×10

-

6

V

°C

V

mA

%

ns

V

pF

V

Mohm

ns

ms

ps

Phase Noise

@155.52MHz

—

1.5≤fo≤80MHz

80<fo≤170MHz

@Minimum operating voltage to be 0 sec.

12kHz to 20MHz @155.52MHz

-

55 (@10Hz offset)

-

85 (@100Hz offset)

-115

(@1kHz offset)

-130

(@10kHz offset)

-145

(@100kHz offset)

-150

(@1MHz offset)

-155

(@10MHz offset)

dBc/ Hz

Note : All electrical characteristics are defined at the maximum load and operating temperature range.

Note1: Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Dimensions

7.0

1.4

0.6

Pad Connections

V

C

INH

Case GND

Output

NC

V

CC

(Unit: mm)

Recommended Land Pattern

5.08

(Unit: mm)

2.46

5.0

#4

#3

1.17

#5

#2

#6

#1

#2

#3

#4

#5

#6

0.85

2.54

1.6

2.54

Plating: Ni+Au

Tolerance:

±0.2

Pad2

Open

"H" Level

"L" Level

INH Function

Pad4 (Output)

Active

High Z

3.6

2.54

1.6

Note: A capacitor of value 0.01µF between V

CC

and GND is recommended.

1.6

KV7050B30.0000C30D00 Related Products

	KV7050B30.0000C30D00	KV7050B30.0000C3GD00	KV7050B74.1758C30D00	KV7050BFREQ2C30D00	KV7050BFREQ1C3GD00	KV7050BFREQ1C3SD00	KV7050BFREQ2C3GD00	KV7050BFREQ2C3SD00	KV7050B74.1758C3GD00
Description	VCXO, Clock, VCXO, CLOCK, 30 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 30 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 74.1758 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 30 MHz - 170 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 1.5 MHz - 30 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 1.5 MHz - 30 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 30 MHz - 170 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	CMOS Output Clock Oscillator, 30MHz Min, 170MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 74.1758 MHz, CMOS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN
Maker	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant	unknown
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Maximum control voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
maximum descent time	8 ns	8 ns	5 ns	5 ns	8 ns	8 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	100 ppm	100 ppm	50 ppm	50 ppm	100 ppm	100 ppm	50 ppm	50 ppm	50 ppm
frequency stability	50%	50%	50%	50%	50%	30%	50%	30%	50%
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-10 °C	-40 °C	-10 °C	-10 °C	-40 °C	-10 °C	-40 °C	-10 °C	-40 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm
longest rise time	8 ns	8 ns	5 ns	5 ns	8 ns	8 ns	5 ns	5 ns	5 ns
Maximum supply voltage	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)
Manufacturer's serial number	KV7050B-C3	KV7050B-C3	-	KV7050B-C3	KV7050B-C3	KV7050B-C3	KV7050B-C3	KV7050B-C3	-
Is it Rohs certified?	-	-	-	conform to	conform to	conform to	conform to	conform to	-
Maximum operating frequency	-	-	-	170 MHz	30 MHz	30 MHz	170 MHz	170 MHz	-
Minimum operating frequency	-	-	-	30 MHz	1.5 MHz	1.5 MHz	30 MHz	30 MHz	-
