BDS19SM datasheet, PDF - EEWORLD Datasheet

BDS19SM: Description8A, 150V, PNP, Si, POWER TRANSISTOR, HERMETIC SEALED, CERAMIC, TO-220SM, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size58KB，2 Pages; ManufacturerSEMELAB; Environmental Compliance

Download Datasheet Parametric Compare View All

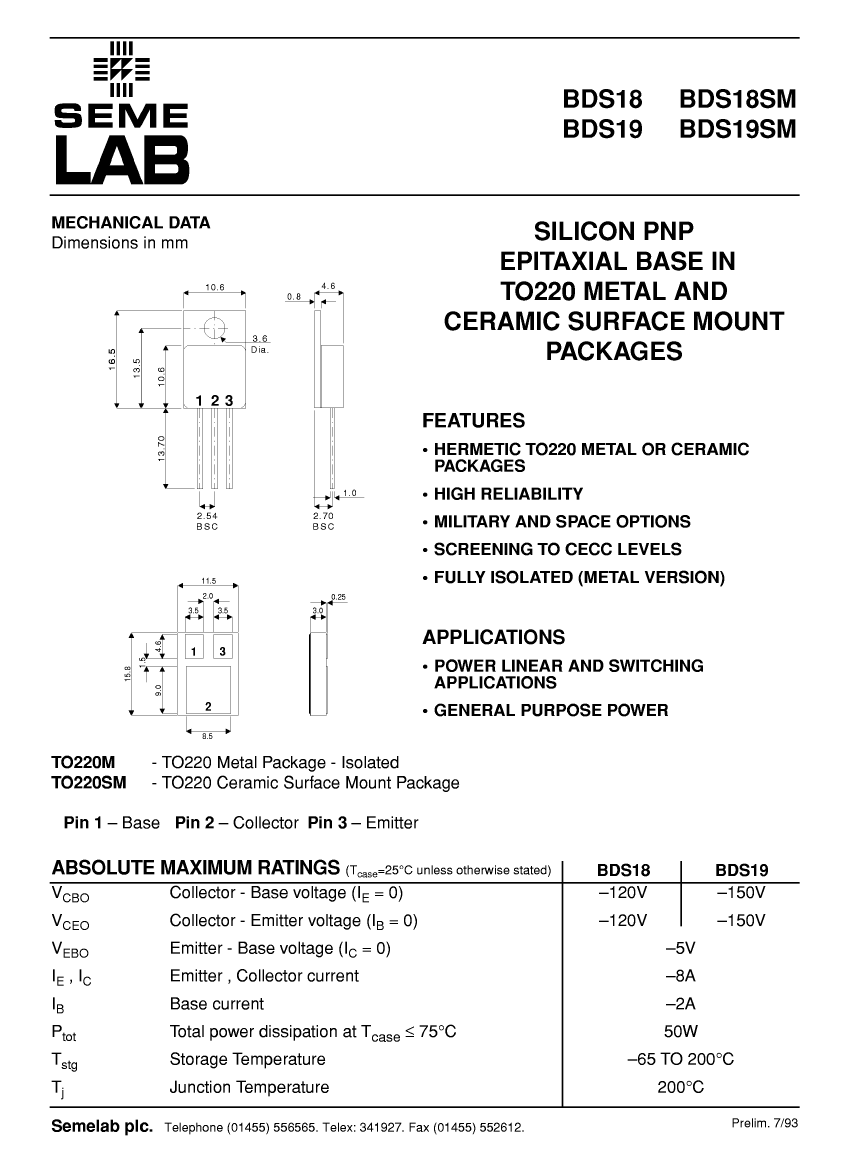

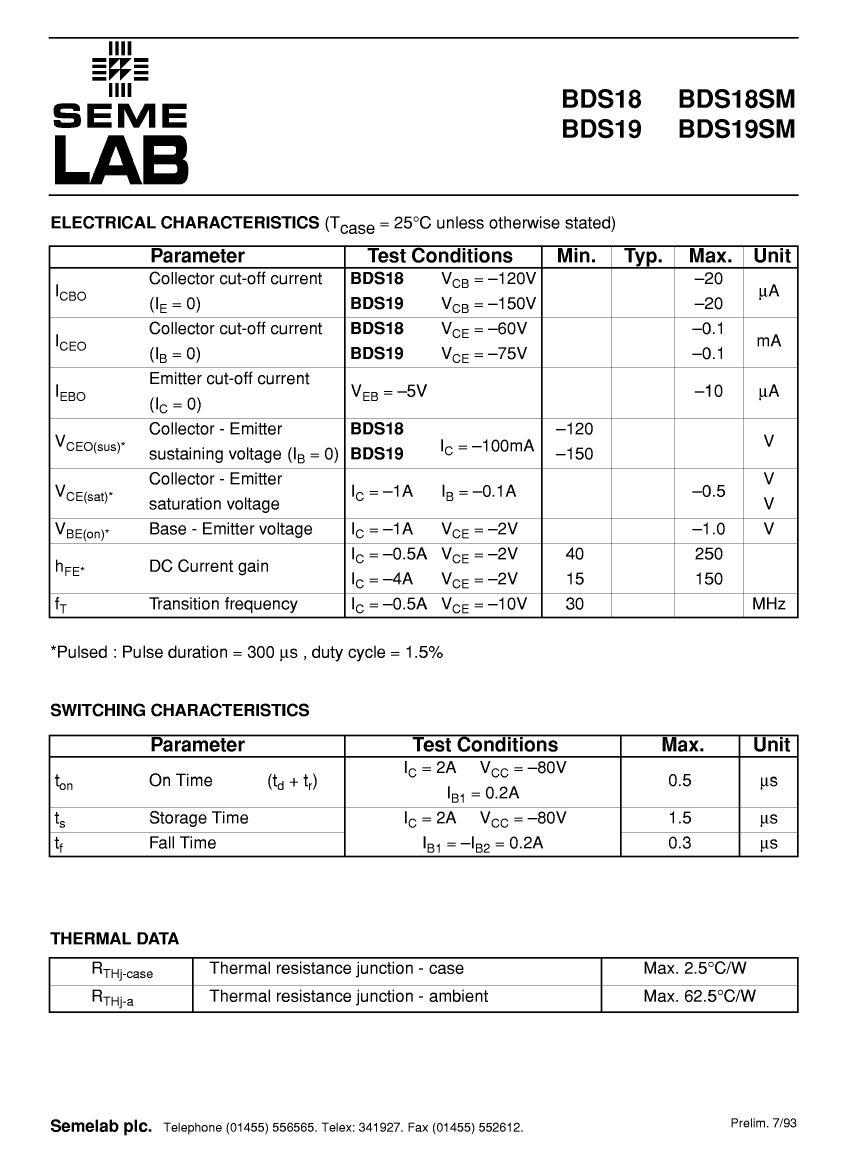

BDS19SM Overview

8A, 150V, PNP, Si, POWER TRANSISTOR, HERMETIC SEALED, CERAMIC, TO-220SM, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMELAB
Parts packaging code	TO-220SM
package instruction	CHIP CARRIER, R-CBCC-N3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	COLLECTOR
Maximum collector current (IC)	8 A
Collector-emitter maximum voltage	150 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JESD-30 code	R-CBCC-N3
Number of components	1
Number of terminals	3
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	NO LEAD
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz
Base Number Matches	1

	BDS19SM	BDS18-SM	BDS19-SM	BDS18SM
Description	8A, 150V, PNP, Si, POWER TRANSISTOR, HERMETIC SEALED, CERAMIC, TO-220SM, 3 PIN	15A, 120V, PNP, Si, POWER TRANSISTOR, TO-220SM, 3 PIN	15A, 150V, PNP, Si, POWER TRANSISTOR, TO-220SM, 3 PIN	8A, 120V, PNP, Si, POWER TRANSISTOR, HERMETIC SEALED, CERAMIC, TO-220SM, 3 PIN
Parts packaging code	TO-220SM	TO-220SM	TO-220SM	TO-220SM
package instruction	CHIP CARRIER, R-CBCC-N3	CHIP CARRIER, R-CBCC-N3	CHIP CARRIER, R-CBCC-N3	CHIP CARRIER, R-CBCC-N3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum collector current (IC)	8 A	15 A	15 A	8 A
Collector-emitter maximum voltage	150 V	120 V	150 V	120 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	15	40	40	15
JESD-30 code	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	30 MHz	30 MHz	30 MHz	30 MHz
Maker	SEMELAB	-	SEMELAB	SEMELAB
Base Number Matches	1	1	1	-
