General-purpose Relay
G2R-@-S
CSM_G2R-_-S_DS_E_2_1

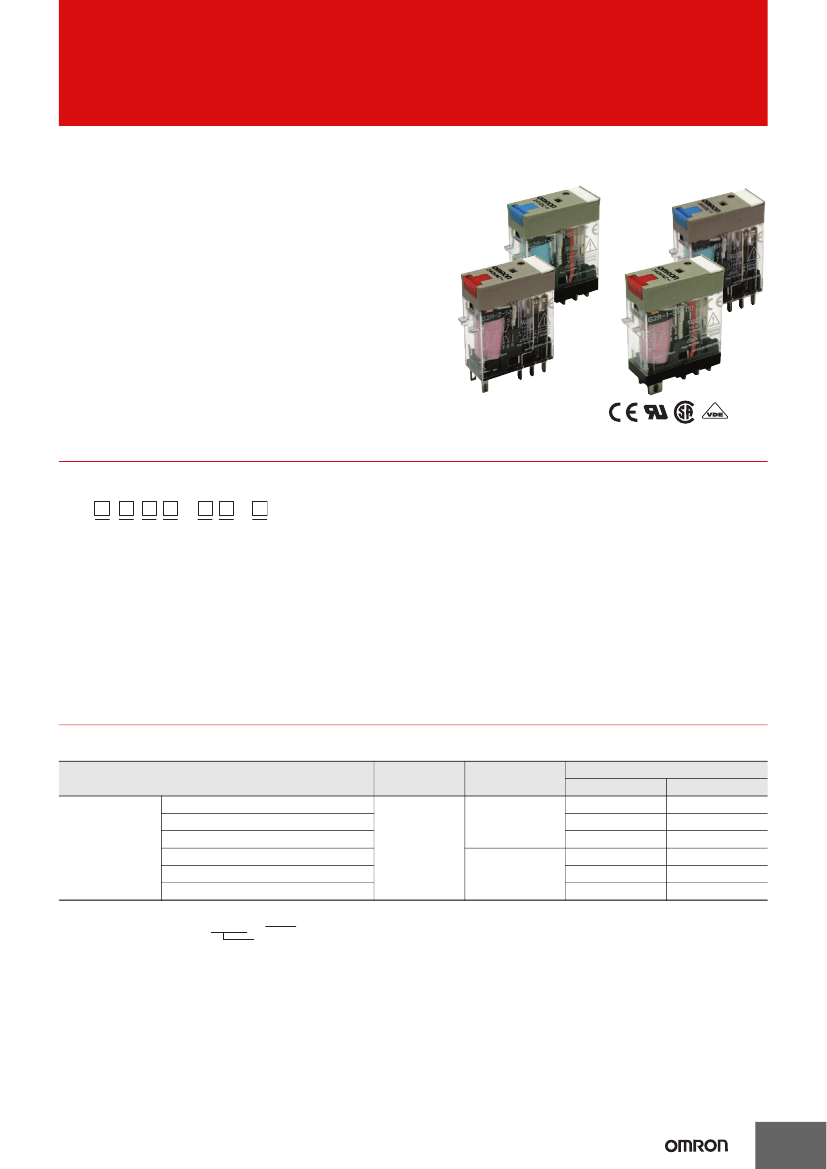

Slim and Space-saving Power Plug-in Relay
■
Lockable test button models now available.
■
Built-in mechanical operation indicator.
■
Provided with nameplate.
■
AC type is equipped with a coil-disconnection self-diagnostic
function (LED type).
■
High switching power (1-pole: 10 A).
■
Environment-friendly (Cd, Pb free).
■
Wide range of Sockets also available.
LR
Model Number Structure
Model Number Legend
G2R
1.
2.
-
-
6
-
7
5. Terminals
S:
Plug-in
6. Classification
Blank: General-purpose
N:
LED indicator
D:
Diode
ND:
LED indicator and diode
NI:
LED indicator with test button
NDI:
LED indicator and diode with test button
7. Rated Coil Voltage
3.
4.
1
2
3 4
5
Relay Function
Blank: General-purpose
Number of Poles
1:
1 pole
2:
2 poles
Contact Form
Blank: SPDT
Contact Type
Blank: Single
Ordering Information
List of Models
Classification
General-purpose
LED indicator
Plug-in terminal
LED indicator with test button
Diode
LED indicator and diode
LED indicator and diode with test button
Unsealed
DC
AC/DC
Enclosure
rating
Coil ratings
Contact form
SPDT
G2R-1-S
G2R-1-SN
G2R-1-SNI
G2R-1-SD
G2R-1-SND
G2R-1-SNDI
DPDT
G2R-2-S
G2R-2-SN
G2R-2-SNI
G2R-2-SD
G2R-2-SND
G2R-2-SNDI
Note:
When ordering, add the rated coil voltage and "(S)" to the model number. Rated coil voltages are given in the coil ratings table.
New model
Example: G2R-1-S 12 VDC (S)
Rated coil voltage
1
G2R-@-S
Accessories (Order Separately)
Connecting Sockets
Applicable Relay model
1 pole
G2R-1-S(N)(D)(ND)(NI)(NDI)
2 poles
G2R-2-S(N)(D)(ND)(NI)(NDI)
Track/surface-mounting Socket
Screwless clamp terminal
•
P2RF-05S (See note.)
+
(P2CM-S (option))
•
P2RF-08S (See note.)
+
(P2CM-S (option))
Screw terminal
•
P2RF-05-E
•
P2RF-05
•
P2RF-08-E
•
P2RF-08
Back-mounting Socket
Terminals
PCB terminals
Solder terminals
PCB terminals
Solder terminals
Model
P2R-05P, P2R-057P
P2R-05A
P2R-08P, P2R-087P
P2R-08A
Note:
Use of the P2CM Clip & Release Lever is recommended to ensure stable mounting.
Accessories for Screwless Clamp Terminal Socket (Option)
Name
Clip & Release Lever
Nameplate
Socket Bridge
P2CM-S
R99-11 Nameplate for MY
P2RM-SR (for AC), P2RM-SB (for DC)
Model
Mounting Tracks
Applicable Socket
Description
Mounting track
Track-connecting Socket
End plate
Spacer
Back-connecting Socket
Mounting plate
* Used to mount several P2R-05A and P2R-08A Connecting Sockets side by side.
Model
50 cm (l) x 7.3 mm (t): PFP-50N
1 m (l) x 7.3 mm (t): PFP-100N
1 m (l) x 16 mm (t): PFP-100N2
PFP-M
PFP-S
P2R-P*
Specifications
Coil Ratings
Rated current*
Rated voltage
50 Hz
24 V
110 V
AC
120 V
230 V
240 V
43.5 mA
9.5 mA
8.6 mA
4.4 mA
3.7 mA
60 Hz
37.4 mA
8.2 mA
7.5 mA
3.8 mA
3.2 mA
253
Ω
5,566
Ω
7,286
Ω
27,172
Ω
30,360
Ω
Coil
resistance*
Coil inductance (H)
(ref. value)
Armature
OFF
0.81
13.33
16.13
72.68
90.58
Armature
ON
1.55
26.83
32.46
143.90
182.34
Must
operate
voltage
Must
release
voltage
Max.
voltage
80% max.
30% max.
110%
0.9 VA at 60 Hz
Must
operate
voltage
Must
release
voltage
Max.
voltage
Power
consumption
(approx.)
% of rated voltage
Rated voltage
Rated current*
Coil
resistance*
69
Ω
278
Ω
1,113
Ω
4,220
Ω
Coil inductance (H)
(ref. value)
Armature
OFF
0.25
0.98
3.60
15.2
Armature
ON
0.48
2.35
8.25
29.82
% of rated voltage
Power
consumption
(approx.)
6V
DC
12 V
24 V
48 V
87.0 mA
43.2 mA
21.6 mA
11.4 mA
70% max.
15% min.
110%
0.53 W
* The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of
±10%.
2
G2R-@-S
Contact Ratings
Number of poles
Load
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Failure rate (reference value)
1 pole
Resistive load
(cosφ = 1)
10 A at 250 VAC;
10 A at 30 VDC
10 A
440 VAC, 125 VDC
10 A
2,500 VA,
300 W
100 mA at 5 VDC
1,875 VA,
150 W
Inductive load
(cosφ = 0.4; L/R = 7 ms)
7.5 A at 250 VAC;
5 A at 30 VDC
2 poles
Resistive load
(cosφ = 1)
5 A at 250 VAC;
5 A at 30 VDC
5A
380 VAC, 125 VDC
5A
1,250 VA,
150 W
10 mA at 5 VDC
500 VA,
90 W
Inductive load
(cosφ = 0.4; L/R = 7 ms)
2 A at 250 VAC; 3 A at
30 VDC
Note:
P level:
λ
60
= 0.1 x 10
-6
/operation
Characteristics
Item
Contact resistance
Operate (set) time
Release (reset) time
Max. operating
frequency
Insulation resistance
Dielectric strength
100 mΩ max.
15 ms max.
AC: 10 ms max.; DC: 5 ms max.
(w/built-in diode: 20 ms max.)
Mechanical:
Electrical:
AC: 15 ms max.; DC: 10 ms max.
(w/built-in diode: 20 ms max.)
1 pole
2 poles
18,000 operations/hr
1,800 operations/hr (under rated load)
1,000 MΩ min. (at 500 VDC)
5,000 VAC, 50/60 Hz for 1 min between coil and
5,000 VAC, 50/60 Hz for 1 min between coil and contacts*;
contacts*;
3,000 VAC, 50/60 Hz for 1 min between contacts of different polarity
1,000 VAC, 50/60 Hz for 1 min between contacts of
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
same polarity
Destruction:
Malfunction:
Destruction:
Malfunction:
Mechanical:
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
1,000 m/s
2
200 m/s
2
when energized; 100 m/s
2
when not energized
AC coil: 10,000,000 operations min.;
DC coil: 20,000,000 operations min. (at 18,000 operations/hr)
100,000 operations min. (at 1,800 operations/hr under rated load) (DC coil type)
–40°C to 70°C (with no icing or condensation)
5% to 85%
Vibration resistance
Shock resistance
Endurance
Electrical:
Ambient temperature
Ambient humidity
Weight
Operating:
Operating:
Approx. 21 g
Note:
Values in the above table are the initial values.
*4,000 VAC, 50/60 Hz for 1 minute when the P2R-05A or P2R-08A Socket is mounted.
Approved Standards
UL 508 (File No. E41643)
Model
Contact
form
Coil ratings
Contact ratings
10 A, 30 VDC (resistive)
10 A, 250 VAC (general use)
TV-3 (NO contact only)
5 A, 30 VDC (resistive)
5 A, 250 VAC (general use)
TV-3 (NO contact only)
Oper-
ations
6 x 10
3
IEC/VDE (EN61810)
Contact
form
1 pole
Coil ratings
6, 12, 24, 48 VDC
24, 110, 120, 230,
240 VAC
6, 12, 24, 48 VDC
24, 110, 120, 230,
240 VAC
Contact ratings
5 A, 440 VAC (cosφ = 1.0)
10 A, 250 VAC (cosφ = 1.0)
10 A, 30 VDC (0 ms)
5 A, 250 VAC (cosφ =1.0)
5 A, 30 VDC (0 ms)
Operations
100 x 10
3
G2R-1-S SPDT
5 to 110 VDC
5 to 240 VAC
G2R-2-S DPDT
6 x 10
3
2 poles
100 x 10
3
CSA 22.2 No.0, No.14
(File No. LR31928)
Model
Contact
form
Coil ratings
Contact ratings
10 A, 30 VDC (resistive)
10 A, 250 VAC (general use)
TV-3 (NO contact only)
5 A, 30 VDC (resistive)
5 A, 250 VAC (general use)
TV-3 (NO contact only)
Oper-
ations
6 x 10
3
LR
Number
of poles
1 pole
Coil ratings
5 to 110 VDC
5 to 240 VDC
Contact ratings
10 A, 250 VAC (general use)
7.5 A, 250 VAC (PF0.4)
10 A, 30 VDC (resistive)
5A, 30VDC (L/R=7ms)
5 A, 250 VAC (general use)
2 A, 250 VAC (PF0.4)
5 A, 30 VDC (resistive)
3A, 30VDC (L/R=7ms)
Operations
100 x 10
3
G2R-1-S SPDT
5 to 110 VDC
5 to 240 VAC
G2R-2-S DPDT
6 x 10
3
2 poles
5 to 110 VDC
5 to 240 VDC
100 x 10
3
3
G2R-@-S
Engineering Data

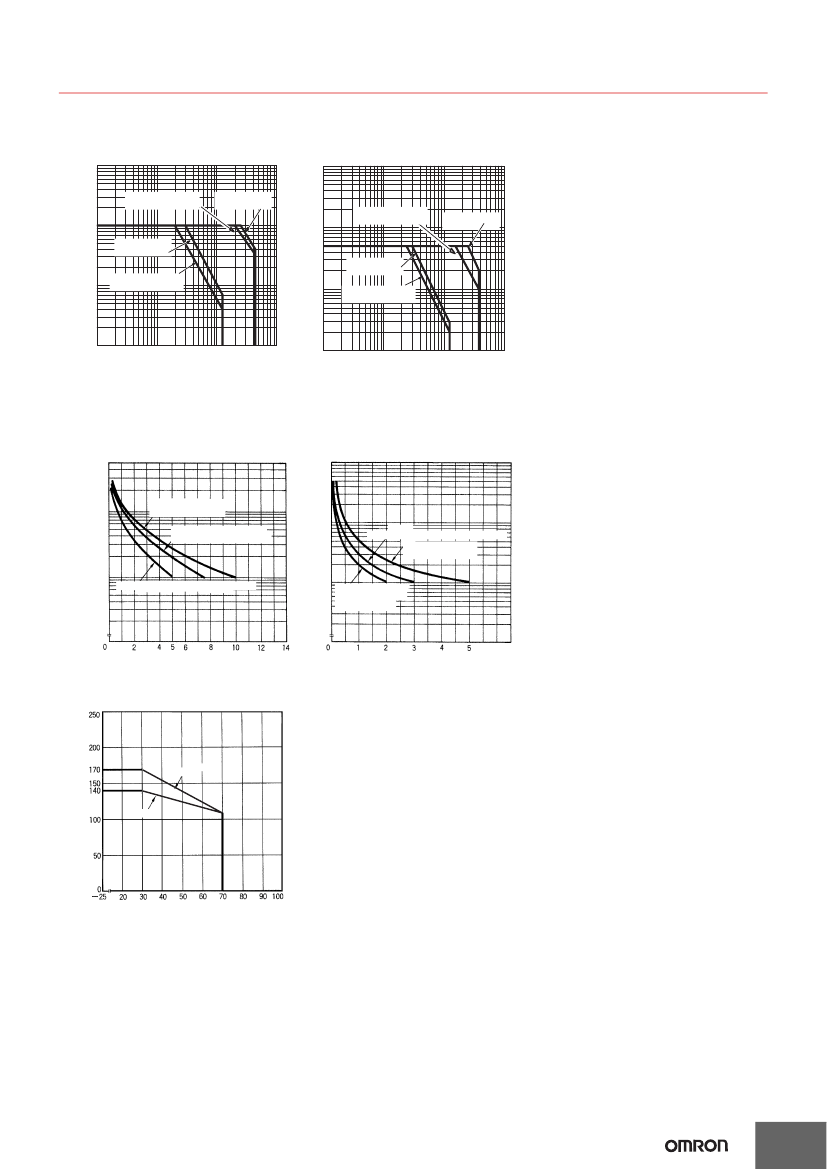

Maximum Switching Power
Plug-in Relays
G2R-1-S
100
G2R-2-S
100
Switching current (A)
Switching current (A)
AC inductive load
(cosφ = 0.4)
AC resistive
load
10
DC resistive
load
DC inductive load
(L/R = 7 ms)
10
AC inductive load
(cosφ = 0.4)
AC resistive
load
DC resistive
load
1
1
DC inductive load
(L/R = 7 ms)
0.1
1
10
100
1000
0.1
1
10
100
1000
Switching voltage (V)
Switching voltage (V)
Endurance
Plug-in Relays
G2R-1-S
Endurance (x10
3
operations)
5,000
G2R-2-S
10,000
Endurance (x10
3
operations)
5,000
1,000
500
250-VAC/30-VDC
resistive load
250-VAC inductive load
(cosφ = 0.4)
1,000
500
30-VDC inductive load (L/R = 7ms)
250-VAC/30-VDC
resistive load
100
50
30-VDC inductive load (L/R = 7ms)
100
250-VAC
50
inductive load
(cosφ = 0.4)
Switching current (A)
Switching current (A)
Ambient Temperature vs Maximum Coil Voltage
Maximum voltage (%)
DC coil
AC coil
Note:
The maximum voltage refers to the maximum
value in a varying range of operating power
voltage, not a continuous voltage.
Ambient temperature (°C)
4
G2R-@-S

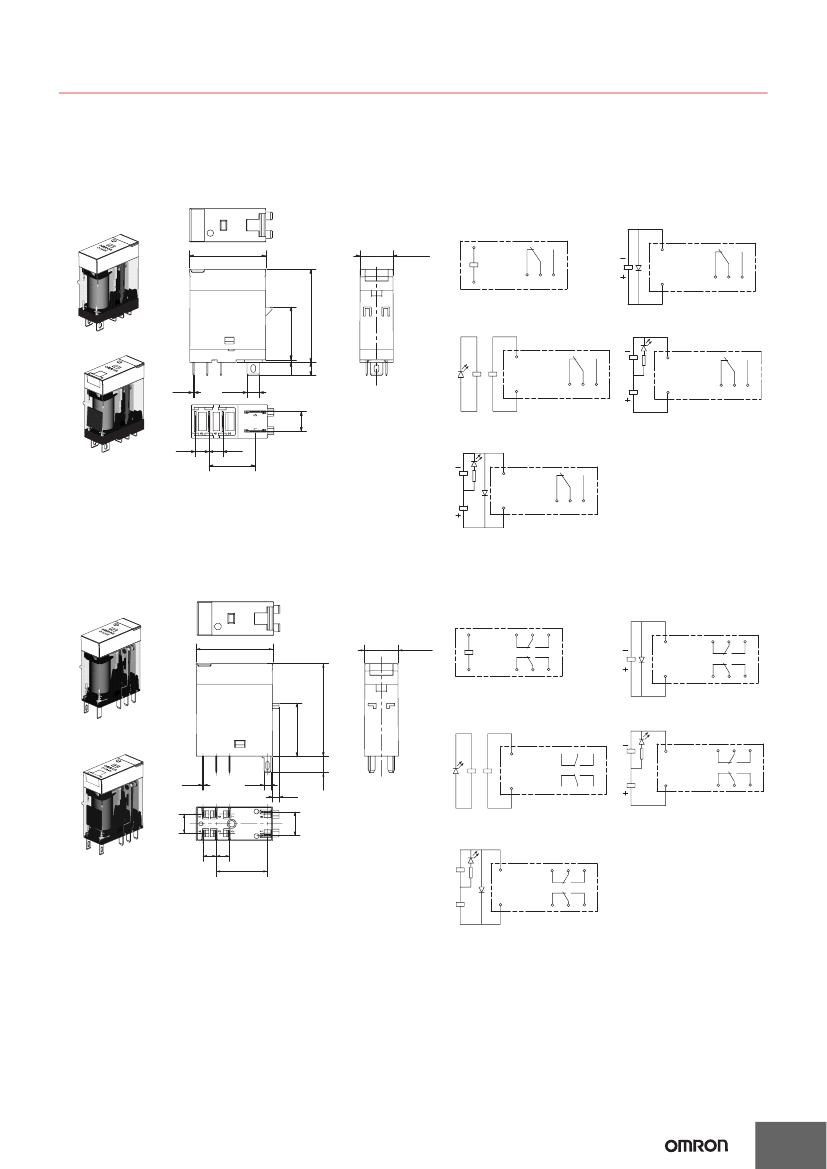

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
Relays with Plug-in Terminals
SPDT Relays
G2R-1-S, G2R-1-SN, G2R-1-SNI
G2R-1-SD, G2R-1-SND, G2R-1-SNDI
Terminal Arrangement/Internal Connections
(Bottom View)
G2R-1-S
1
G2R-1-SD (DC)
29 max.
13 max.
1
5
35.5 max.
2
4
3
5
2
4
3
G2R-1-SN, G2R-1-SNI (AC)
G2R-1-SN, G2R-1-SNI (DC)
20
1
1
DC
24V
1
0.5
4.75
5
5
2
4
3
5
2
4
3
7.5
G2R-1-SND, G2R-1-SNDI (DC)
5.2
5.2
17.5
1
5
2
4
3
DPDT Relays
G2R-2-S, G2R-2-SN, G2R-2-SNI
G2R-2-SD, G2R-2-SND, G2R-2-SNDI
Terminal Arrangement/Internal Connections
(Bottom View)
G2R-2-S
1
2
3
4
G2R-2-SD (DC)
1
2
3
4
29 max.
13 max.
8
7
6
5
8
7
6
5
35.5 max.
G2R-2-SN, G2R-2-SNI (AC)
1
2
3
4
G2R-2-SN, G2R-2-SNI (DC)
1
2
3
4
6.2
0.5
2.5
2.4
20
8
7
6
5
8
7
6
5
7.4
8.9
G2R-2-SND, G2R-2-SNDI (DC)
5
5
19.4
1
2
3
4
8
7
6
5
5
