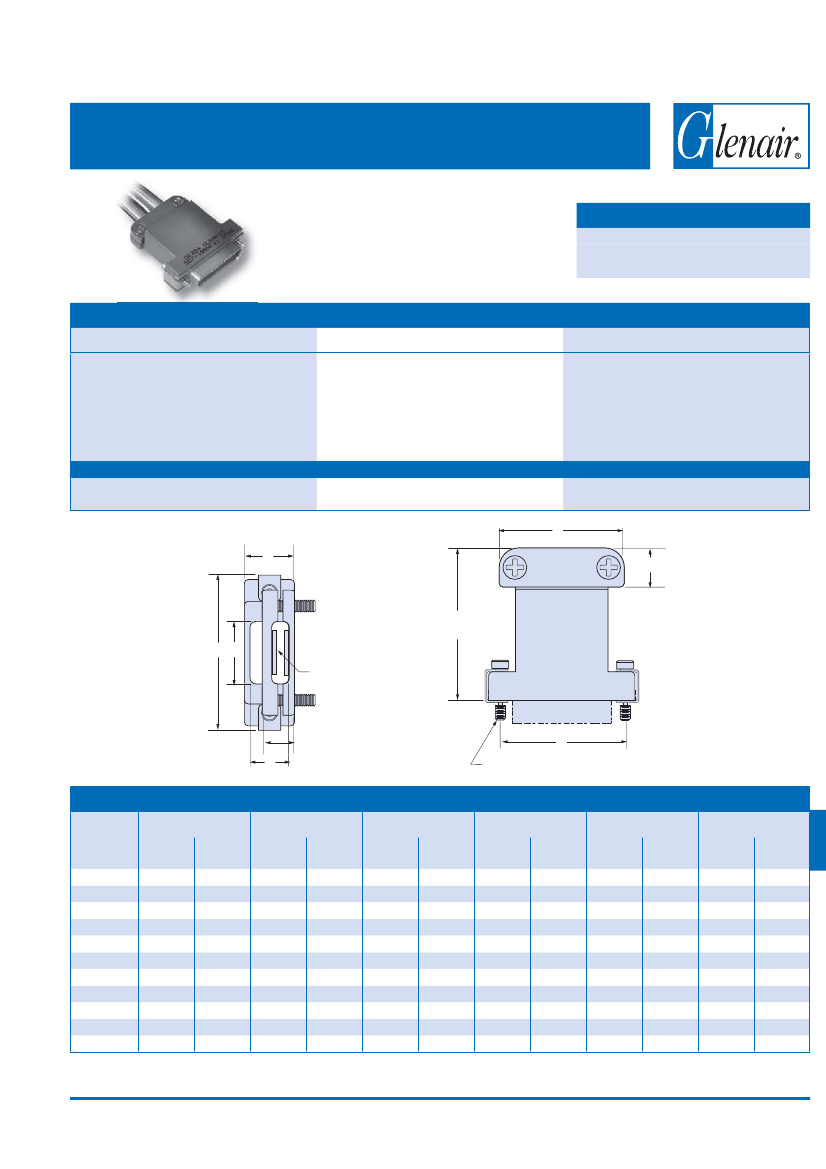

Micro-D Backshells
Strain Relief, Saddle Bars 507-198
507-198 Strain Relief Backshells
feature saddle bar cable clamps for
easy installation.
MATERIALS
Shell
Clips
Hardware
Aluminum Alloy 6061 -T6
17-7PH Stainless Steel
300 Series Stainless Steel
HOW TO ORDER 507-198 STRAIN RELIEF BACKSHELLS
Series
507-198
E
J
M
NF
Z2
Shell Finish
–
Chem Film
–
Cadmium, Yellow Chromate
–
Electroless Nickel
–
Cadmium, Olive Drab
–
Gold
Connector Size
09
15
21
25
31
37
51
51-2
67
69
100
Sample Part Number
507-198
– M
D
B
.312 (7.9)
25
1.25 (31.8)
MAX.
A E
.031 (0.8)
SILICONE PAD
2 PLCS.
F
.24 (6.1)
WITH SADDLES
CLOSED
C
#2-56 UNC THDS. 9-69 PIN
#4-40 UNC THDS. 100 PIN
DIMENSIONS
A Max.
Size
09
15
21
25
31
37
51
51-2
67
69
100
B Max.
In.
.420
.420
.420
.420
.420
.420
.470
.420
.420
.470
.510
C
In.
.565
.715
.865
.965
1.115
1.265
1.215
1.615
2.015
1.515
1.800
D Max.
mm.
14.35
18.16
21.97
24.51
28.32
32.13
30.86
41.02
51.18
38.48
45.72
E
In.
.31
.38
.44
.50
.55
.60
.55
.95
1.35
.85
1.00
F
mm.
7.87
9.65
11.18
12.70
13.97
15.24
13.97
24.13
34.29
21.59
25.40
In.
.850
1.000
1.150
1.250
1.400
1.550
1.500
1.910
2.310
1.810
2.235
mm.
21.59
25.40
29.21
31.75
35.56
39.37
38.10
48.51
58.67
45.97
56.77
mm.
10.67
10.67
10.67
10.67
10.67
10.67
11.94
10.67
10.67
11.94
12.95
In.
.840
.910
.970
1.030
1.080
1.130
1.080
1.480
1.880
1.380
1.650
mm.
21.34
23.11
24.64
26.16
27.43
28.70
27.43
37.59
47.75
35.05
41.91
In.
.31
.31
.31
.31
.31
.31
.36
.31
.31
.36
.40
mm.
7.87
7.87
7.87
7.87
7.87
7.87
9.14
7.87
7.87
9.14
10.04
L
