UDQ2543B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> UDQ2543B

UDQ2543B: DescriptionBuffer/Inverter Based Peripheral Driver, 4 Driver, 1A, BIPolar, PDIP16, POWER, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size133KB，8 Pages; ManufacturerAllegro; Websitehttp://www.allegromicro.com/

Download Datasheet Parametric View All

UDQ2543B Overview

Buffer/Inverter Based Peripheral Driver, 4 Driver, 1A, BIPolar, PDIP16, POWER, DIP-16

UDQ2543B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Allegro
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Built-in protection	TRANSIENT; OVER CURRENT; THERMAL
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Maximum output current	0.7 A
Nominal output peak current	1 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

2543

UDN/UDQ2543B

OUT

GROUND

OUT

ENABLE

GROUND

PROTECTED

QUAD POWER DRIVER

Providing interface between low-level logic and power loads to

100 W, the UDx2543B and UDx2543EB quad power drivers combine

AND logic gates and high-current bipolar outputs. Each of the four

independent outputs can sink up to 700 mA in the ON state. The

outputs have a minimum breakdown voltage (load dump) of 60 V and

a sustaining voltage of 35 V. The inputs are compatible with most

TTL, DTL, LSTTL, and 5 V CMOS and PMOS logic systems.

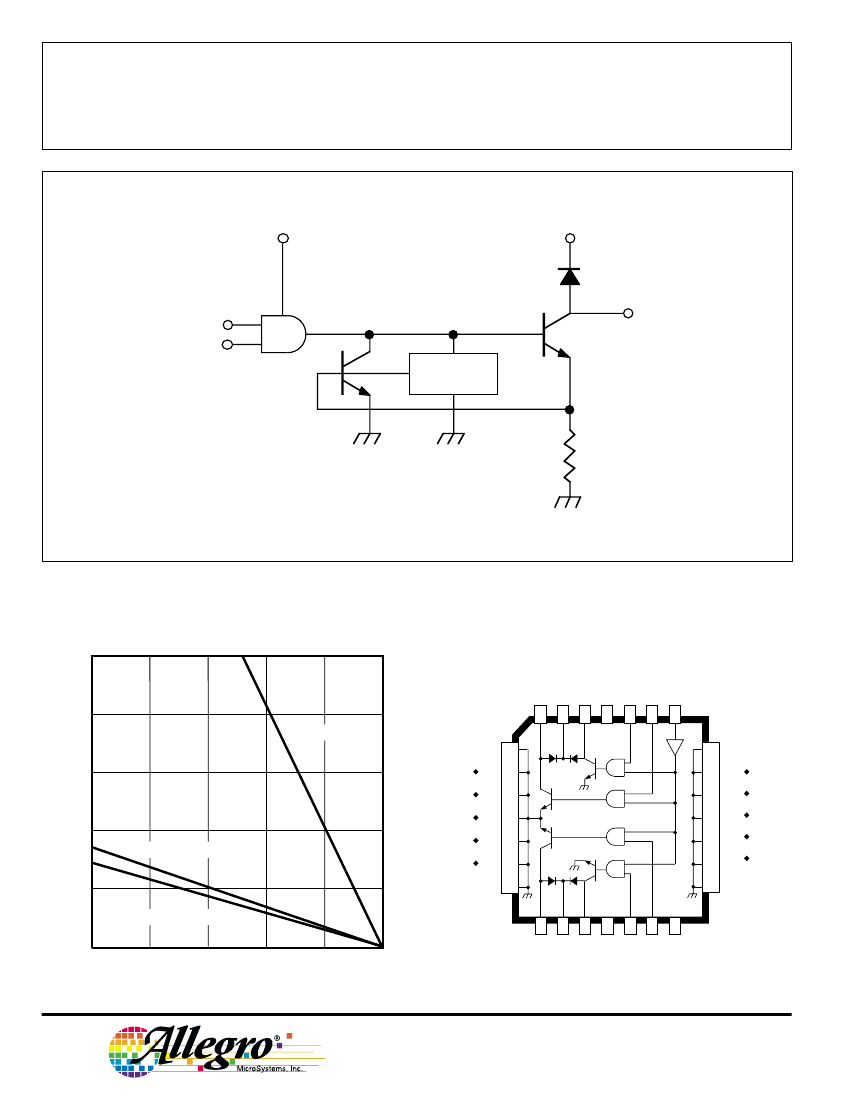

Over-current protection has been designed into each channel of

the UDx2543B/EB and typically occurs at 1 A. It protects any one

channel from output short circuits with supply voltages up to 25 V.

When the maximum output current is reached, that output stage is

driven linearly. If the over-current condition continues, that output’s

thermal limiting will operate, limiting that output’s power dissipation to

approximately 2.4 W. The outputs also include diodes for voltage

clamping with inductive loads such as relays, solenoids, or dc stepper

motors.

These devices are supplied in a 16-pin power DIP of batwing

construction (suffix ‘B’) to provide for maximum package power dissi-

pation. They are also available in a 28-lead PLCC (suffix ‘EB’) for

surface-mount applications. All devices are rated for continuous

operation over the temperature range of -20°C to +85°C (UDN2543B/

EB) or for use in automotive applications over an extended tempera-

ture range as the UDQ2543B/EB.

Data Sheet

29317.2B

Dwg. PP-017-1

ABSOLUTE MAXIMUM RATINGS

at T

= 25

Output Voltage, V

OUT

. . . . . . . . . . . . .

60 V

Over-Current Protected Output Voltage,

OUT

. . . . . . . . . . . . . . . . . . . . . . .

25 V

Output Current, I

OUT

. . . . . . . . . . . . .

1.0 A*

Supply Voltage, V

. . . . . . . . . . . . . .

7.0 V

Input Voltage, V

or V

. . . . . . . . . .

18 V

Package Power Dissipation,

. . . . . . . . . . . . . . . . . . . .

See Graph

Operating Temperature Range, T

(UDN2543B/EB)

. . . . -20

C to +85

(UDQ2543B/EB)

. . . . -40

C to +85

Storage Temperature Range,

. . . . . . . . . . . . . . .

-55

C to +150

*Outputs are peak current limited at approxi-

mately 1.0 A per driver. See Circuit Description

and Applications for further information.

FEATURES

700 mA Output Current per Channel

Low Output-Saturation Voltage

Integral Output Transient-Suppression Diodes

TTL, CMOS, PMOS, NMOS Compatible Inputs

Independent Over-Current Protection for Each Output

Always order by complete part number:

Part Number

UDN2543B

UDN2543EB

UDQ2543B

UDQ2543EB

Package

16-Pin DIP

28-Lead PLCC

16-Pin DIP

28-Lead PLCC

Operating Temperature

-20

C to +85

-20

C to +85

-40

C to +85

-40

C to +85
