MIL-DTL-83513
Micro-D
507-164

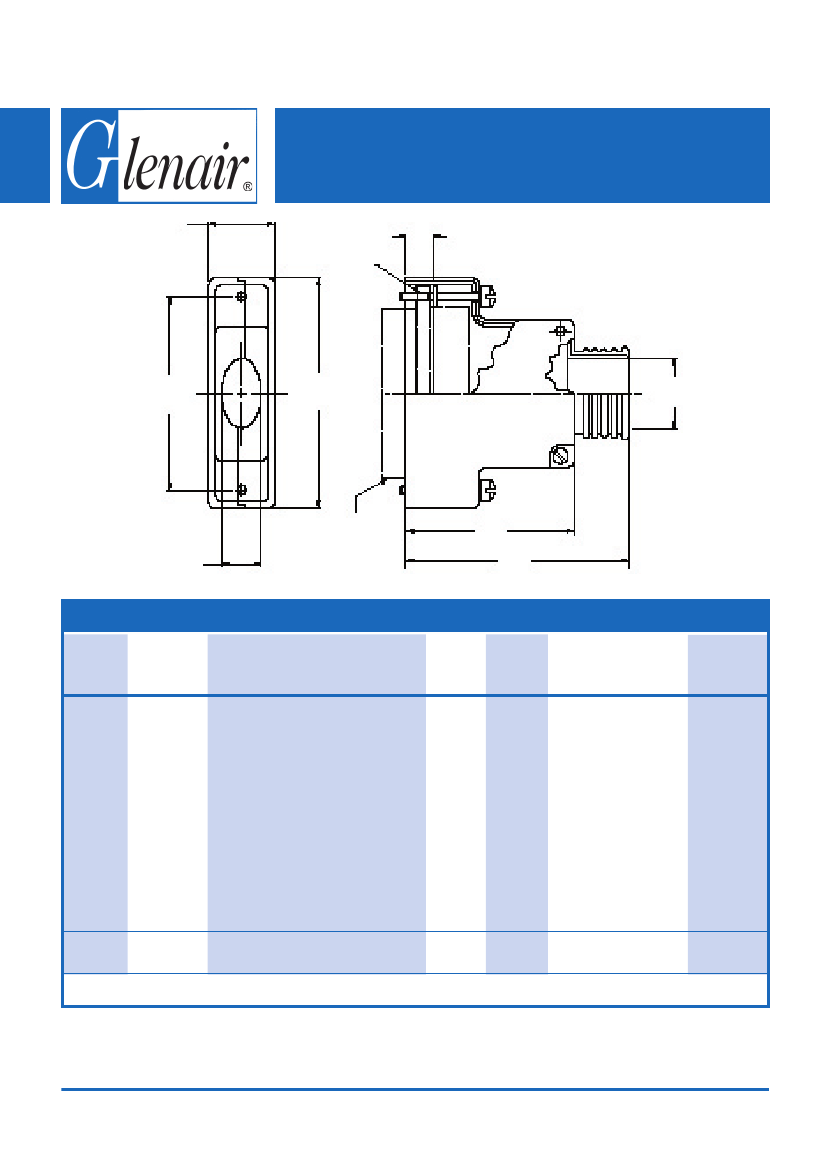

EMI/RFI Split Banding Micro-D Backshell
Elliptical Entry
C
J Thread
Typ.
.125 (3.2)
B
A
H
F
Connector
Shown For
Reference
Only
D
E
HOW TO ORDER
Basic
Part
Number
164
Shell
Plating *
C
– Black Anodize
E
– Chem. Film
J
– Gold Iridite Over Cadmium
Over Electroless Nickel
M
– Electroless Nickel
NF
– Cadmium, Olive Drab Over
Electroless Nickel
Z 2
– Gold
Dash
Shell
No.
Size
(Table I) (Table Il) Hardware Options *
09
15
21
25
31
37
51
100
04
05
06
07
08
09
10
11
12
13
14
15
16
05
Band
Option
Series
507
B
– (2) male fillister
B
head
E
– (2) extended
600-057
jackscrew
Band
H
– (2) male hex
Supplied
socket
- (Omit if Not
F
– (2) female
Requred)
jackpost
Sample Part Number:
507 —
164
M
21
B
B
* SEE PAGE C-4 FOR COMPLETE INFORMATION
Metric dimensions (mm) are indicated in parentheses.
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-26
507-164
EMI/RFI Split Banding Micro-D Backshell
Elliptical Entry
Elliptical entry Micro-D backshells offer greater wire
accomodation than round entry backshells. These rugged
aluminum backshells are designed for use with Glenair’s
EMI bands for shield termination. Please see page C-3 for
elliptical entry cable bundle diameters.
•
•
•
Elliptical Entry for Increased Wire Bundle Size
Aluminum Alloy
Supplied with Mounting Hardware
TABLE I: DIMENSIONS
SHELL
SIZE
09
15
21
25
31
37
51
100
SHELL
SIZE
09
15
21
25
31
37
51
100
B
A
.915 (23.2)
1.065 (27.1)
1.215 (30.9)
1.315 (33.4)
1.465 (37.2)
1.615 (41.0)
1.565 (39.8)
2.305 (58.5)
E Dia
±.020
(.5)
.968 (24.6)
1.031 (26.2)
1.062 (27.0)
1.125 (28.6)
1.156 (29.4)
1.218 (30.9)
1.281 (32.5)
1.343 (34.1)
±.005
.565
.715
.865
.965
1.115
1.265
1.215
1.800
(0.1)
(14.4)
(18.2)
(22.0)
(24.5)
(28.3)
(32.1)
(30.9)
(45.7)
C
.450 (11.4)
.450 (11.4)
.450 (11.4)
.450 (11.4)
.450 (11.4)
.450 (11.4)
.450 (11.4)
.540 (13.7)
G THREAD
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
2-56 UNC-2
4-40 UNC-2
±.010
.656
.718
.750
.812
.843
.906
.968
1.031
D
(.3)
(16.7)
(18.2)
(19.1)
(20.6)
(21.4)
(23.0)
(24.6)
(26.2)
TABLE II: CABLE ENTRY
DASH
NO.
04
05
06
07
08
09
10
11
12
13
14
15
16
H
.250
.312
.375
.437
.500
.562
.625
.688
.750
.812
.875
.938
1.000
(6.4)
(7.9)
(9.5)
(11.1)
(12.7)
(14.3)
(15.9)
(17.5)
(19.1)
(20.6)
(22.2)
(23.8)
(25.4)
F Dia
±.010
(.3)
.160 (4.1)
.190 (4.8)
.220 (5.6)
.260 (6.6)
.275 (7.0)
.285 (7.2)
.350 (8.9)
.490 (12.4)
MAX DASH NO.
(TABLE II)
04
05
06
08
10
13
12
16
Metric dimensions (mm) are indicated in parentheses.
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-27
MIL-DTL-83513
Micro-D
