FM540-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FM540-H

FM540-H: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, DO-214AB, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size655KB，3 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/; Environmental Compliance

Download Datasheet Parametric View All

FM540-H Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, DO-214AB, SMC, 2 PIN

FM540-H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FRONTIER
package instruction	R-PDSO-F2
Reach Compliance Code	unknown
Other features	LOW POWER LOSS
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	500 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

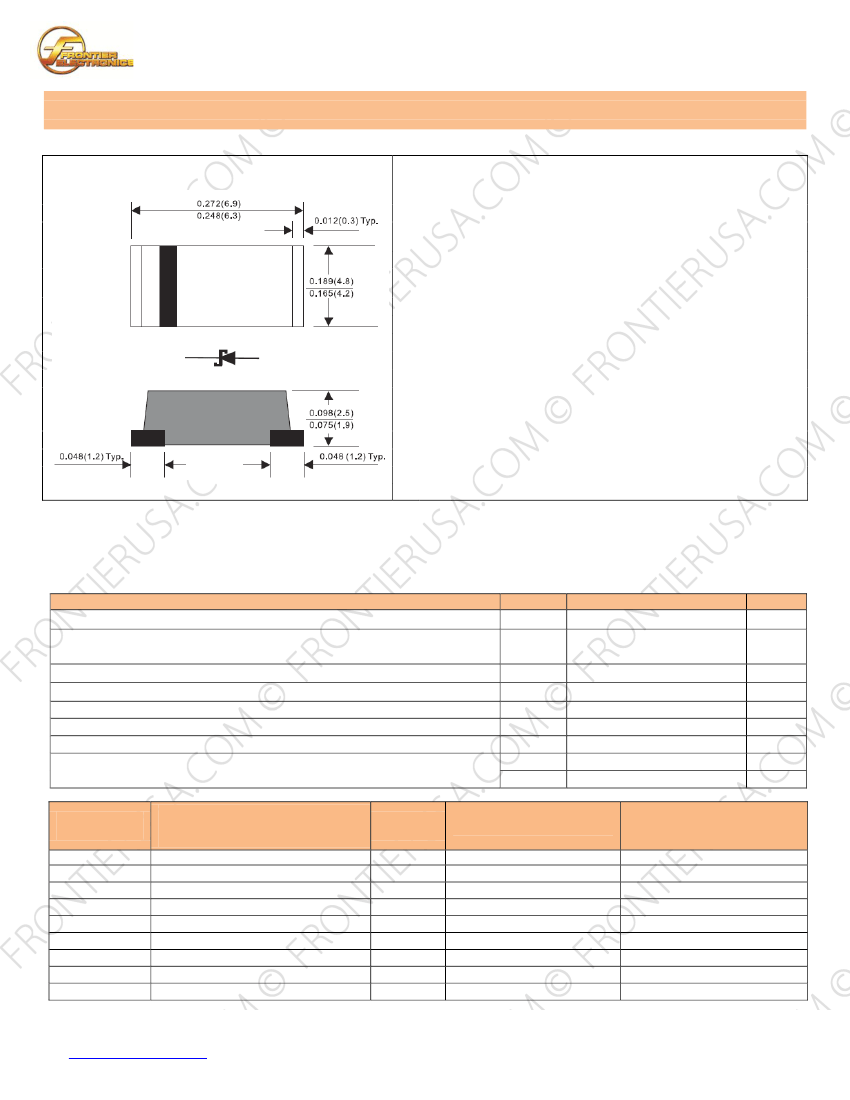

FM520 THRU FM5200

SPECIFICATION

5A SMD SCHOTTKY BARRIER RECTIFIERS, 20V-200V

Rev. A

PRODUCT FEATURES

FLAMMABILITY CLASSIFICATION 94V-0

EXCELLENT REVERSE LEAKAGE CURRENT AND

THERMAL RESISTANCE

HIGH CURRENT CAPABILITY, LOW POWER LOSS

SILICON EPITAXIAL PLANAR CHIP, METAL SILICON

JUNCTION

GUARDRING FOR OVERVOLTAGE PROTECTION

CASE: TRANSFER MOLDED, DO-214AB (SMC)

DIMENSIONS IN INCHES AND (MILLIMETERS)

LEADS: SOLDERABILITY PER MIL-STD-750 METHOD 2026

WEIGHT: 0.19 GRAMS

RoHS COMPLIANT, ADD SUFFIX “H” FOR HALOGEN FREE

i.e. FM520-H: RoHS COMPLIANT/HALOGEN FREE

ELECTRICAL CHARACTERISTICS

MAXIMUM RATINGS (T

=25°C UNLESS OTHERWISE NOTED ) AND ELECTRICAL CHARACTERISTICS

RATING

SYMBOL

MAXIMUM FORWARD RECTIFIED CURRENT

PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF SINE-WAVE

SUPERIMPOSED ON RATED LOAD

TYPICAL JUNCTION CAPACITANCE BETWEEN TERMINALS (NOTE 1)

STORAGE TEMPERATURE RANGE

OPERATING JUNCTION TEMPERATURE RANGE (NOTE 2)

MAX. DC REVERSE CURRENT AT RATED DC BLOCKING VOLTAGE T

= 25°C

MAX. DC REVERSE CURRENT AT RATED DC BLOCKING VOLTAGE T

= 100°C

TYPICAL THERMAL RESISTANCE

MAX RECURRENT PK REVERSE

VOLTAGE/DC BLOCKING V

RRM

(V)

100

150

200

FSM

STG

150

380

- 65 TO +175

- 55 TO +150

0.5

UNITS

°C

°C/W

PART

NUMBER

FM520

FM530

FM540

FM550

FM560

FM580

FM5100

FM5150

FM5200

MAX V

RMS

(V)

105

140

TYPICAL FORWARD

VOLTAGE AT I

= 5A

(V)

0.55

0.70

0.85

0.90

0.92

MARKING

SS52

SS53

SS54

SS55

SS56

SS58

S510

S515

S520

NOTE︰1. MEASURE AT 1MHz WITH 4VDC REVERSE VOLTAGE APPLIED .

2. FOR THE FM520 THRU FM540, THE OPERATING JUNCTION TEMPERATURE RANGE IS FROM -55 TO +125°C

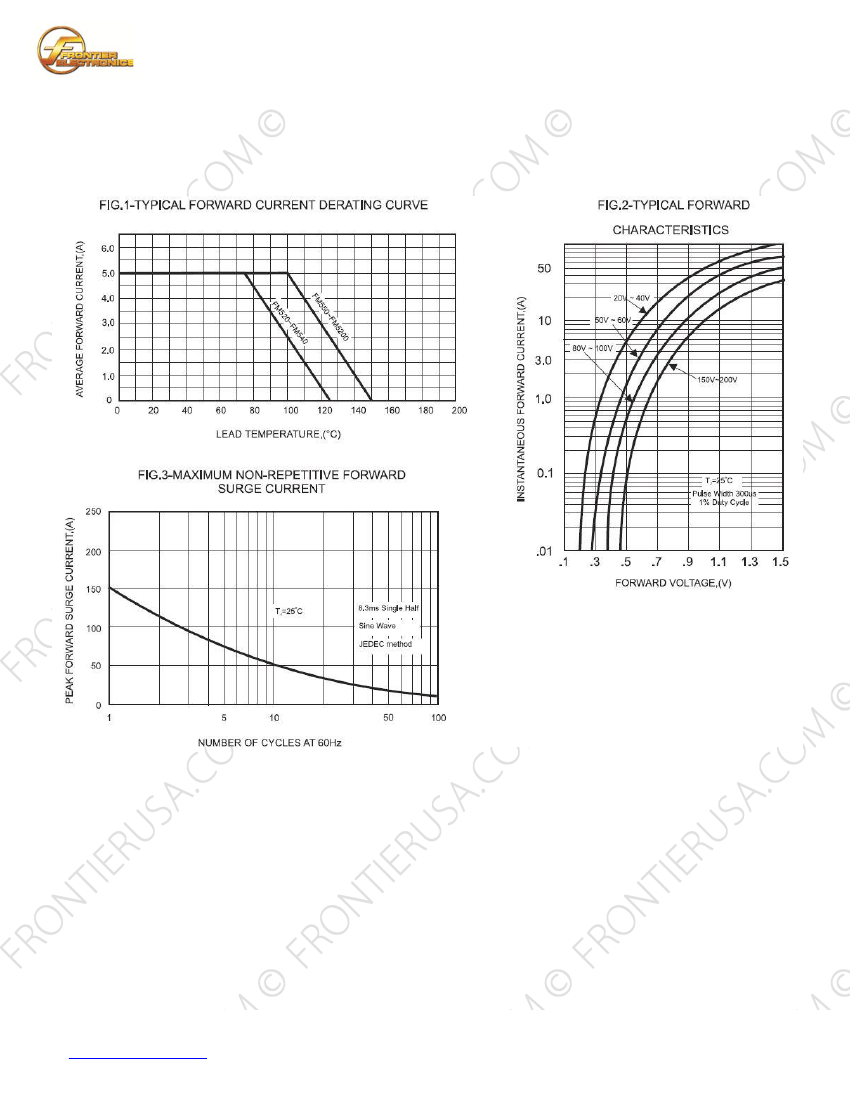

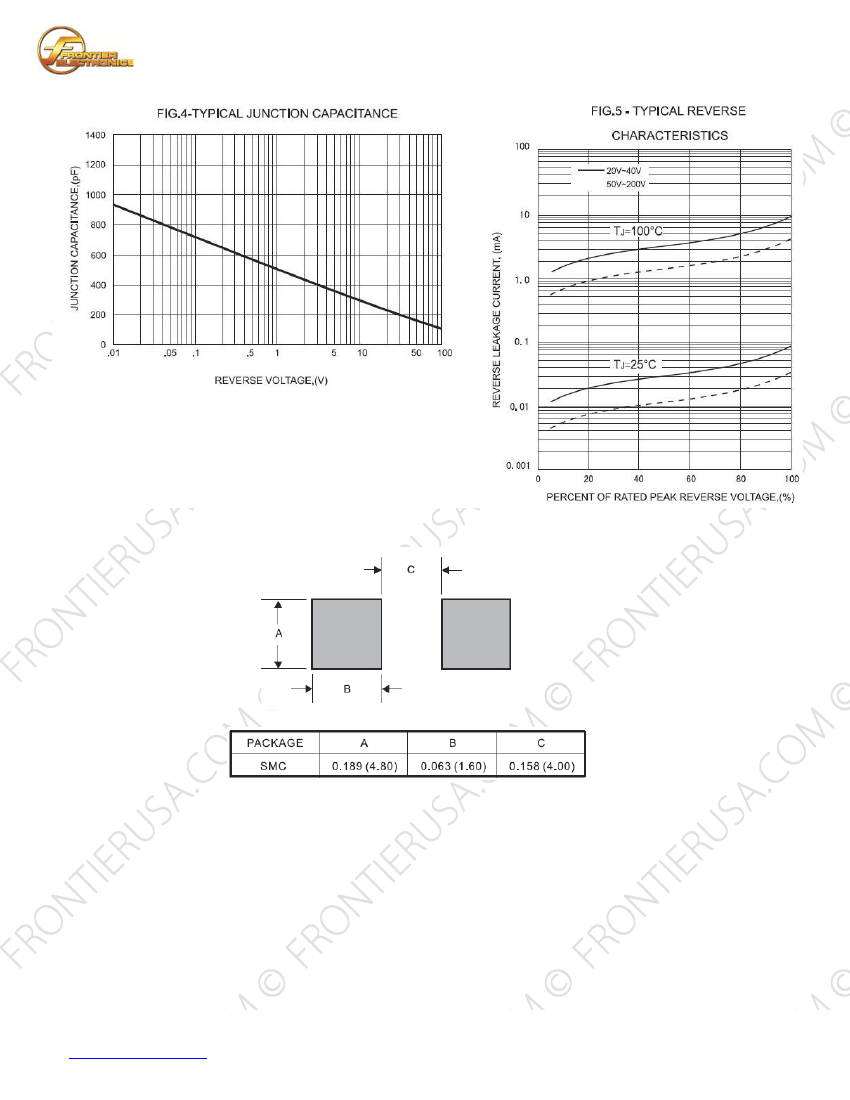

Frontier Electronics Corp.

http://www.frontierusa.com

Page

667 E. Cochran St., Simi Valley, CA 93065

Phone: 1-805-522-9998, Fax: 1-805-522-9989
