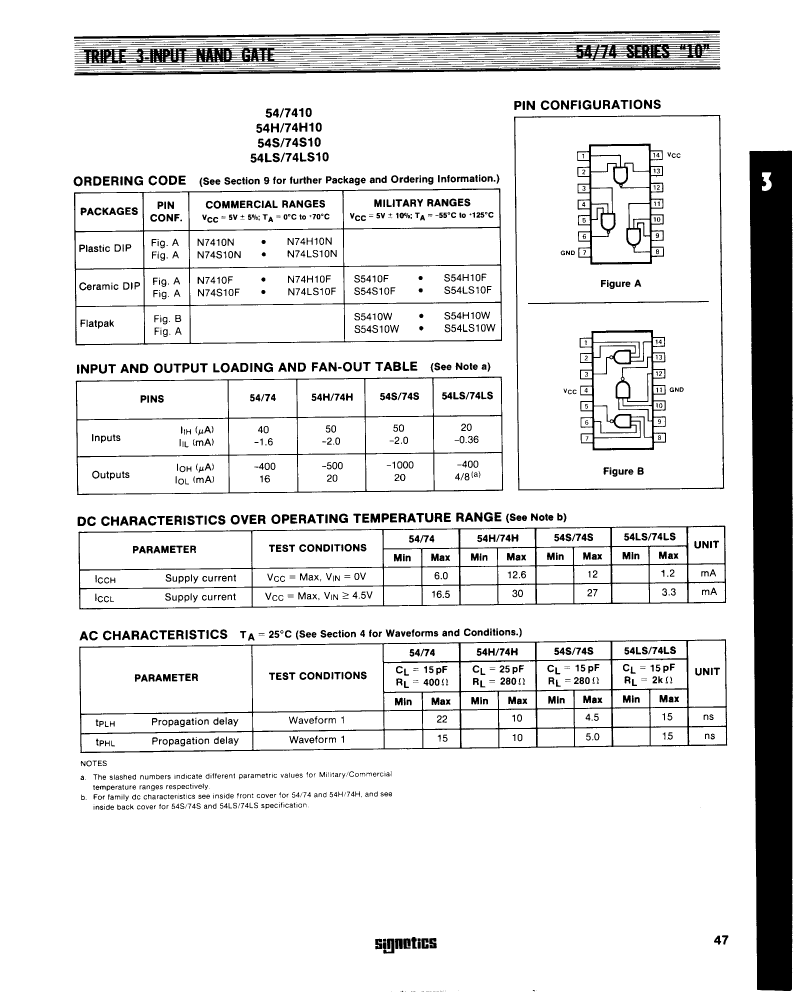

S54H10F

Description
NAND Gate, TTL, CDIP14
Categorylogic    logic
File Size67KB,1 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric Compare View All

S54H10F Overview

NAND Gate, TTL, CDIP14

S54H10F Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
package instructionDIP, DIP14,.3
Reach Compliance Codeunknown
JESD-30 codeR-XDIP-T14
JESD-609 codee0
Logic integrated circuit typeNAND GATE
MaximumI(ol)0.02 A
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Maximum supply current (ICC)30 mA
Prop。Delay @ Nom-Sup10 ns
Certification statusNot Qualified
Schmitt triggerNO
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1
