SN74LS15ND datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS15ND

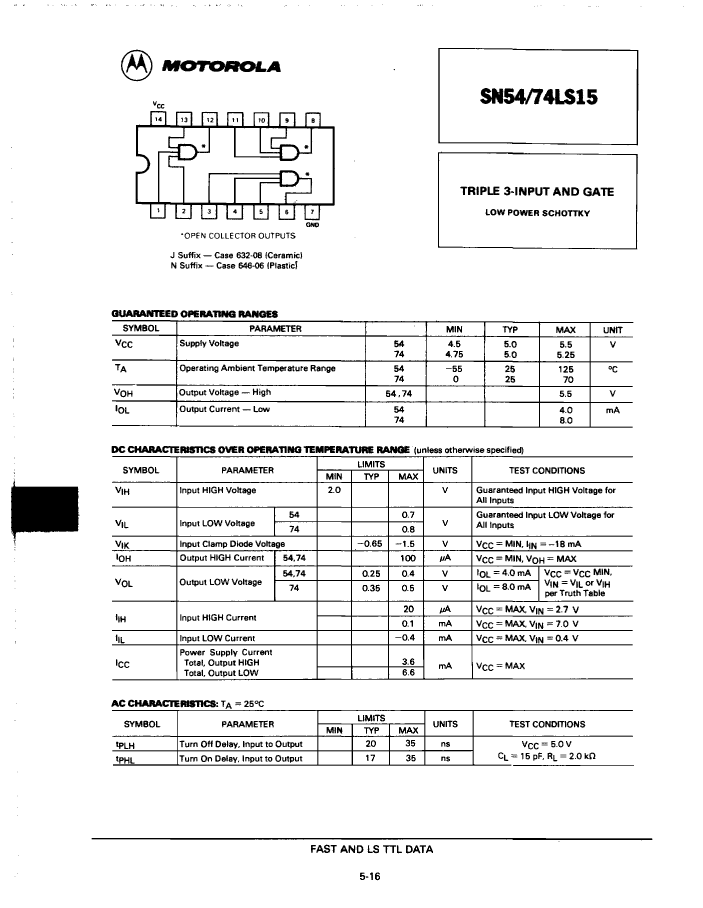

SN74LS15ND: DescriptionLS SERIES, TRIPLE 3-INPUT AND GATE, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size27KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS15ND Overview

LS SERIES, TRIPLE 3-INPUT AND GATE, PDIP14, PLASTIC, DIP-14

SN74LS15ND Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	18.86 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.008 A
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	6.6 mA
Prop。Delay @ Nom-Sup	35 ns
propagation delay (tpd)	35 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

SN74LS15ND Related Products

	SN74LS15ND	SN54LS15JD	SN74LS15JD
Description	LS SERIES, TRIPLE 3-INPUT AND GATE, PDIP14, PLASTIC, DIP-14	AND Gate, LS Series, 3-Func, 3-Input, TTL, CDIP14, CERAMIC, DIP-14	LS SERIES, TRIPLE 3-INPUT AND GATE, CDIP14, CERAMIC, DIP-14
package instruction	DIP, DIP14,.3	DIP,	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	R-PDIP-T14	R-GDIP-T14	R-GDIP-T14
length	18.86 mm	19.495 mm	19.495 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	AND GATE	AND GATE	AND GATE
Number of functions	3	3	3
Number of entries	3	3	3
Number of terminals	14	14	14
Maximum operating temperature	70 °C	125 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	6.6 mA	6.6 mA	6.6 mA
propagation delay (tpd)	35 ns	35 ns	35 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.69 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1
Maker	Motorola ( NXP )	-	Motorola ( NXP )
Parts packaging code	DIP	-	DIP
Contacts	14	-	14
JESD-609 code	e0	-	e0
Encapsulate equivalent code	DIP14,.3	-	DIP14,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	-	5 V
Schmitt trigger	NO	-	NO
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
