507-035-Z251F: DescriptionMicro-D Backshells Potting Shell 507-035; File Size88KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

507-035-Z251F Overview

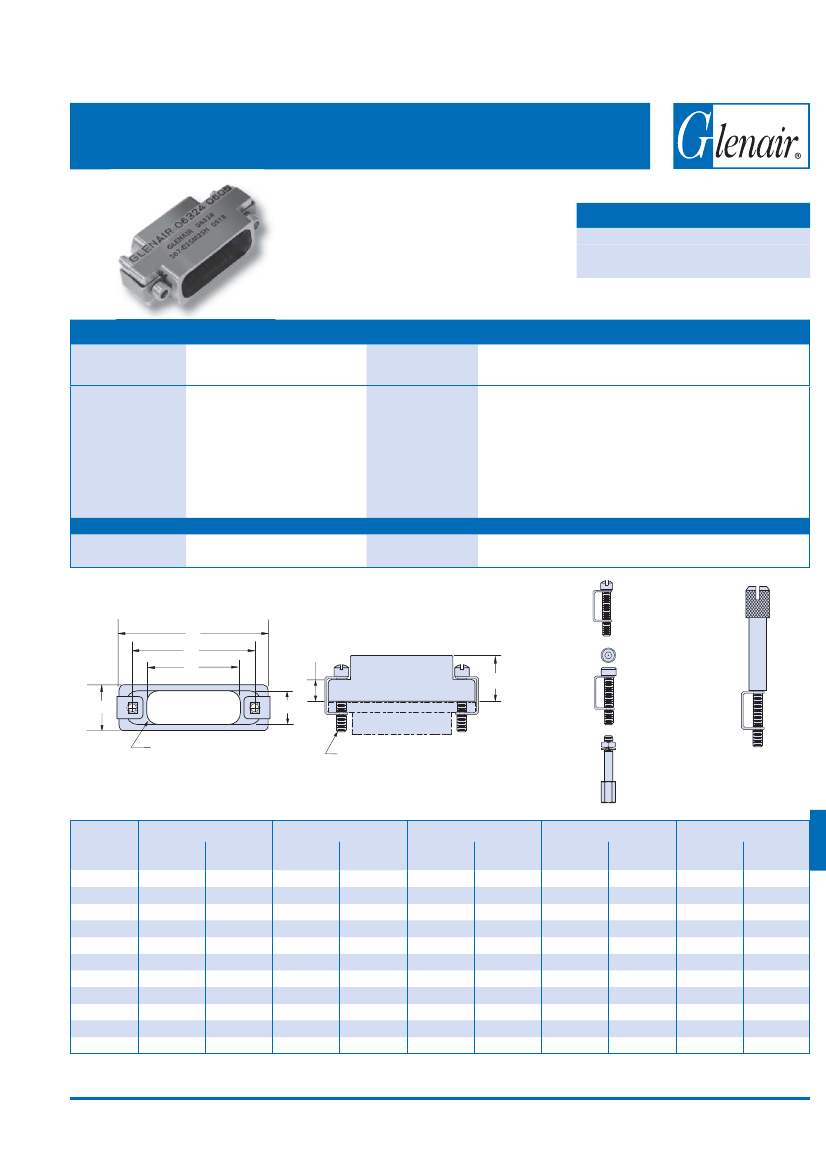

Micro-D Backshells Potting Shell 507-035

Preview

Download Datasheet

View All

Micro-D Backshells

Potting Shell 507-035

Potting Shells

provide easy

encapsulation of Micro-D solder cup

terminations. These potting shells

provide .25 inches (6.3 mm.) of depth.

MATERIALS

Shell

Clips

Hardware

Aluminum Alloy 6061 -T6

17-7PH Stainless Steel

300 Series Stainless Steel

HOW TO ORDER 507-035 POTTING SHELLS

Series

507-035

Shell Finish

– Chem Film

–

Cadmium, Yellow Chromate

–

Electroless Nickel

–

Cadmium, Olive Drab

–

Gold

Connector Size

51-2

100

Hardware Option

Omit for Fillister Head Jackscrew

–

Hex Head Jackscrew

–

Extended Jackscrew

–

Jackpost, Female

Sample Part Number

507-035

– M

CODE B

FILLISTER HEAD

JACKSCREW

.175 (4.4)

.395 (9.27) MAX.

CONNECTOR ORDERED

SEPARATELY

CODE H

HEX HEAD

JACKSCREW

.094 (2.4) RADIUS 4 PLCS.

#2-56 UNC THDS. 9-69 PIN

#4-40 UNC THDS. 100 PIN

CODE F

FEMALE

JACKPOST

CODE E

EXTENDED

JACKSCREW

A Max.

Size

51-2

100

B Max.

mm.

21.59

25.40

29.21

31.75

35.56

39.37

38.10

48.51

58.67

45.97

56.77

mm.

9.40

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

51.18

38.48

45.72

mm.

± 0.8

7.9

12.2

16.5

19.1

22.4

26.2

24.9

35.0

45.2

32.5

34.3

In.

.850

1.000

1.150

1.250

1.400

1.550

1.500

1.910

2.310

1.810

2.235

In.

.370

.410

.370

.410

.460

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

2.015

1.515

1.800

In.

± .030

.31

.48

.65

.75

.88

1.03

.98

1.38

1.78

1.28

1.35

In.

± .030

.26

.30

.26

.30

.36

mm.

± 0.8

6.6

7.6

6.6

7.6

9.1

10.41

9.40

10.41

11.68

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

L-13
