FML-05D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FML-05D

FML-05D: DescriptionRectifier Diode, 1 Phase, 1 Element, 5A, 200V V(RRM), Silicon, TO-220AC, PLASTIC, ITO-220AC, 3/2 PIN; CategoryDiscrete semiconductor diode; File Size58KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

FML-05D Overview

Rectifier Diode, 1 Phase, 1 Element, 5A, 200V V(RRM), Silicon, TO-220AC, PLASTIC, ITO-220AC, 3/2 PIN

FML-05D Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	65 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

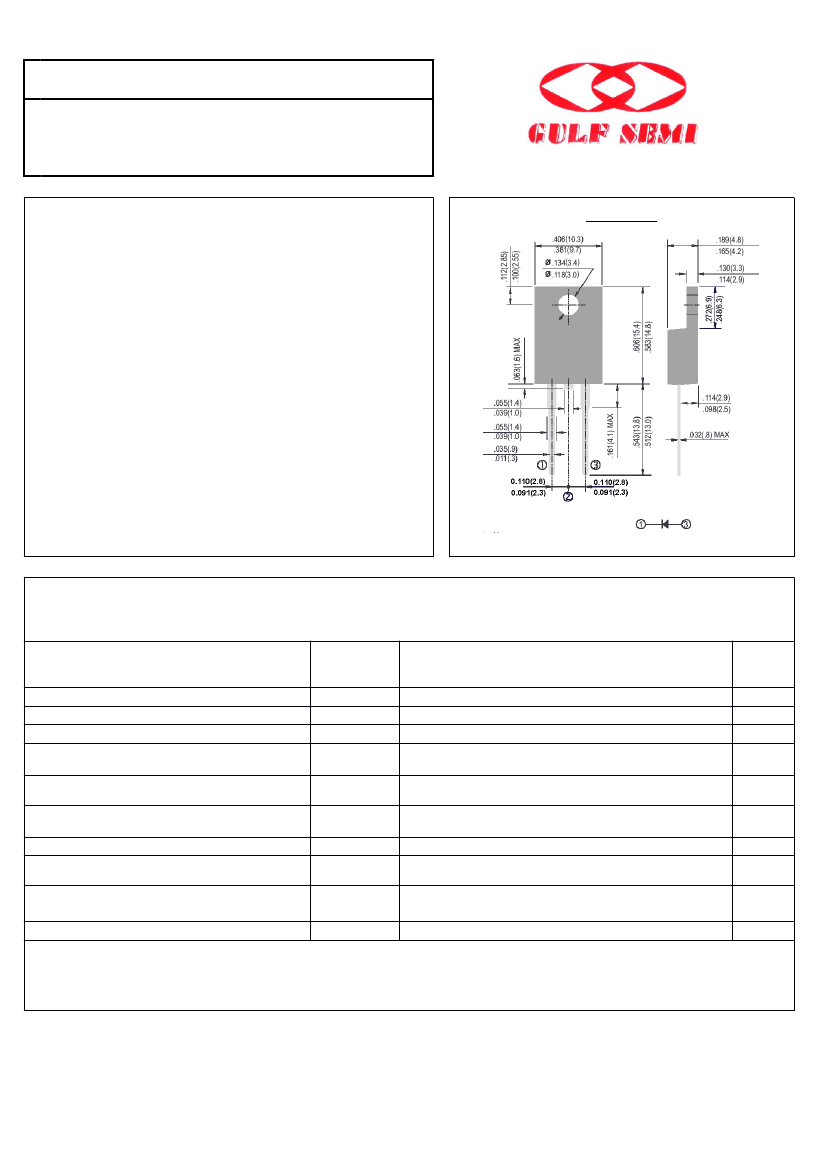

FML-05D

Ultra fast Plastic Power Rectifiers

VOLTAGE: 200V

CURRENT: 5.0A

FEATURE

• Plastic package has Underwriters Laboratories

Flammability Classification 94V-0

• Ideally suited for use in very high frequency switching

power supplies, inverters and as free wheeling diodes

• Ultra fast recovery time for high efficiency

• Excellent high temperature switching

• Glass passivated junction

•High voltage and high reliability

• High speed switching

• Low forward voltage

ITO-220AC

MECHANICAL DATA

Case: JEDEC TO-220 molded plastic body over

passivated chip

Terminals: Plated axial leads, solderable per

MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum

Recurrent Peak Reverse Voltage

RMS Voltage

DC blocking Voltage

Average Forward Rectified

at Tc =120

°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at rated Forward

Current and 25

°C

at 5A

Maximum Reverse Recovery Time (Note 1)

Typical thermal resistance junction to case

Maximum DC Reverse Current

Ta =25

°C

at rated DC blocking voltage

Ta =125

°C

Storage and Operating Temperature Range

Vrrm

Vrms

Vdc

If(av)

Ifsm

Trr

Tstg, Tj

FML-05D

200

140

200

5.0

0.98

5.0

100

-55 to +150

units

C/W

µA

°C

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

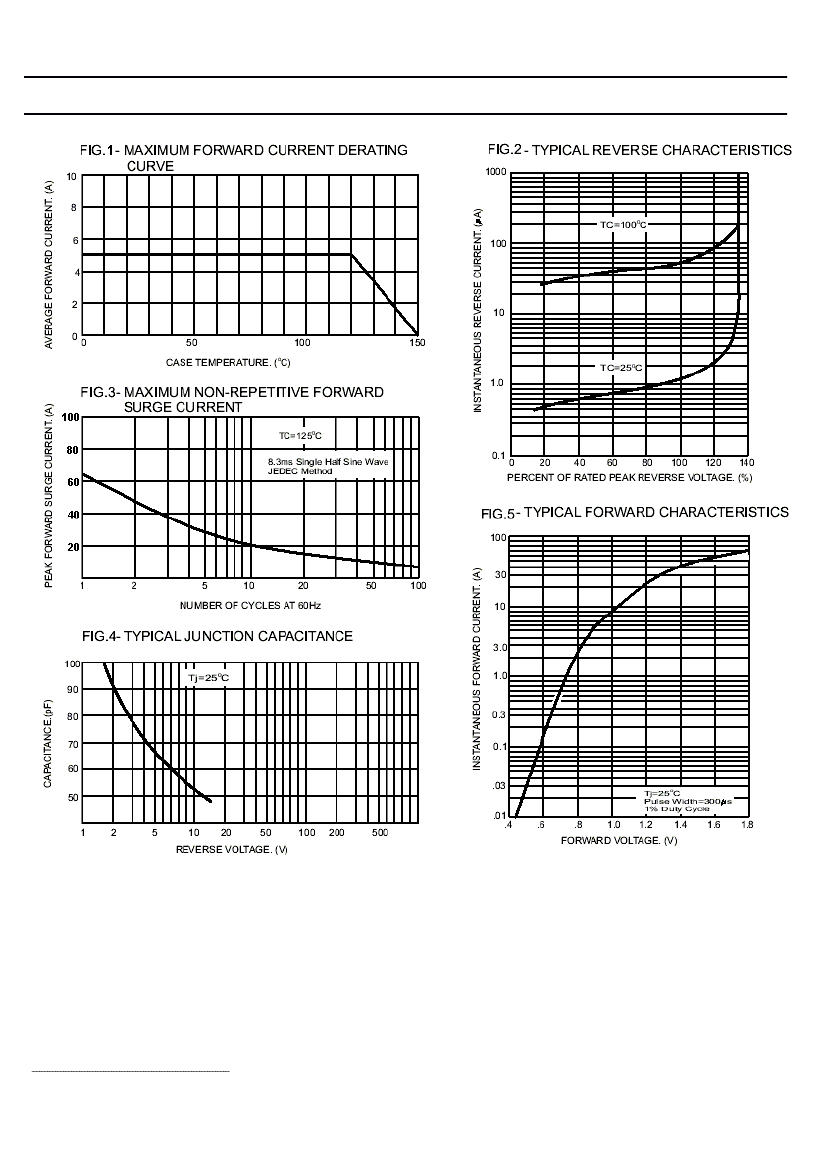

Rev.A2

www.gulfsemi.com
