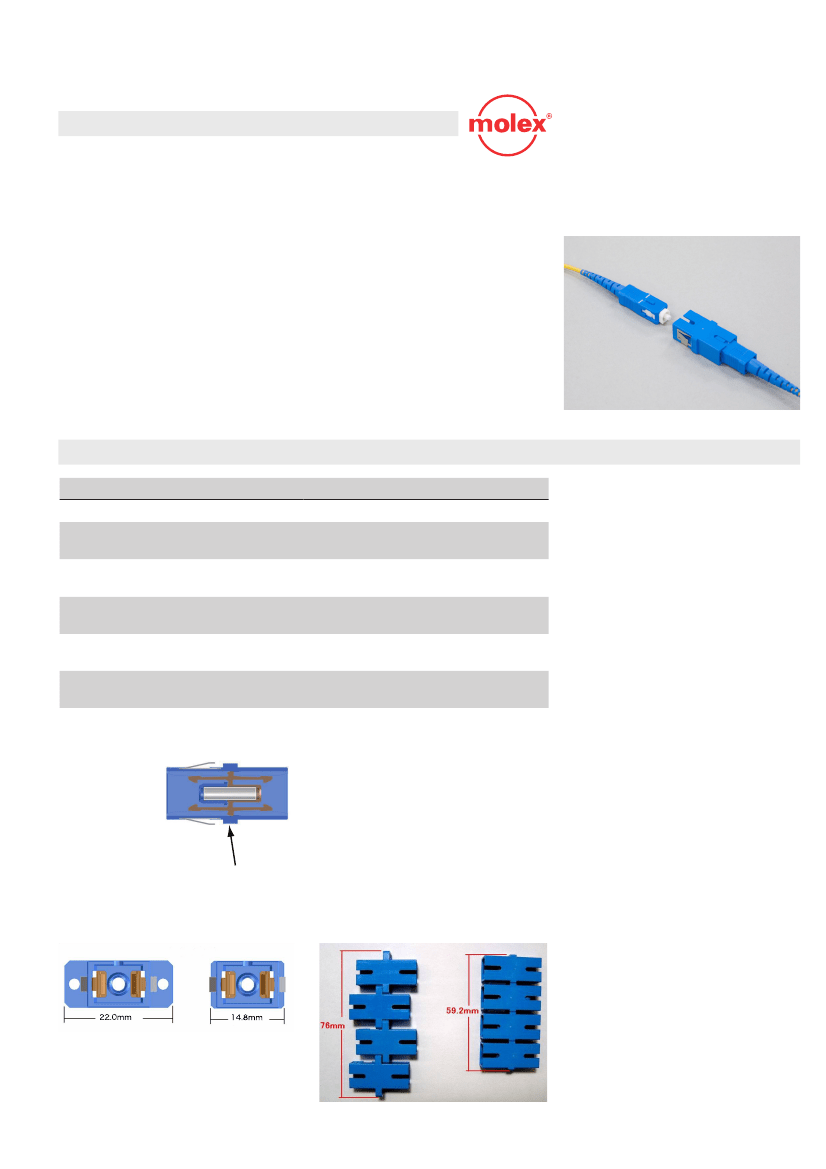

INTRODUCTION
Molex’s new SC Adapter provides 30% space savings
versus previous industry-standard versions.
This new Compact SC adapter offers the lowest profile
height (14.80mm) in the industry. It includes metal
spring panel-mount clips that enable more compact
stacking. The sturdy one-piece design is more durable
than competitive 2-piece versions that can come apart
from rugged use.
The major application for this new connector is in
Fiber-to-the-Home systems that require rugged
connectors that meet high bandwidth needs.
Specifications:
n
eferenceInformation
R
Packaging: Tray
Mates With: SC connectors
Designed In: mm
n
Electrical
Insertion Loss: 0.30 dB max.
n
Physical
Housing: PBT and PPS, glass-filled
Contact: Zirconia
Operatiing Temperature:
-25°C to +75°C
FEATURES AND BENEFITS
FEATURES
n
Lowest profile (14.80mm) in the industry
n
Spring panel-mount ears versus screw type
n
Rugged one-piece design
n
Zirconia or Phosphor Bronze alignment sleeves
n
Reduced number of component parts
n
Dust cap included
BENEFITS
n
Space savings
n
More compact stacking
n
Protects against bending or breaking compared
to two-piece systems
n
Meets industry standards and easy to distinguish
n
More durable and compact
n
Protection of contact area
Compact SC Adapter
501753
With Zirconia Sleeve
Durable one-piece outer shell design
30% Space Saving versus industy Standard Types
APPLICATION
n
Telecommunications
– Fiber Cabinet
– ONU / Media Convertor
n
Fiber-to-the-Home (FTTH)
Compact SC Adapter
501753
With Zirconia Sleeve
ORDERING INFORMATION
Order No.
501753-0104
501753-0004
Description
Without panel-mount spring clip
With panel-mount spring clip
