RJLSE-61443-02T datasheet, PDF

Datasheet> All Categories > The connector> The connector> RJLSE-61443-02T

RJLSE-61443-02T: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

RJLSE-61443-02T Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

RJLSE-61443-02T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	SHIELDED, 2 PORT 4 POSITION EACH, LOW PROFILE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	RJLSE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

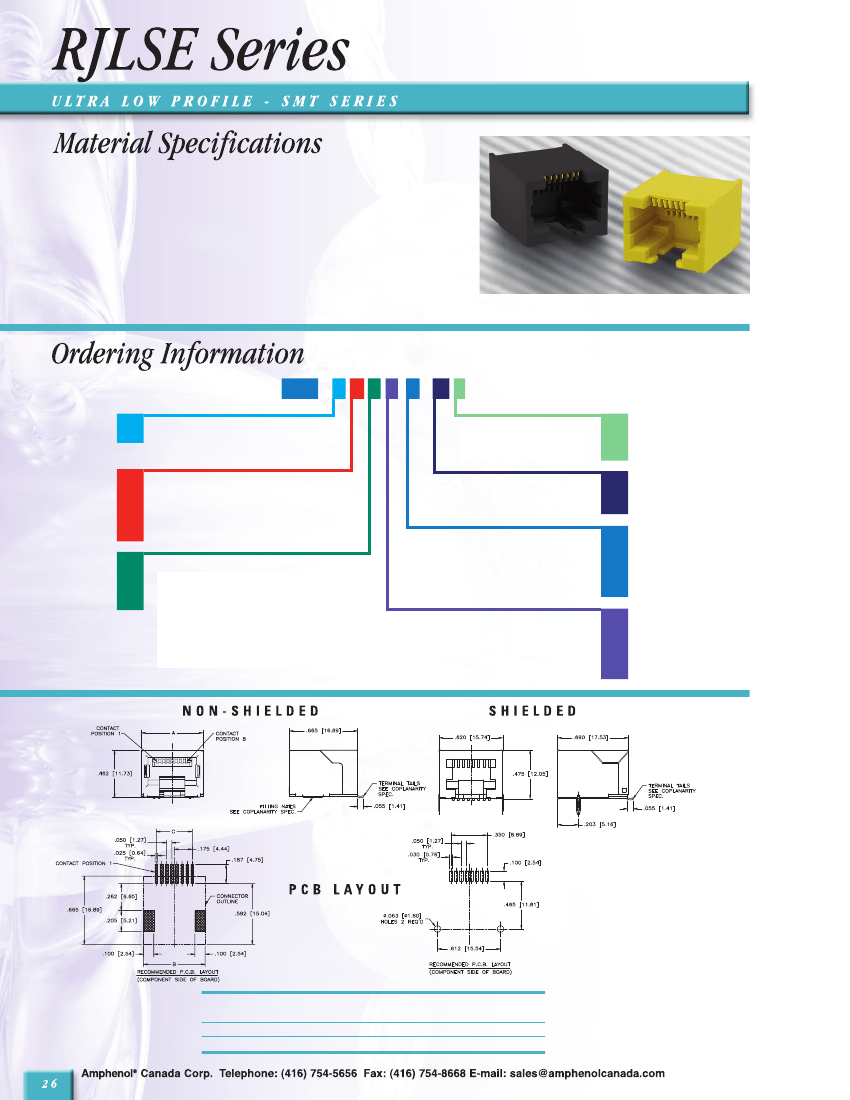

Preview

Download Datasheet

View All

Housing:

Contacts:

Plating:

Shield:

Coplanarity:

High temperature engineering thermoplastic,

flammability rating UL 94V-O

*RoHS compliant

Phosphor bronze

Gold plated on mating surfaces

over 50µ” (1.27 microns) min. nickel underplate.

100µ” (2.54 microns) min. matte tin on contact tails.

Copper alloy, nickel plated

The maximum gap between all terminal tails is .004” (0.10mm).

*Please visit www.amphenolcanada.com (ECO-RoHS section) for further information on RoHS products.

RJLSE

SERIES

4 = RJ45

6 = RJ11

GOLD PLATING

0 = Gold flash

1 = 15 Micro” gold plating

2 = 30 Micro” gold plating

3 = 50 Micro” gold plating

SHIELD OPTIONS

0 = No shield

= No Shield

1 Standard shield

= Standard

special solder bracket

2 No shield, with

Shield with SMT tab

01 T

PACKAGING

Blank = Tray

T = Tape & Reel

T = Tape and packaging

NUMBER OF PORTS

01 = 1 Port

02 = 2 Port

HOUSING OPTIONS

1 = Black housing

2 = Yellow housing

3 = Red housing

4 = Black .74” long housing

NUMBER OF CONTACTS

2 = 2 Contacts

4 = 4 Contacts

6 = 6 Contacts

8 = 8 Contacts

3 = Shield with PCB tail

4 = Shield, SMT tab with top and

side panel tabs

Shield option "3" shown

Number

of positions

Unshielded

.520 [13.21]

.600 [15.24]

Shielded

.540 [13.71]

.620 [15.74]

Shielded

.532 [13.51]

.612 [15.64]

.520 [13.21]

.600 [15.24]

.250 [6.35]

.350 [8.89]
