500C744U6R3DC2D datasheet, PDF

Datasheet> All Categories > Passive components> 500C744U6R3DC2D

500C744U6R3DC2D: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3 V, 27000 uF, STUD MOUNT; CategoryPassive components; File Size588KB，12 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

500C744U6R3DC2D Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3 V, 27000 uF, STUD MOUNT

500C744U6R3DC2D Parametric

Parameter Name	Attribute value
Maximum operating temperature	95 Cel
Minimum operating temperature	-40 Cel
negative deviation	10 %
positive deviation	75 %
Rated DC voltage urdc	6.3 V
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	NOT SPECIFIED
Installation features	STUD MOUNT
Manufacturer Series	500C
capacitance	27000 uF
packaging shape	CYLINDRICAL PACKAGE
Capacitor type	NON SOLID
Terminal shape	BINDING POST
equivalent series resistance	46.9mohm
polarity	POLARIZED
ripple current	4.7A
leakage current	1237.3uA

Preview

Download Datasheet

View All

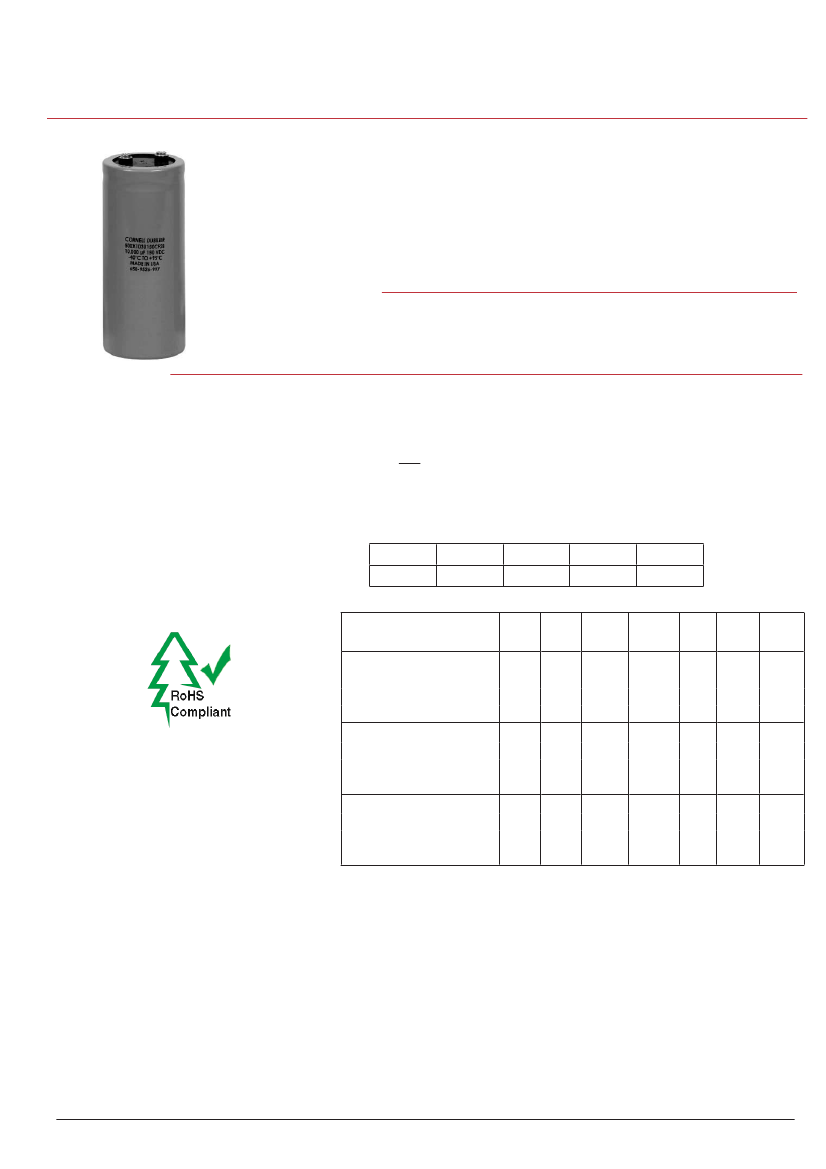

Type 500C

95 °C Long-Life, Screw Terminal, Aluminum Electrolytic

–40 °C to +95 °C, Long Life

Twice the Life!

Type 500C capacitors are designed for mainframe computers and other long life

UPS and power supply ﬁlter applications. They deliver nearly as much capacitance

as the Type DCMC capacitors, but with two times the life expectancy. They are an

excellent choice for high ripple applications. The extended cathode foil of the 500C

assures cool operation with heat ﬂow from the capacitor element to the can.

Highlights

•

Long-life, High-Capacitance

Better for Power-supply and UPS systems

Thermal-Pak™ extended cathode construction

–40 °C to +95 °C

6.3 to 500 Vdc

100 µF to 2.6 F

<200 Vdc: –10 +75%; ≥200 Vdc: –10% +50%

≤3√CV µA at 5 minutes; 4 mA max.

20 °C multiple of 25 °C Z ≤20 for 6.3–10 V, 8 for 16–50 V,

4 for 63–100 V, 3 for 150 V and up.

Ambient Temperature

45 °C

2.00

55 °C

1.82

65 °C

1.59

75 °C

1.33

85 °C

1.00

10 kHz

50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz

1 3/8” & 1 3/4” Diameters

6.3 to 160 V

200 to 350 V

400 to 500 Vx

Complies with the EU Directive

2002/95/EC requirement

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls (PBB)

and PolyBrominated Diphenyl

Ethers (PBDE).

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Cold Impedence:

Ripple Current Multipliers:

Frequency

& up

1.10

1.44

1.45

1.07

1.35

1.40

1.04

1.20

1.32

0.91

0.76

0.93

0.78

0.77

0.95

0.84

0.79

0.93

0.81

0.95

0.83

0.82

0.97

0.88

0.84

1.00

1.06

1.24

1.04

1.20

1.22

1.03

1.12

1.18

1.08

1.36

1.37

1.06

1.29

1.33

1.04

1.17

1.26

1.10

1.43

1.44

1.06

1.34

1.39

1.04

1.20

1.31

2” & 2 1/2” Diameters

6.3 to 160 V

200 to 350 V

400 to 500 V

3” & 3 1/2” Diameters

6.3 to 160 V

200 to 350 V

400 to 500 V

EIA Ripple Life:

Life Test:

Shelf Life:

Vibration:

5,000 h at full load @ +85 °C per EIA IS-749

∆Capacitance

±20%

ESR 200% of limit

DCL 100% of limit

5,000 h at 95 °C and rated voltage

∆Capacitance

±20%

ESR 200% of limit

DCL 100% of limit

500 h @ +95 °C, Capacitance, ESR and DCL, initial

requirements.

10 to 55 Hz, 0.06” and 10 g max, 1.5 h ea. of 2 axis

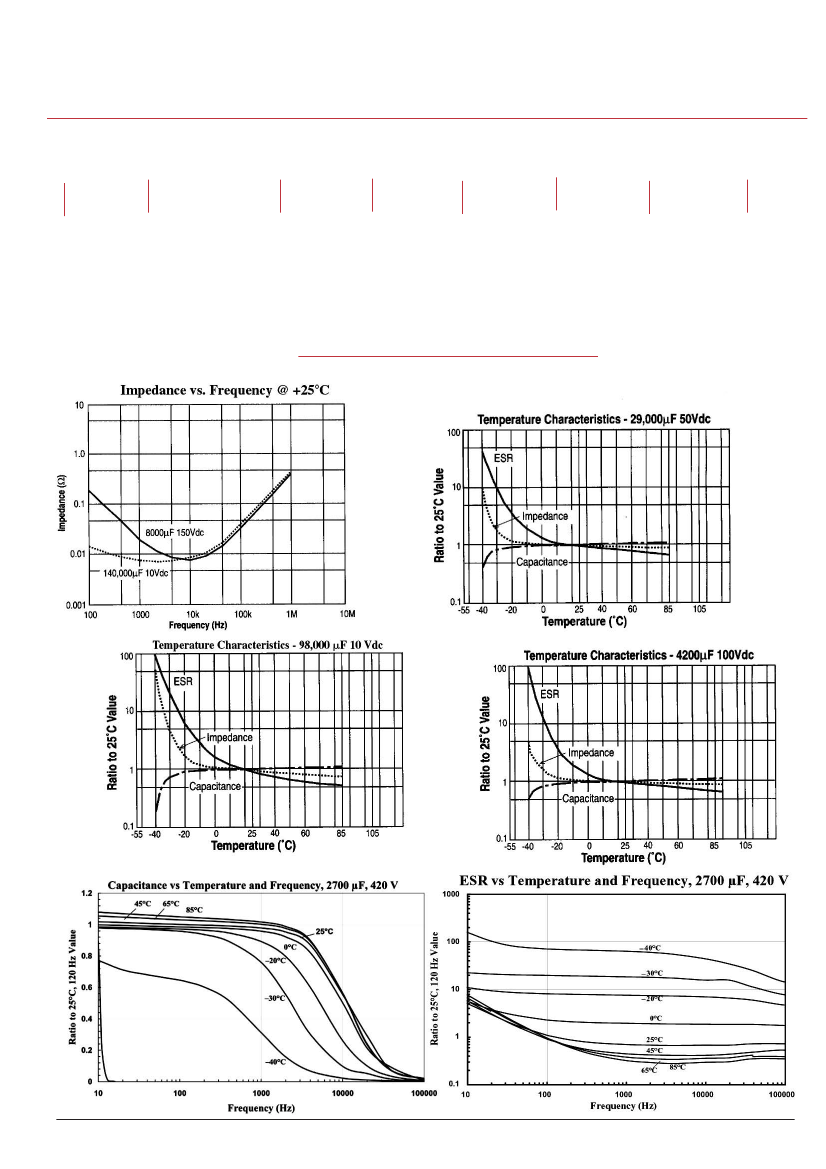

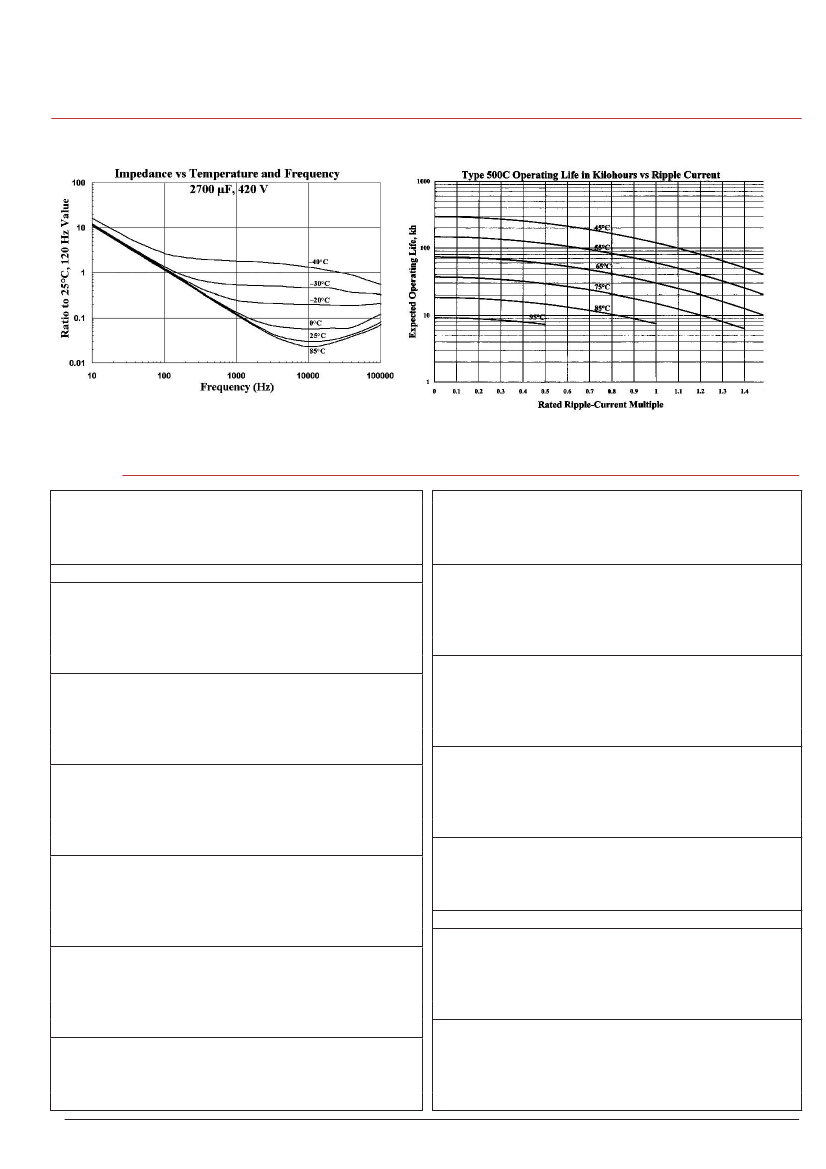

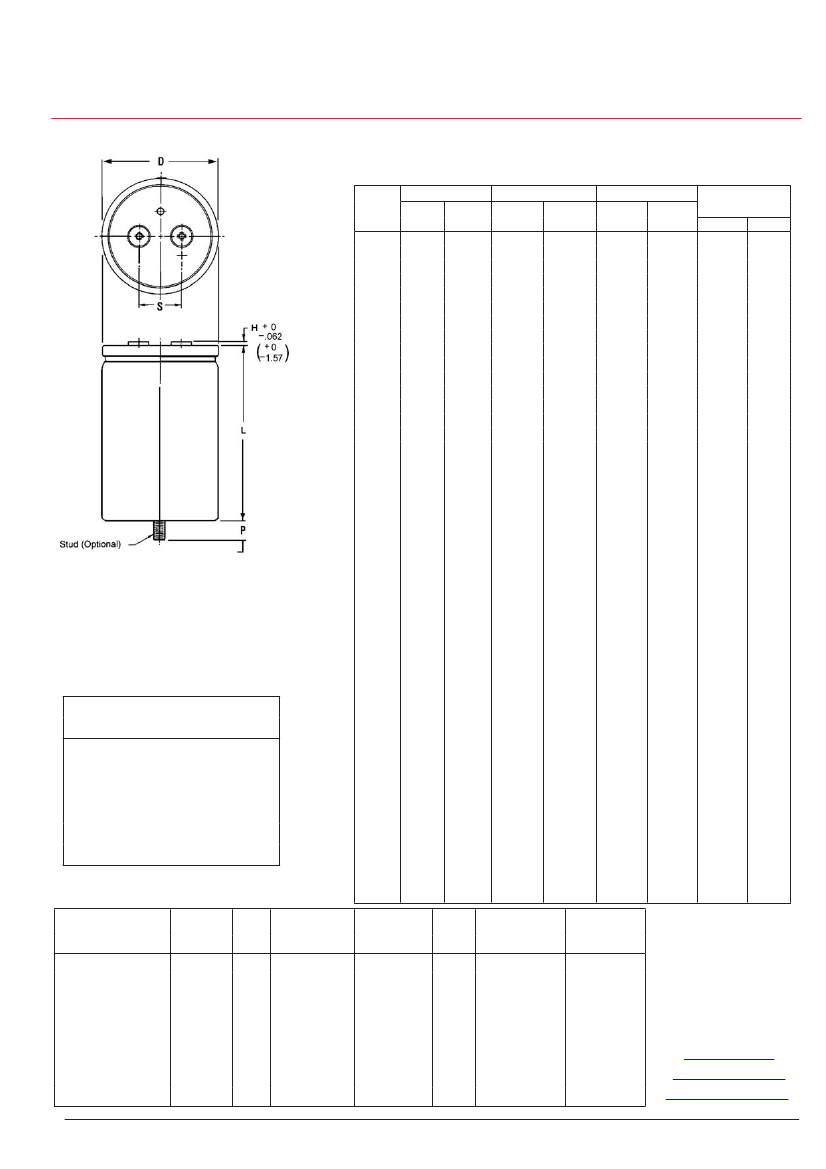

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
