BZG04-36 datasheet, PDF - EEWORLD Datasheet

BZG04-36: DescriptionTrans Voltage Suppressor Diode, 36V V(RWM), Unidirectional,; CategoryDiscrete semiconductor diode; File Size148KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

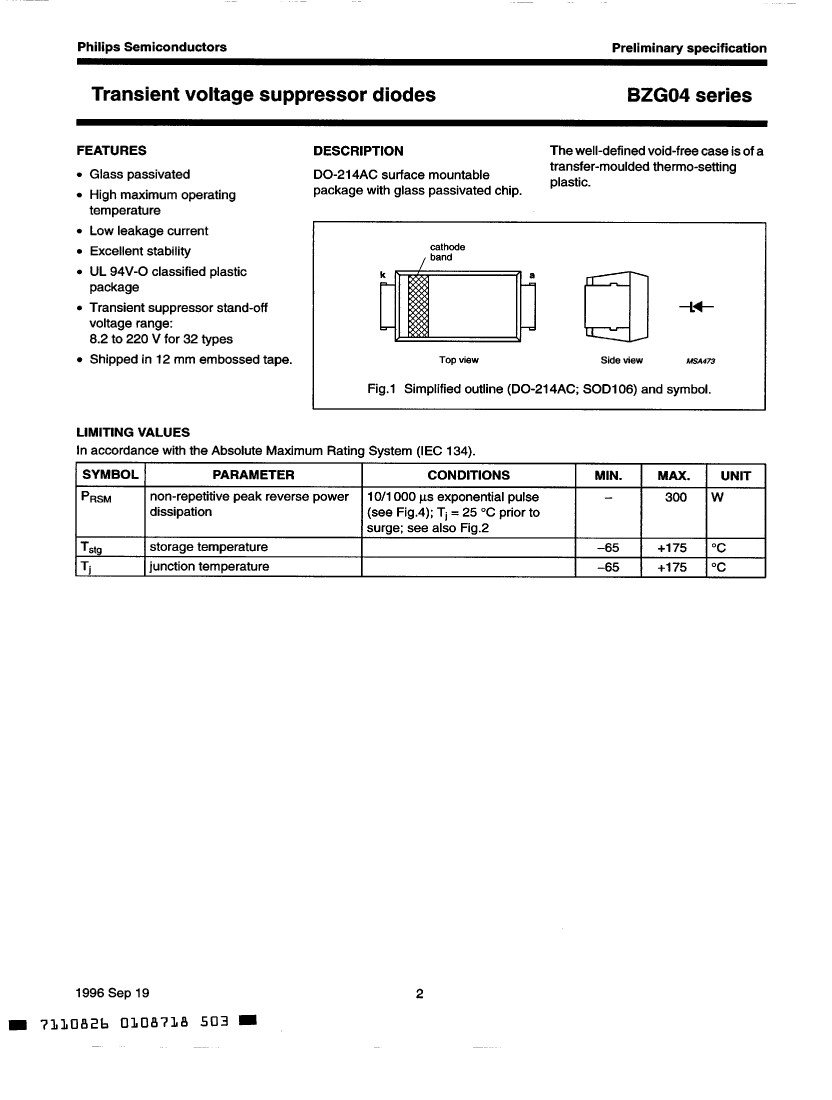

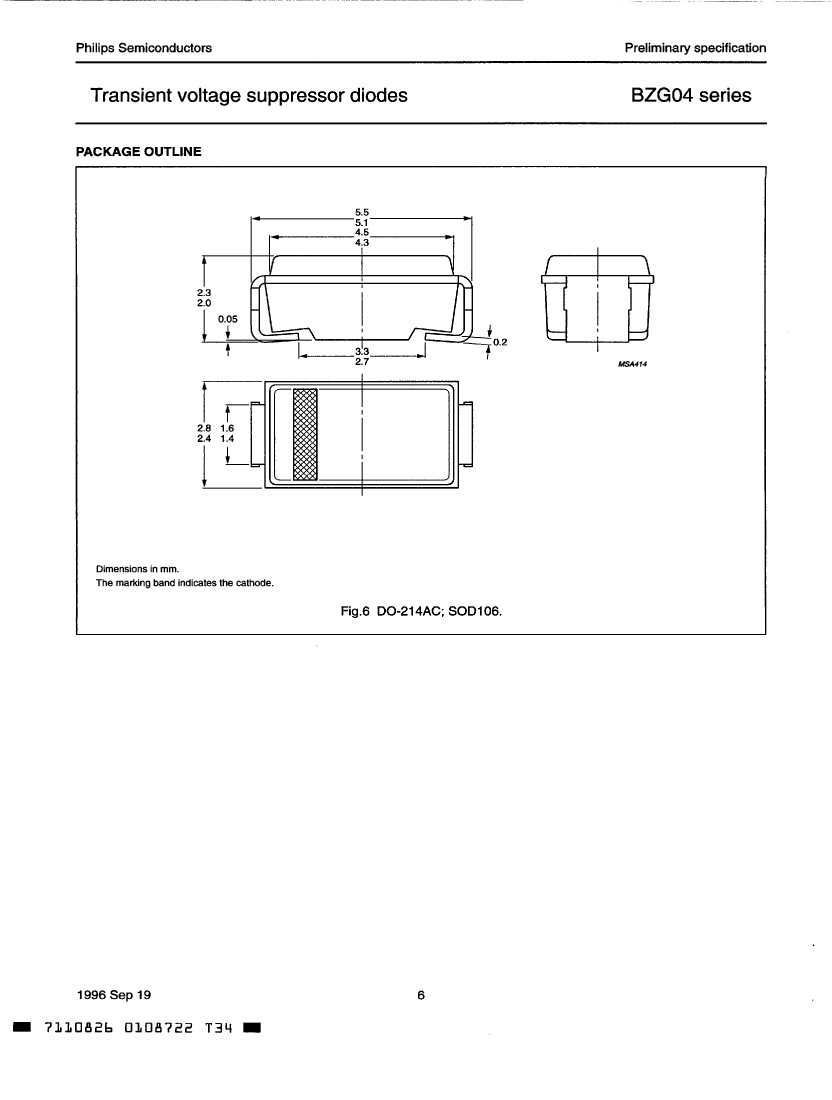

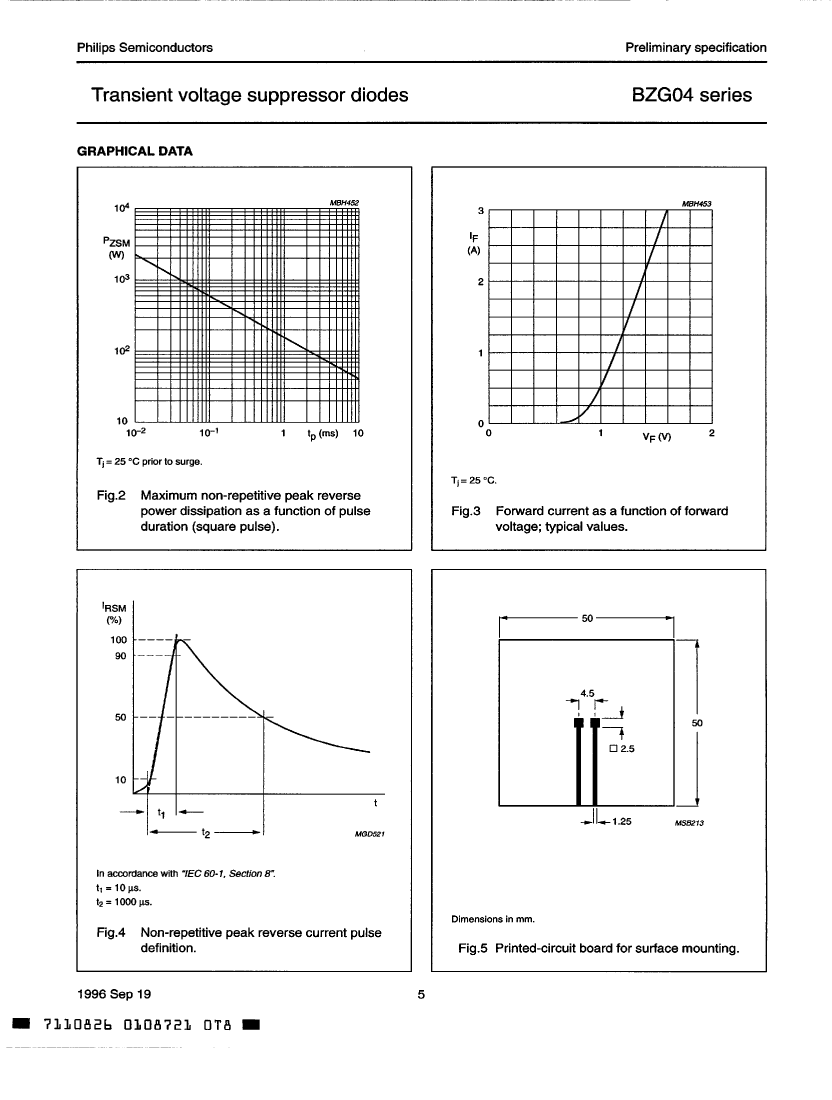

BZG04-36 Overview

Trans Voltage Suppressor Diode, 36V V(RWM), Unidirectional,

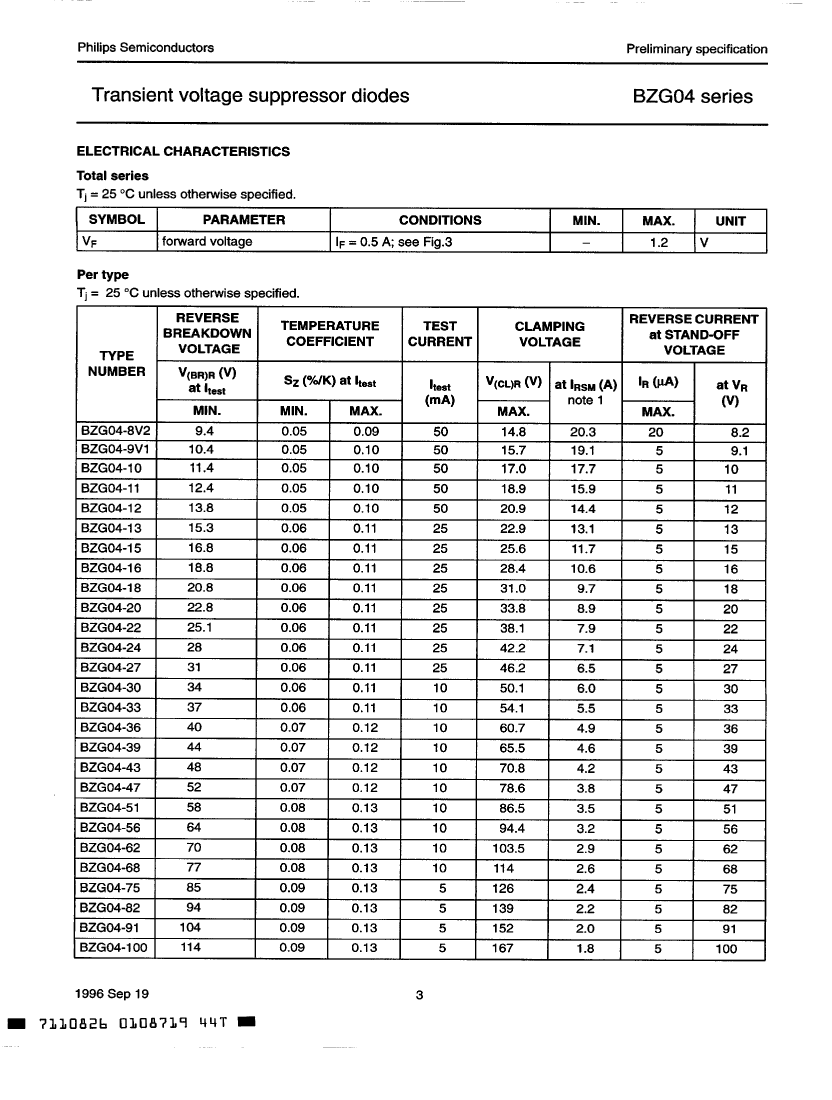

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	not_compliant
Maximum clamping voltage	60.7 V
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-609 code	e0
polarity	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	36 V
surface mount	YES
Terminal surface	Tin/Lead (Sn80Pb20)
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

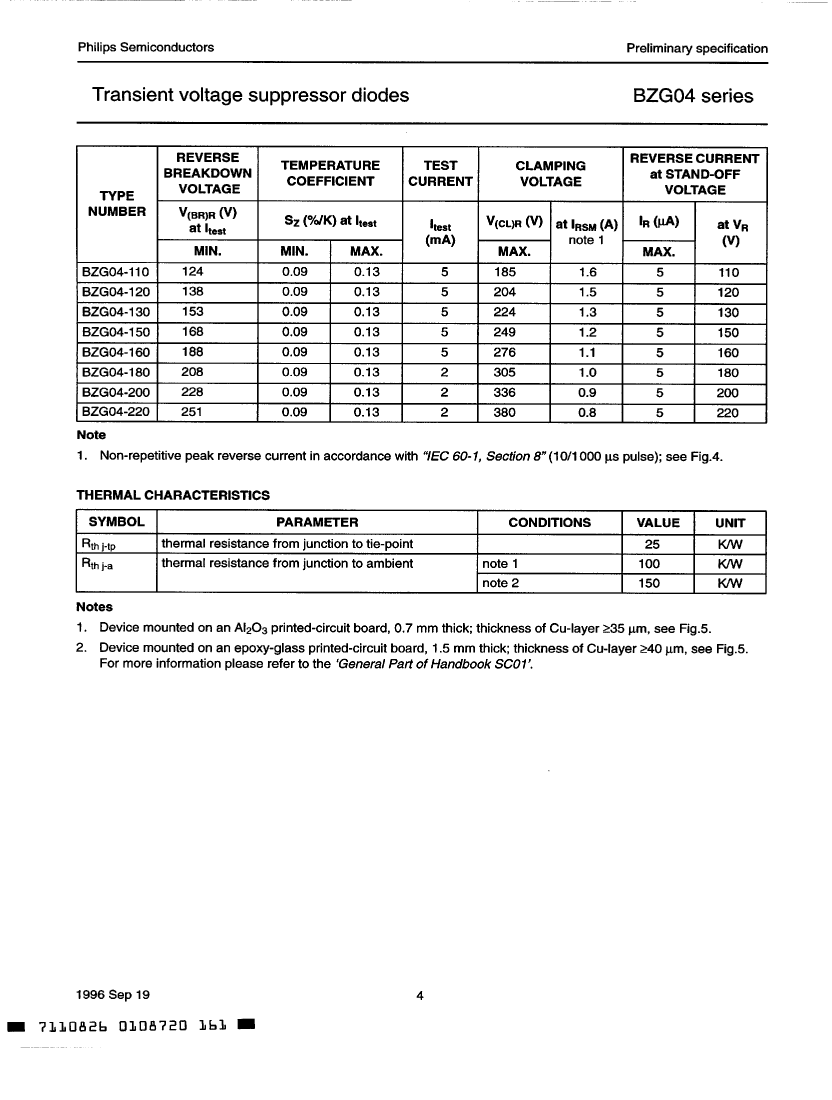

	BZG04-36	BZG04-120	BZG04-9V1	BZG04-150	BZG04-10
Description	Trans Voltage Suppressor Diode, 36V V(RWM), Unidirectional,	Trans Voltage Suppressor Diode, 120V V(RWM), Unidirectional,	Trans Voltage Suppressor Diode, 9.1V V(RWM), Unidirectional,	Trans Voltage Suppressor Diode, 150V V(RWM), Unidirectional,	Trans Voltage Suppressor Diode, 10V V(RWM), Unidirectional,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum clamping voltage	60.7 V	204 V	15.7 V	249 V	17 V
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-609 code	e0	e0	e0	e0	e0
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	36 V	120 V	9.1 V	150 V	10 V
surface mount	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn80Pb20)
Base Number Matches	1	1	1	1	1
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-	-
