89039 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 89039

89039: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size68KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89039 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	89039	-	-	View	Buy Now

89039 Overview

Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT

89039 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	POLARIZED, MAX CONTACTS (SERIES)=8, MAX ROWS (SERIES)=2
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	89039
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

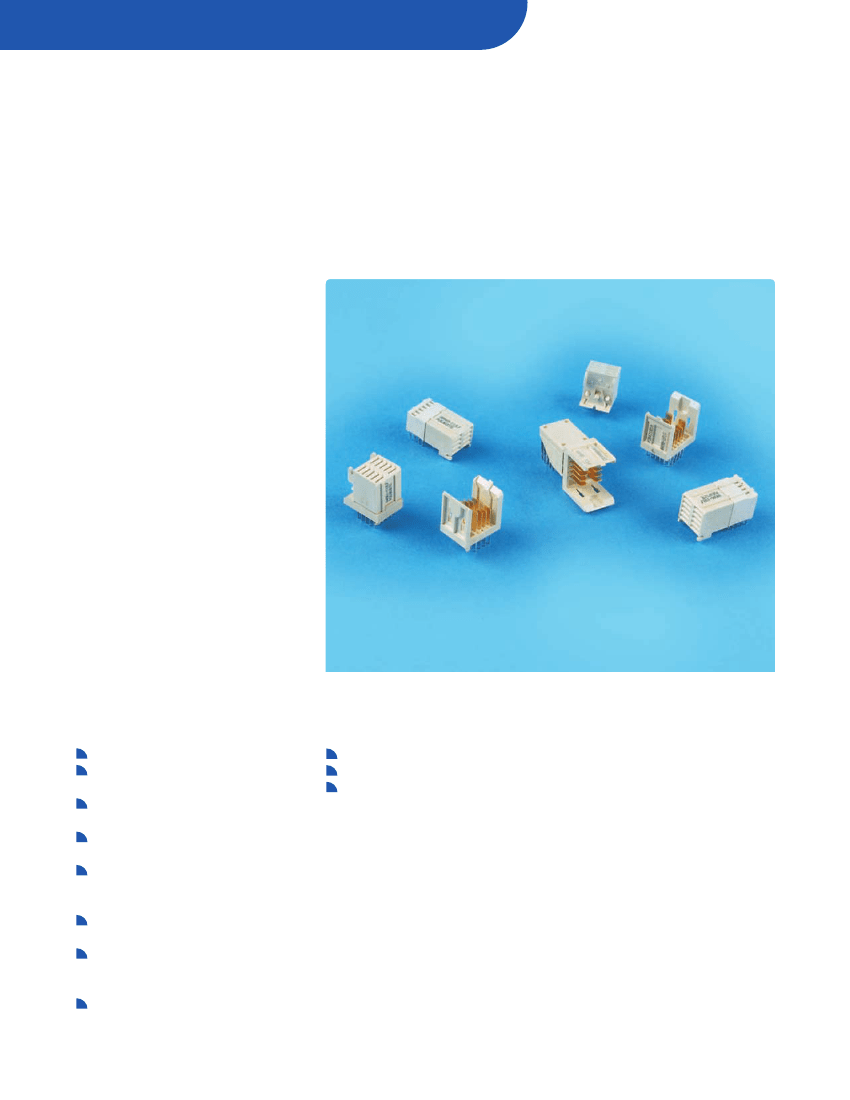

METRAL

POWER CONNECTORS

METRAL

POWER CONNECTORS

Part of the Metral

Backpanel Connector Family

DESCRIPTION

The Power Connectors are functional

building blocks in the Metral

modular

backplane interconnect system. All

connectors are designed in accordance

with the IEC 61076-4-104 standard. The

comprehensive connector range in the

Metral

family supports power solutions in

combination with other functions like signal

and coax. Each power module provides 8

or 10 individual contacts, and each contact

designed to carry 3 amps current. The

available termination options support press-

fit or solder-to-board application. Other

options provide capability for rear plug-up

or staggered pin lengths to support

sequential mating. Easy-to-use and

cost-effective application equipment is

available for press-fit connectors to keep

assembly times, as well as production

costs, to a minimum.

FEATURES & BENEFITS

3 Amps per individual power contact

Designed in accordance with IEC

61076-4-104

Modular design offers system design

flexibility

Stackable end-to-end with other Metral

modules without loss of positions

12 mm wide power modules are form

and fit interchangeable with signal

modules on the same footprint

“Eye-of-Needle” compliant section

provides gas-tight, press-fit termination

First-Make-Last-Break options that

enable sequential mating are available in

the vertical header

RoHS-compliant options aid compliance

with environmental regulations

TARGET MARKETS / APPLICATIONS

Communication

Instrumentation

Medical

89039 Related Products

	89039	89096
Description	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle, ROHS COMPLIANT
Maker	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown
Other features	POLARIZED, MAX CONTACTS (SERIES)=8, MAX ROWS (SERIES)=2	POLARIZED, MAX CONTACTS (SERIES)=10, MAX ROWS (SERIES)=2
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	89039	89096
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	SOLDER	PRESS FIT
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
