DWG NO.
SH
CUSTOMER
CUSTOMER P/N
CUST. REV
1-0583
DASH
NUMBER
-1
-2
-3
-4
"A" BOARD
THICKNESS
.060 - .064
.028 - .033
.084
.120
1.003
"A"
.713
1
REVISIONS
DESCRIPTIONS
DATE
2/22/10
APPROVED
T. KOHLER
DATA CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO EMERSON CONNECTIVITY SOLUTIONS AND SHALL NOT
REV
BE DISCLOSED, COPIED OR USED FOR PROCUMENT OR
MANUFACTURE WITHOUT EXPRESS WRITTEN PERMISSION
52157
F ECO
SCALE 1/1
-1 SHOWN
.412
.500
.250
.500-28UNEF-2A
.562 HEX NUT
.430
.021
.510
.505
.050
.050
.340
SCALE 1/1
.447
.443
RECOMMENDED
PANEL CUT-OUT
RECOMMENDED
PCB LAYOUT
INTERPRET DRAWING PER
TOL: UNLESS SPECIFIED.
MIL-STD-100.
.02
DIMENSIONS ARE IN INCHES
.XX
AND INCLUDE FINISH
.XXX
.010
THICKNESS
ANGLE
1
UNLESS OTHERWISE SPECIFIED.
DRN
Connectivity Solutions
TM
3.
2.
MAXIMUM PANEL THICKNESS .179
FINISH:
BODY: TFS-1B (GOLD, 2G)
CONTACT: TFS-1B (GOLD, 5G)
HARDWARE: TFS-1A (NICKEL)
SCALE 2/1
EMERSON
Network Power
299 Johnson Ave. Ste. 100
Waseca, MN 56093
1-800-247-8256
MATERIAL:
TITLE:
C. WALLACE
4/29/11
N/A
BLANK LENGTH
(REF. ONLY)
CHK
T. KOHLER
5/1/11
QUALITY
UCBBJE20
FINISH:
SIZE
CAGE CODE
DRAWING NO.
REV.
1.
75

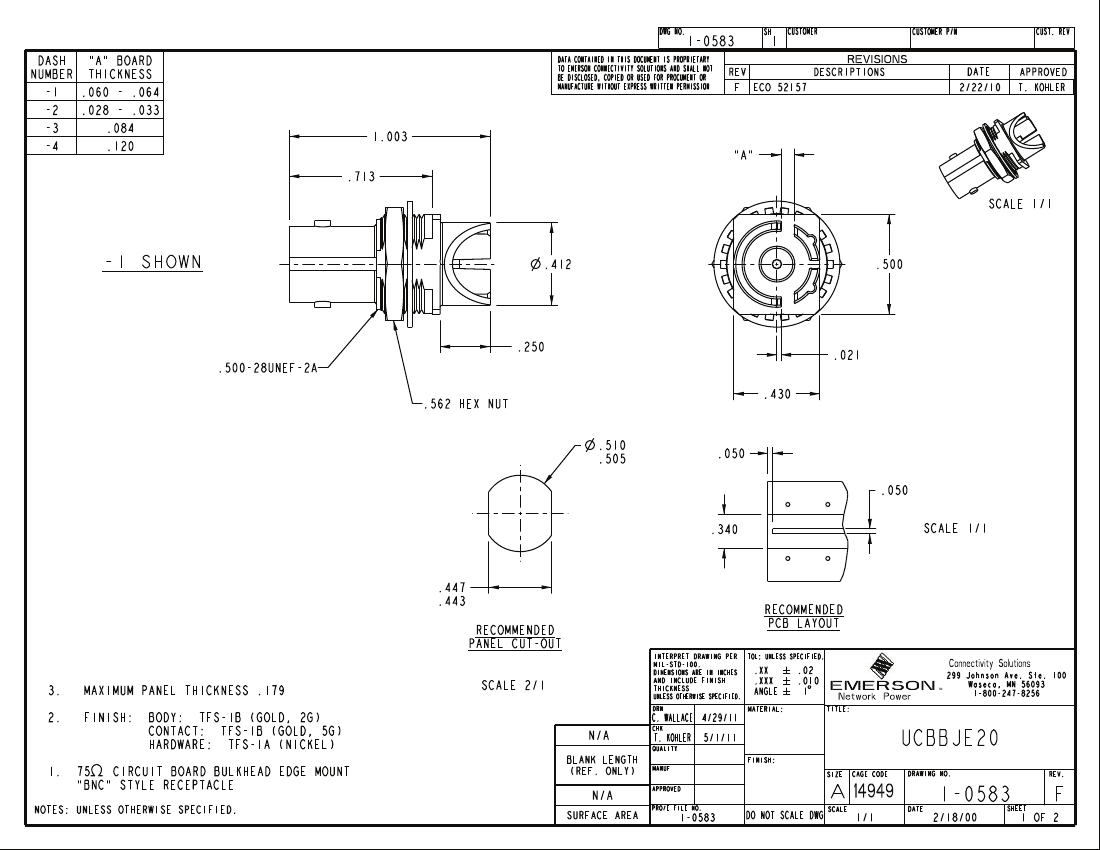

CIRCUIT BOARD BULKHEAD EDGE MOUNT
"BNC" STYLE RECEPTACLE
MANUF
N/A
SURFACE AREA
APPROVED
PRO/E FILE NO.
A 14949
DO NOT SCALE DWG
SCALE
DATE
1-0583
SHEET
F
1 OF 2
NOTES: UNLESS OTHERWISE SPECIFIED.
1-0583
1/1
2/18/00
