SLP9S-2

Description
Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator
CategoryThe connector    The connector
File Size345KB，6 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

SLP9S-2 Overview

Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator

SLP9S-2 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, TOP ENTRY, ZIF
body width0.157 inch
subject depth0.217 inch
body length0.685 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability20 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYETHLENE TEREPHTHALATE
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.049 inch
Mixed contactsNO
Installation option 1FCC RETNN DVC
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.0066 mm
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.106 inch
Terminal pitch1.25 mm
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0
Base Number Matches1

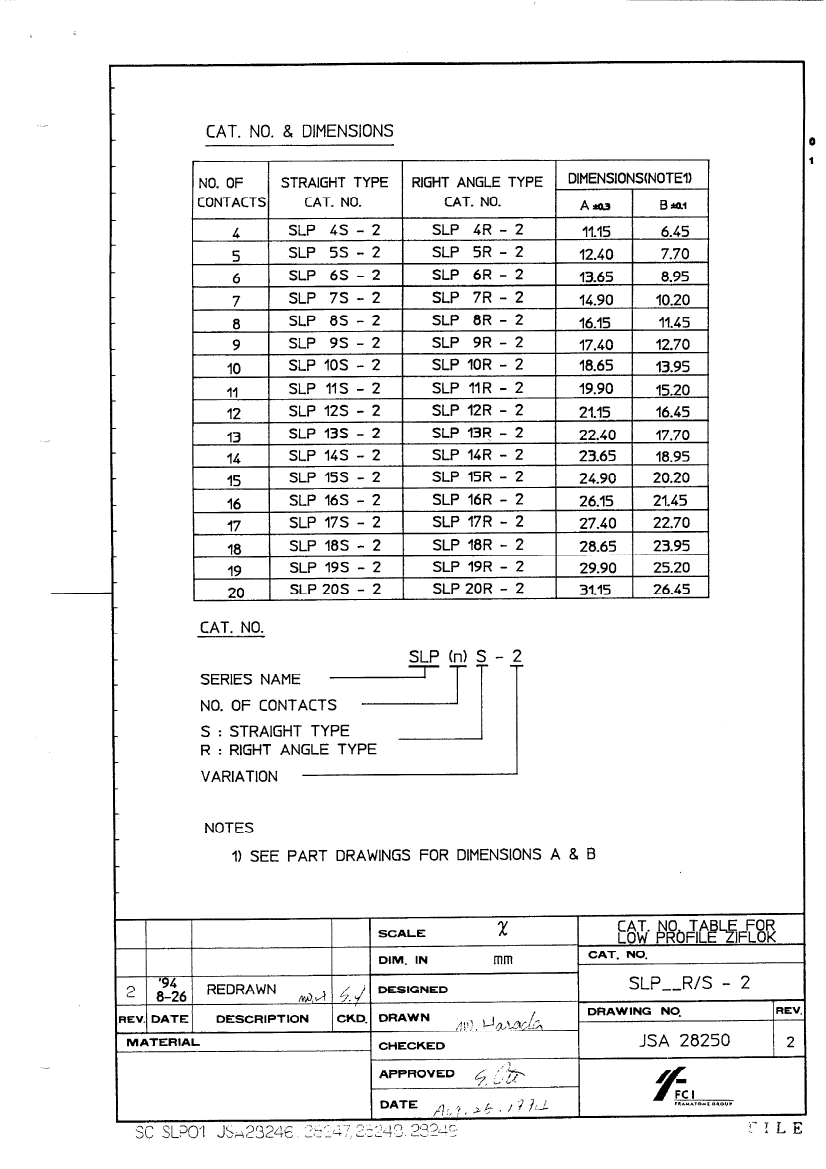

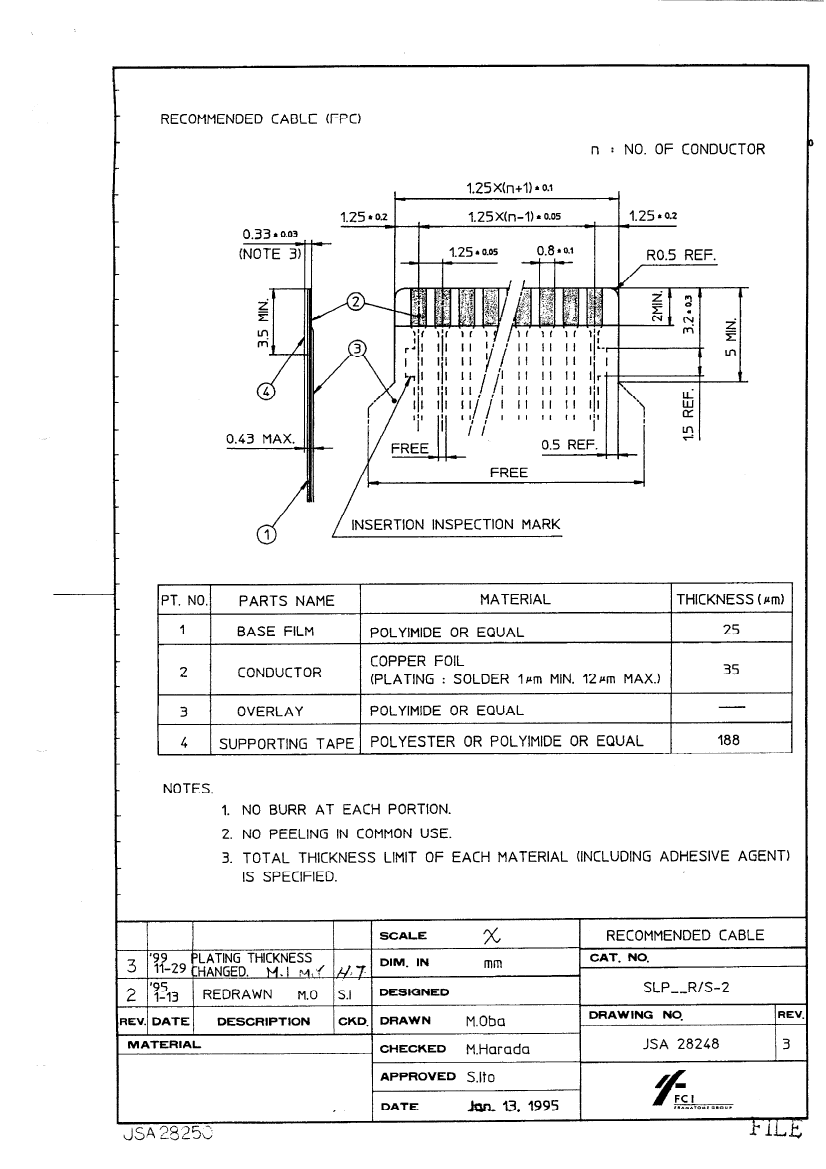

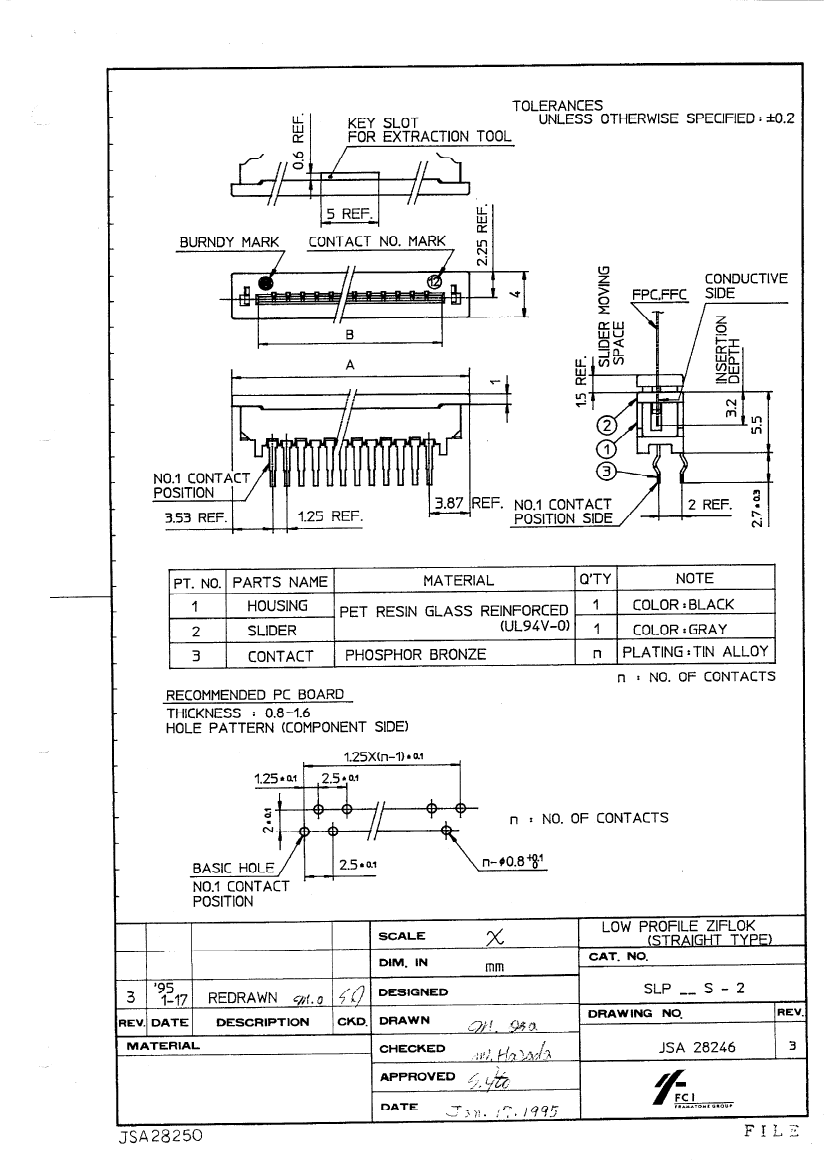

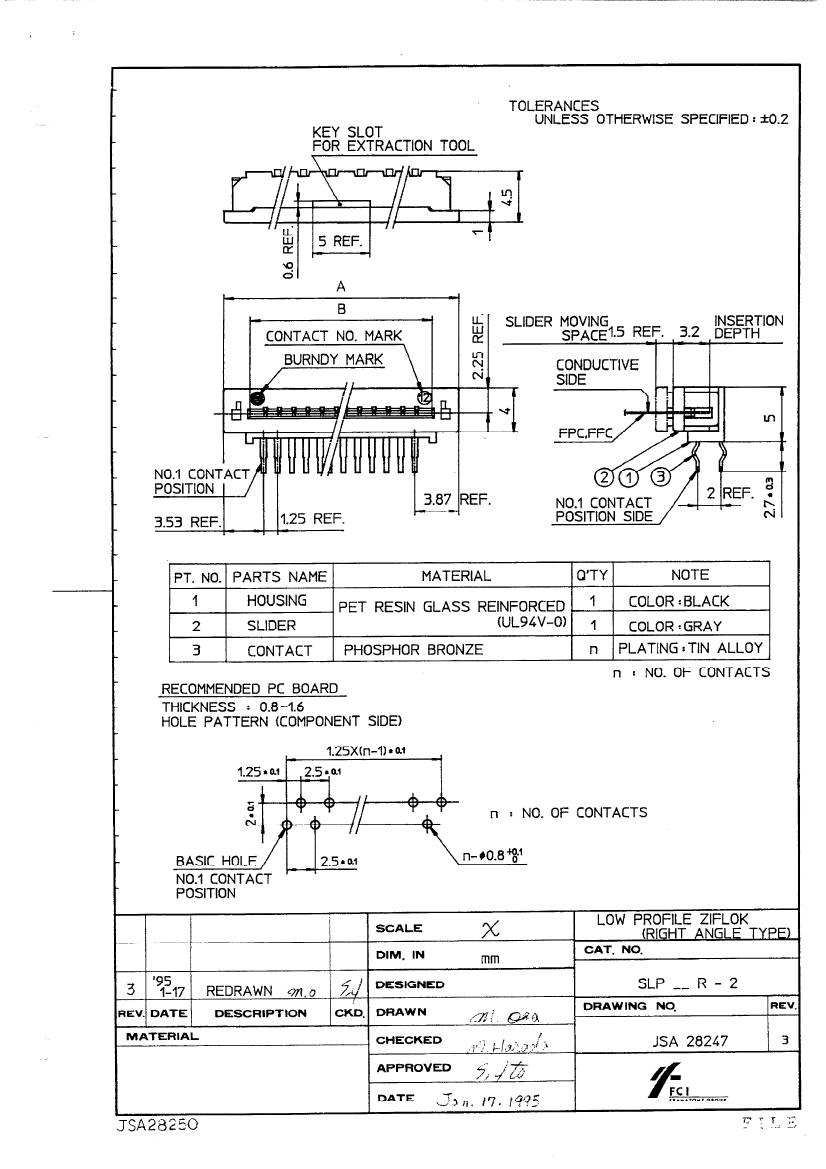

Preview

Download Datasheet

SLP9S-2 Related Products

SLP9S-2 SLP19R-2 SLP4S-2 SLP5R-2 SLP5S-2 SLP6R-2 SLP6S-2 SLP7S-2 SLP8R-2 SLP8S-2
Description Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Black Insulator Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal, Locking, Black Insulator
Maker Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, TOP ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, SIDE ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, TOP ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, SIDE ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, TOP ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, SIDE ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, TOP ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, TOP ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, SIDE ENTRY, ZIF ZIFLOK, STAGGERED CONFIGURATION, LOW PROFILE, TOP ENTRY, ZIF
body width 0.157 inch 0.197 inch 0.157 inch 0.197 inch 0.157 inch 0.197 inch 0.157 inch 0.157 inch 0.197 inch 0.157 inch
subject depth 0.217 inch 0.177 inch 0.217 inch 0.177 inch 0.217 inch 0.177 inch 0.217 inch 0.217 inch 0.177 inch 0.217 inch
body length 0.685 inch 1.177 inch 0.439 inch 0.488 inch 0.488 inch 0.537 inch 0.537 inch 0.587 inch 0.636 inch 0.636 inch
Connector type FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR
Contact to complete cooperation SN SN SN SN SN SN SN SN SN SN ON NI
Contact completed and terminated TIN TIN TIN TIN TIN TIN TIN TIN TIN TIN
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ
DIN compliance NO NO NO NO NO NO NO NO NO NO
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V
Durability 20 Cycles 20 Cycles 20 Cycles 20 Cycles 20 Cycles 20 Cycles 20 Cycles 20 Cycles 20 Cycles 20 Cycles
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
maximum insertion force ZIF N ZIF N ZIF N ZIF N ZIF N ZIF N ZIF N ZIF N ZIF N ZIF N
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE GLASS FILLED POLYETHLENE TEREPHTHALATE
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3 e3
MIL compliance NO NO NO NO NO NO NO NO NO NO
Plug contact pitch 0.049 inch 0.049 inch 0.049 inch 0.049 inch 0.049 inch 0.049 inch 0.049 inch 0.049 inch 0.049 inch 0.049 inch
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation option 1 FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC LOCKING
Installation method STRAIGHT RIGHT ANGLE STRAIGHT RIGHT ANGLE STRAIGHT RIGHT ANGLE STRAIGHT STRAIGHT RIGHT ANGLE STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
PCB row number 2 2 2 2 2 2 2 2 2 2
Number of rows loaded 1 1 1 1 1 1 1 1 1 1
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED
PCB contact row spacing 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Rated current (signal) 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.106 inch 0.106 inch 0.106 inch 0.106 inch 0.106 inch 0.106 inch 0.106 inch 0.106 inch 0.106 inch 0.106 inch
Terminal pitch 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm 1.25 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 9 19 4 5 5 6 6 7 8 8
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1 1 1 1 1
Contact style BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE -
