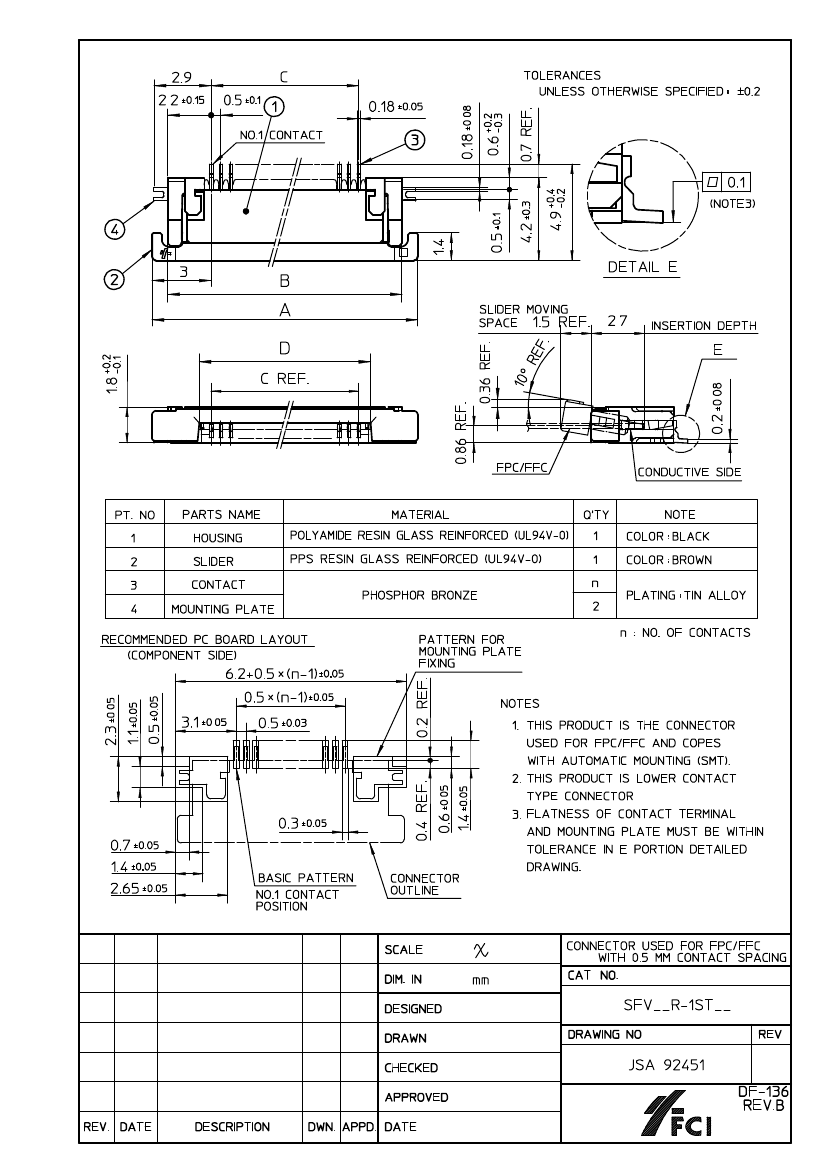

Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

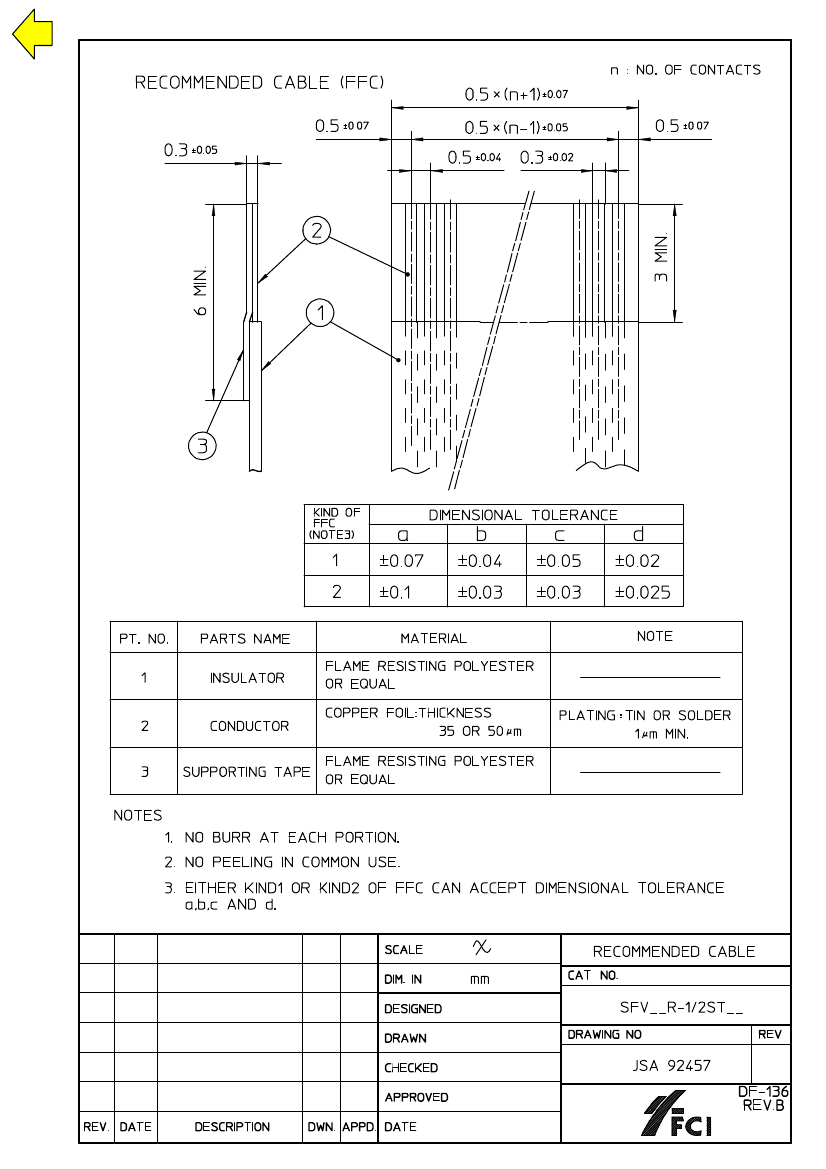

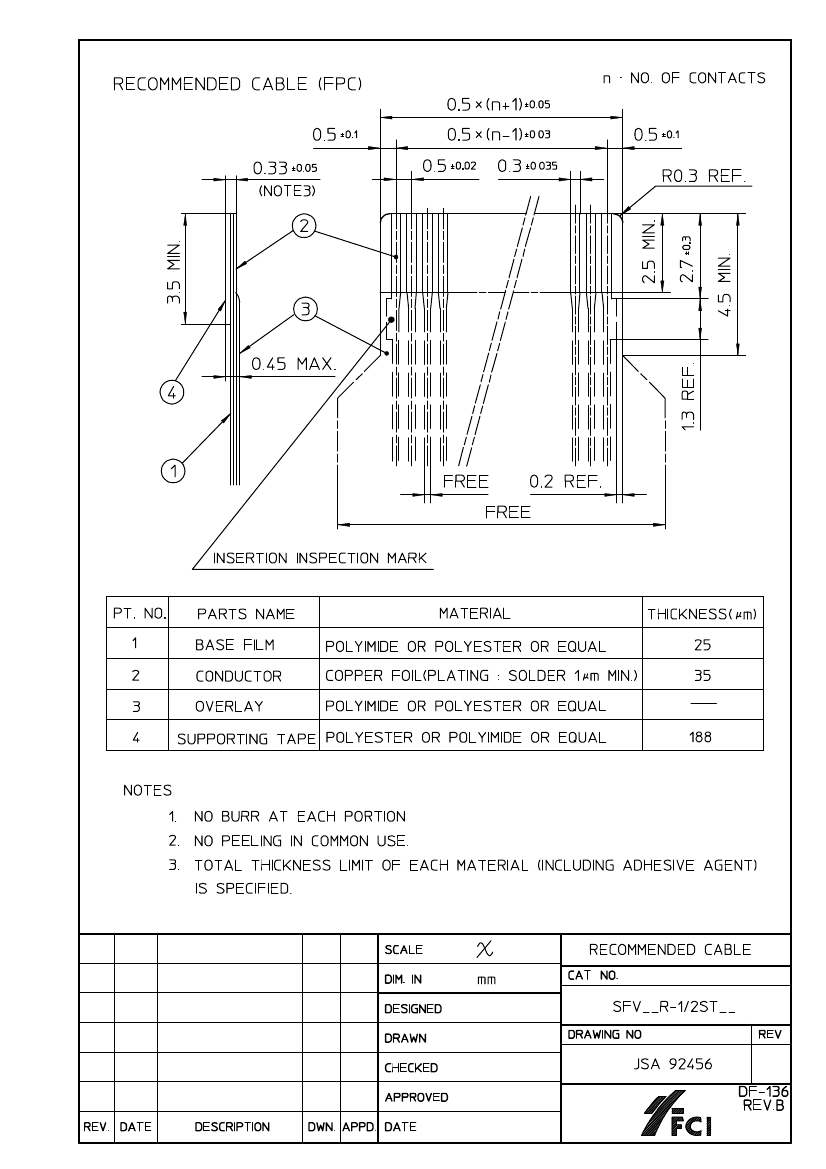

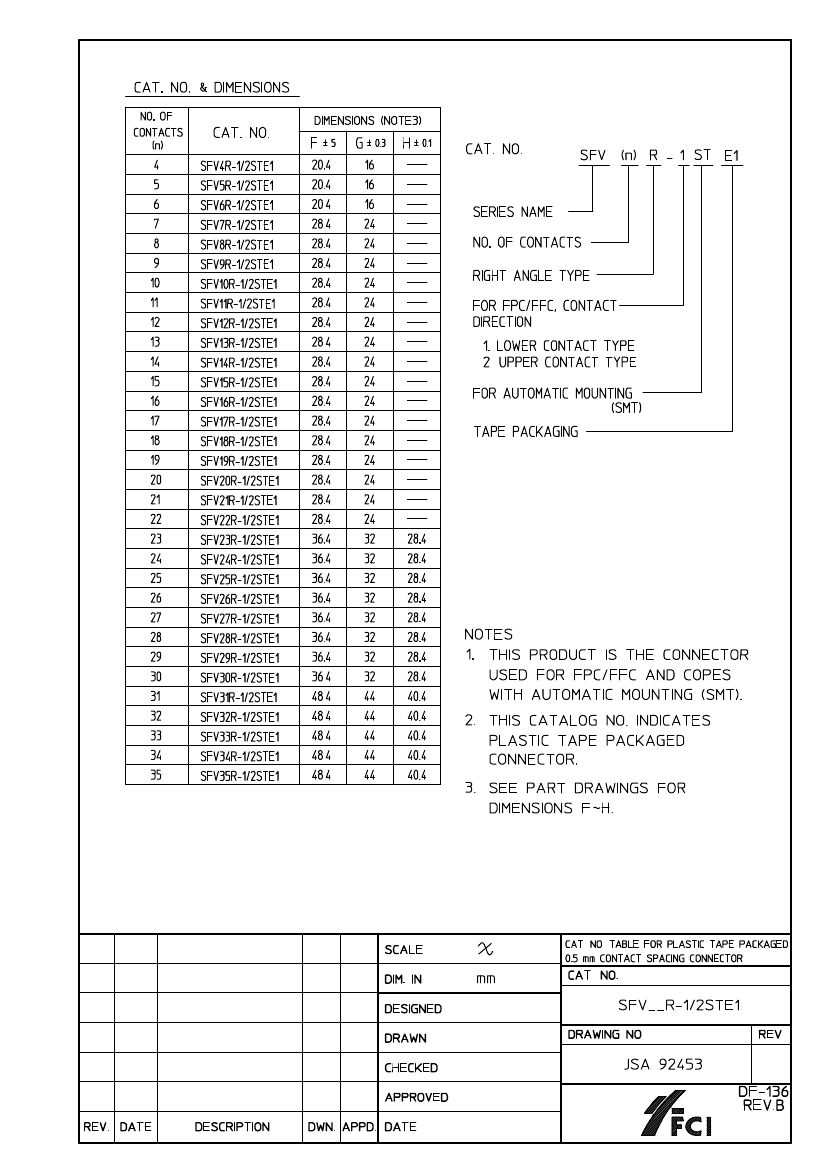

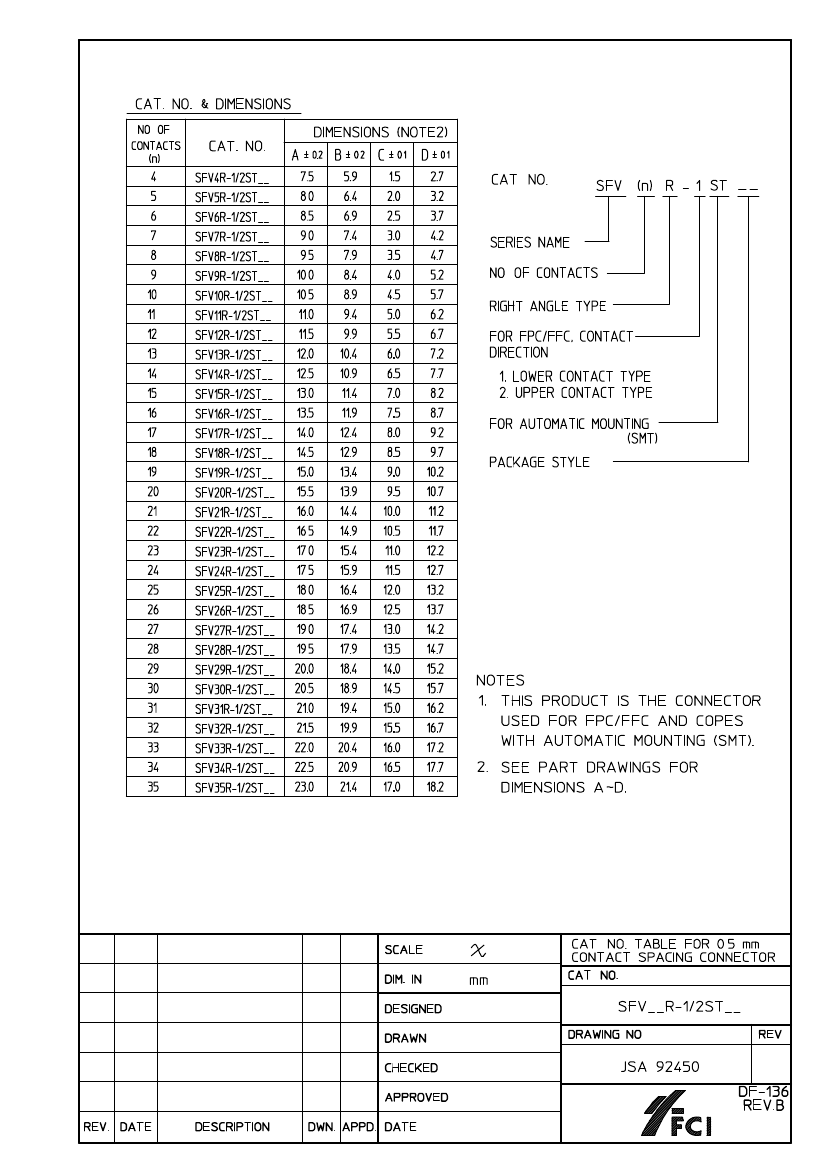

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Amphenol |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | SIDE ENTRY |
| Board mount options | SOLDER HOLDING FLANGE |
| body width | 0.071 inch |
| subject depth | 0.165 inch |
| body length | 0.453 inch |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | TIN |
| Contact completed and terminated | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 20 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | ZIF N |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYAMIDE |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Plug contact pitch | 0.02 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 12 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | ZIF N |
| Base Number Matches | 1 |
| SFV12R-2STE1 | SFV12R-1STE1 | SFV13R-1STE1 | SFV14R-2STE1 | SFV15R-1STE1 | SFV15R-2STE1 | SFV16R-1STE1 | SFV17R-2STE1 | SFV18R-1STE1 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | SIDE ENTRY | SIDE ENTRY | SIDE ENTRY | SIDE ENTRY | SIDE ENTRY | SIDE ENTRY | SIDE ENTRY | SIDE ENTRY | SIDE ENTRY |
| Board mount options | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE | SOLDER HOLDING FLANGE |
| body width | 0.071 inch | 0.071 inch | 0.071 inch | 0.071 inch | 0.071 inch | 0.071 inch | 0.071 inch | 0.071 inch | 0.071 inch |
| subject depth | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch |
| body length | 0.453 inch | 0.453 inch | 0.472 inch | 0.492 inch | 0.512 inch | 0.512 inch | 0.531 inch | 0.551 inch | 0.571 inch |
| Connector type | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR |
| Contact to complete cooperation | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN |
| Contact completed and terminated | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Durability | 20 Cycles | 20 Cycles | 20 Cycles | 20 Cycles | 20 Cycles | 20 Cycles | 20 Cycles | 20 Cycles | 20 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE | GLASS FILLED POLYAMIDE |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 12 | 12 | 13 | 14 | 15 | 15 | 16 | 17 | 18 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N | ZIF N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | - | - | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 |
