Engine Compartment Connectors
Component-to-wire connectors
DCS-1

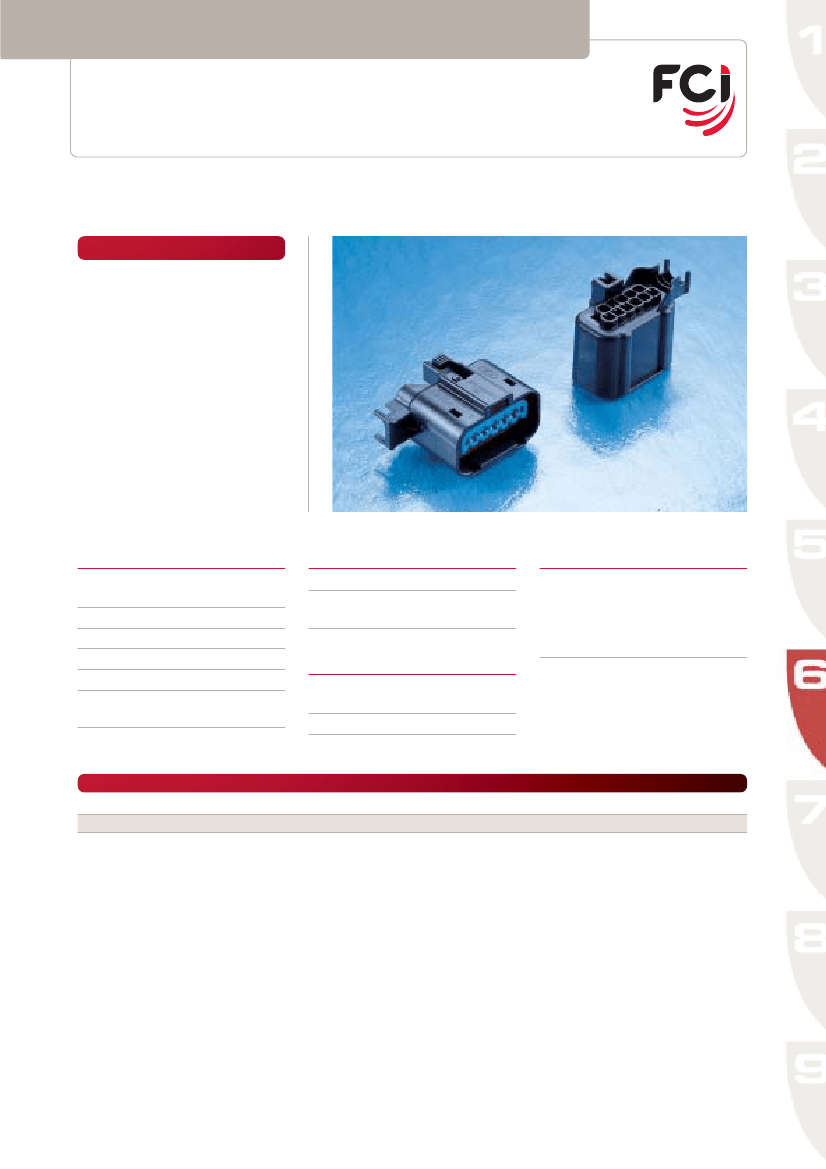

6/11 way sealed female housings for 2.8 mm terminals
Features
•
6-11 position housings available
•
Double row 5 x 5 mm staggered
•
•
•
pitch
Waterproof application with single
wire seal
Circumferential interface seal
Additional terminal locking device
pre-assembled on front part of the
housing
Plastic locking feature
Mechanical polarization
Cable clamp device
•
•
•
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
Connector compatibility
•
Usable terminals:
- DCS-1 2.8 mm female terminals
(standard version)
- DCS-1 2.8 mm female terminals
(power version)
•
Circumferential interface seal:
> 80 N
< 20 N
< 150 N
IP 67
Silicone
•
Contact retention force:
•
Contact insertion force:
•
Connector mating force:
•
Sealing protection:
•
Acceptable wire range:
from 0.35 to 1.5 mm
2
Tooling
•
Front device removal tool:
Consult us
•
Terminal removal tool:
Consult us
Part Numbers
6 041 11 11
6 041 11 01
No. of position
6 (11)
11
Terminal size
2.8 mm
2.8 mm
Type
5 cavities blocked
Colour
Black
Black
6.50
Engine Compartment Connectors
Component-to-wire connectors
DCS-1
6/11 way sealed female housings for 2.8 mm terminals

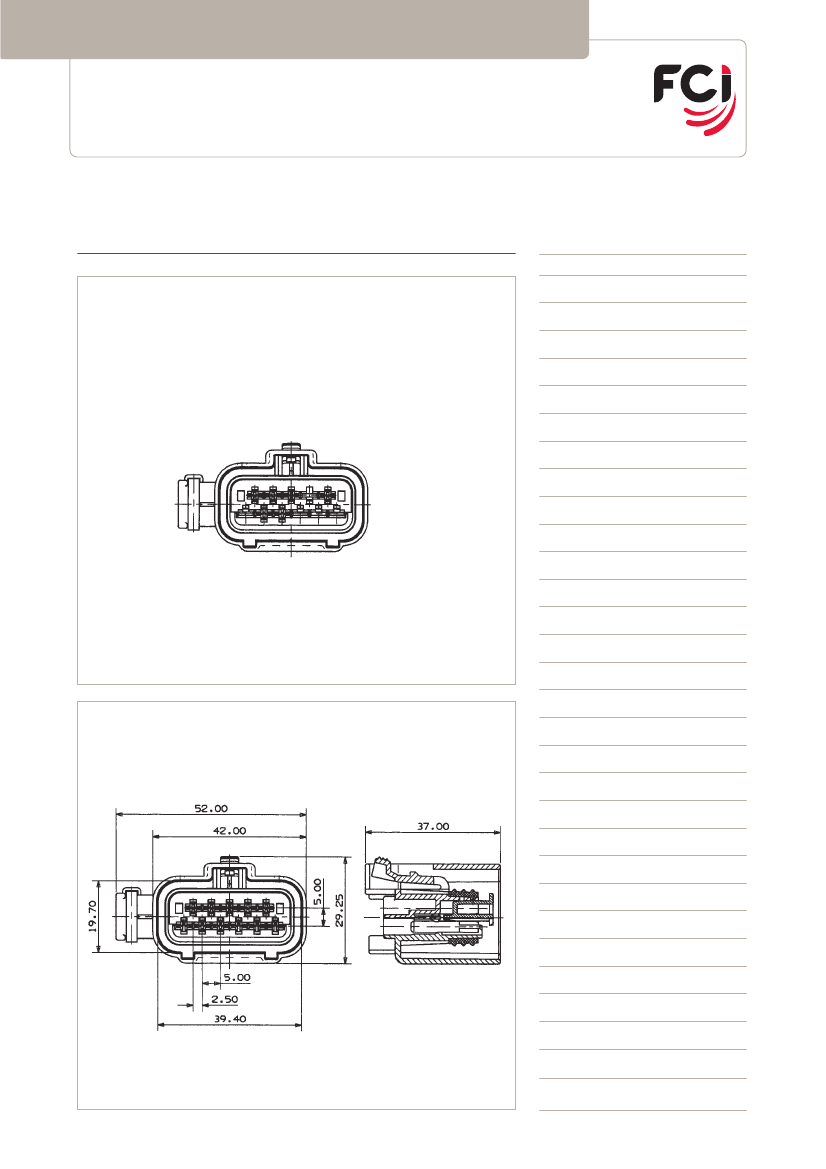

Dimensional characteristics
Notes:
6 way housing
11 way housing
6.51
